Biamp 920-02277-00001 EasyConnect MPX 250 DC

Product Overview

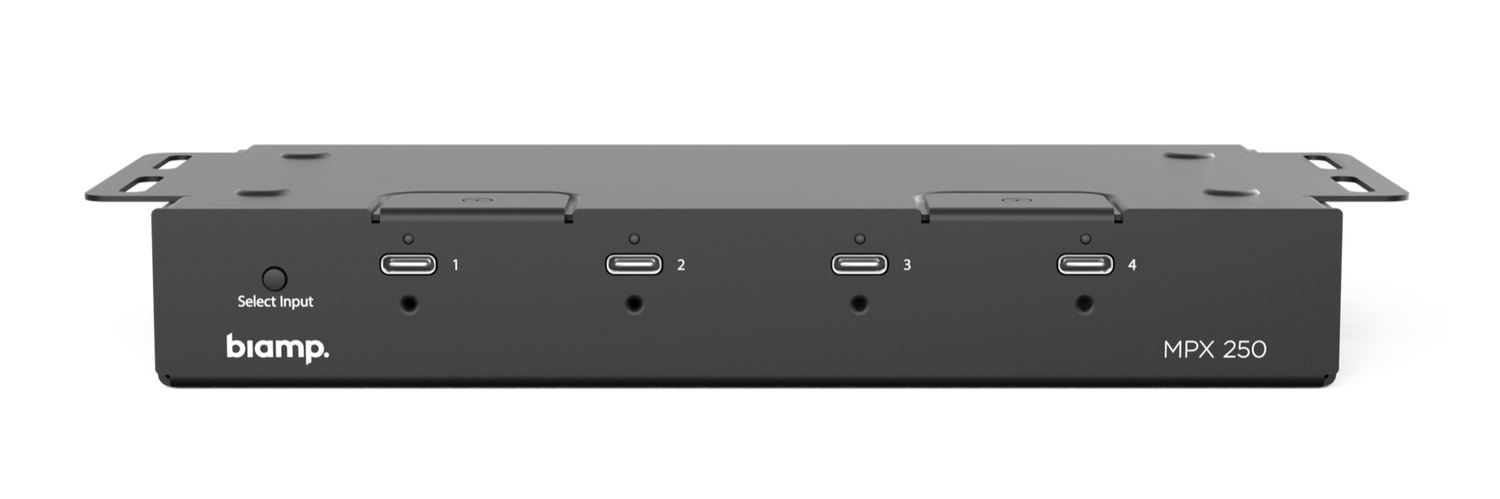

The Biamp EasyConnect MPX 250 DC is a table-side multi-unit direct connection hub that expands an EasyConnect MPX 250 BYOM room into a larger, multi-position collaboration space. It links up to four MPX 250 units together so a single meeting room can support more laptops, more displays, and more shared peripherals. As a USB-C collaboration hub, it lets participants connect one cable to reach the room's display, camera, microphone, and speakers. It is part of the Biamp EasyConnect connectivity range for meeting rooms.

Product Description

The MPX 250 DC is designed for rooms that have outgrown a single connection point. It provides distributed connectivity across multiple MPX 250 units so that as a meeting space grows, integrators can add positions without re-cabling the room. Each MPX 250 lets a user connect a laptop over USB-C and instantly access the room's AV peripherals, and the DC hub ties those units together into one system. The hub supports dual video output up to 8K at 60 Hz through an MST configuration, extending the desktop on Windows and mirroring on macOS. USB pass-through carries both USB-A and USB-C device connectivity across connected units, and network connectivity can be shared across all linked MPX 250 units so every seat has internet access. Intelligent power management delivers up to 100 W per unit for device charging over the same USB-C connection used for AV. The kit ships with the connection hub, a dedicated 200 W power supply, and four USB-C to USB-C cables, so it is ready to deploy out of the box. The MPX 250 DC is used together with the EasyConnect MPX 250, which is sold separately, and pairs well with in-room control such as the Impera Echo control pad and cabling accessories like the EasyConnect HDMI4k-6 cable. Because scaling happens through the hub rather than a new install, the MPX 250 DC suits rooms expected to change layout or capacity over time.

Key Features

• Multi-unit expansion — Connects up to four MPX 250 units so a single room can support up to 16 connected devices.
• Single-cable connectivity — Each connected MPX 250 lets a user reach the room display, camera, microphone, and speakers over one USB-C cable.
• Dual display support — Drives dual video output up to 8K at 60 Hz using an MST hub, extending on Windows and mirroring on macOS.
• Device charging — Intelligent power distribution delivers up to 100 W per unit to charge laptops over the USB-C connection.
• Shared networking — Internet connectivity is shared across all connected MPX 250 units for consistent access at every position.
• Ready to deploy — Ships with the hub, a 200 W power supply, and four 6.6 ft (2 m) USB-C to USB-C cables.
• Three-year warranty — CE marked and RoHS compliant with three years of warranty coverage.

Typical Applications

• Conference room
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Specifications sourced from the Biamp EasyConnect MPX 250 DC data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Does the MPX 250 DC work on its own?
No. It is a connection hub used together with the EasyConnect MPX 250, which is sold separately.

How many units and devices can it support?
It connects up to four MPX 250 units and supports up to 16 connected devices in a single configuration.

Can it drive two displays?
Yes. It supports dual video output up to 8K at 60 Hz using an MST hub, extending the desktop on Windows and mirroring on macOS.

How much charging power does it provide?
Intelligent power distribution supplies up to 100 W per unit to charge a connected laptop over USB-C.

What is included in the box?
The hub, a 200 W (20 V / 10 A) power supply, and four 6.6 ft (2 m) USB-C to USB-C cables.

What warranty applies?
The MPX 250 DC is CE marked, RoHS compliant, and covered by a three-year warranty. Contact Creation Networks for integration guidance.
