Biamp 920-02270-00001 EasyConnect MPX 250

Product Overview

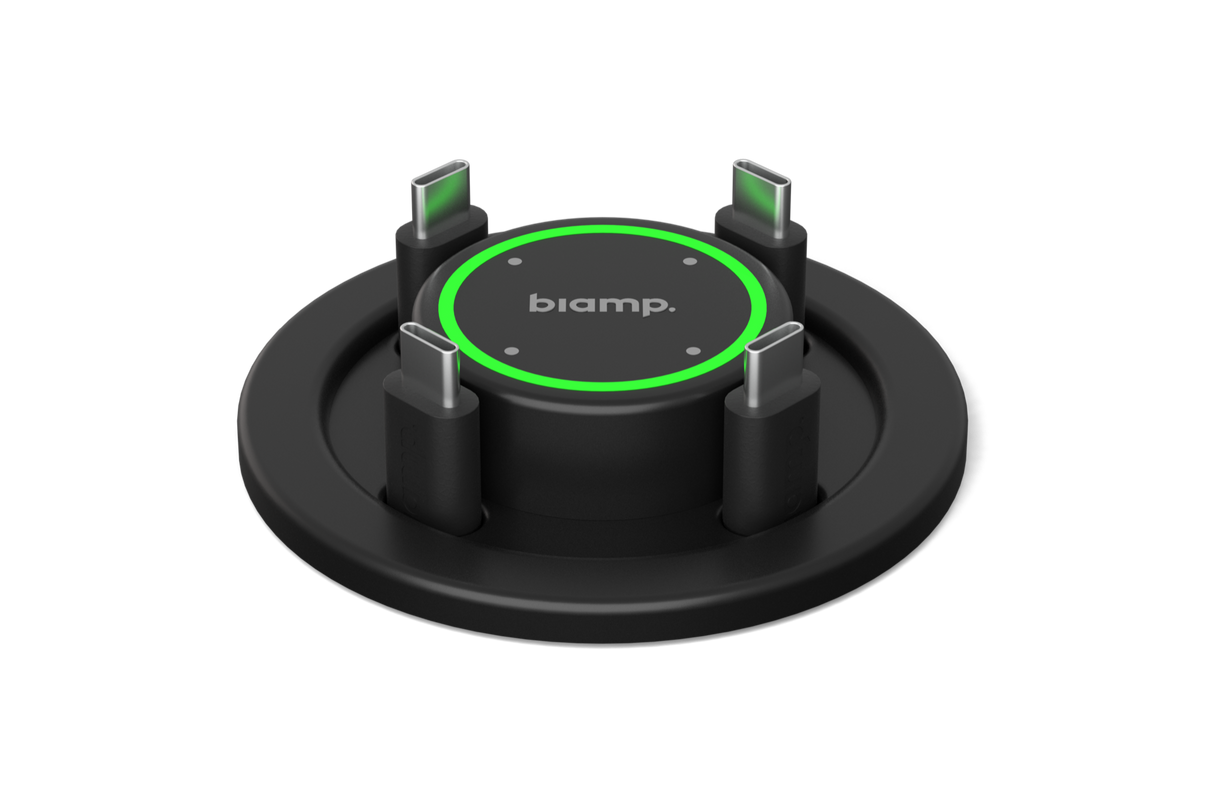

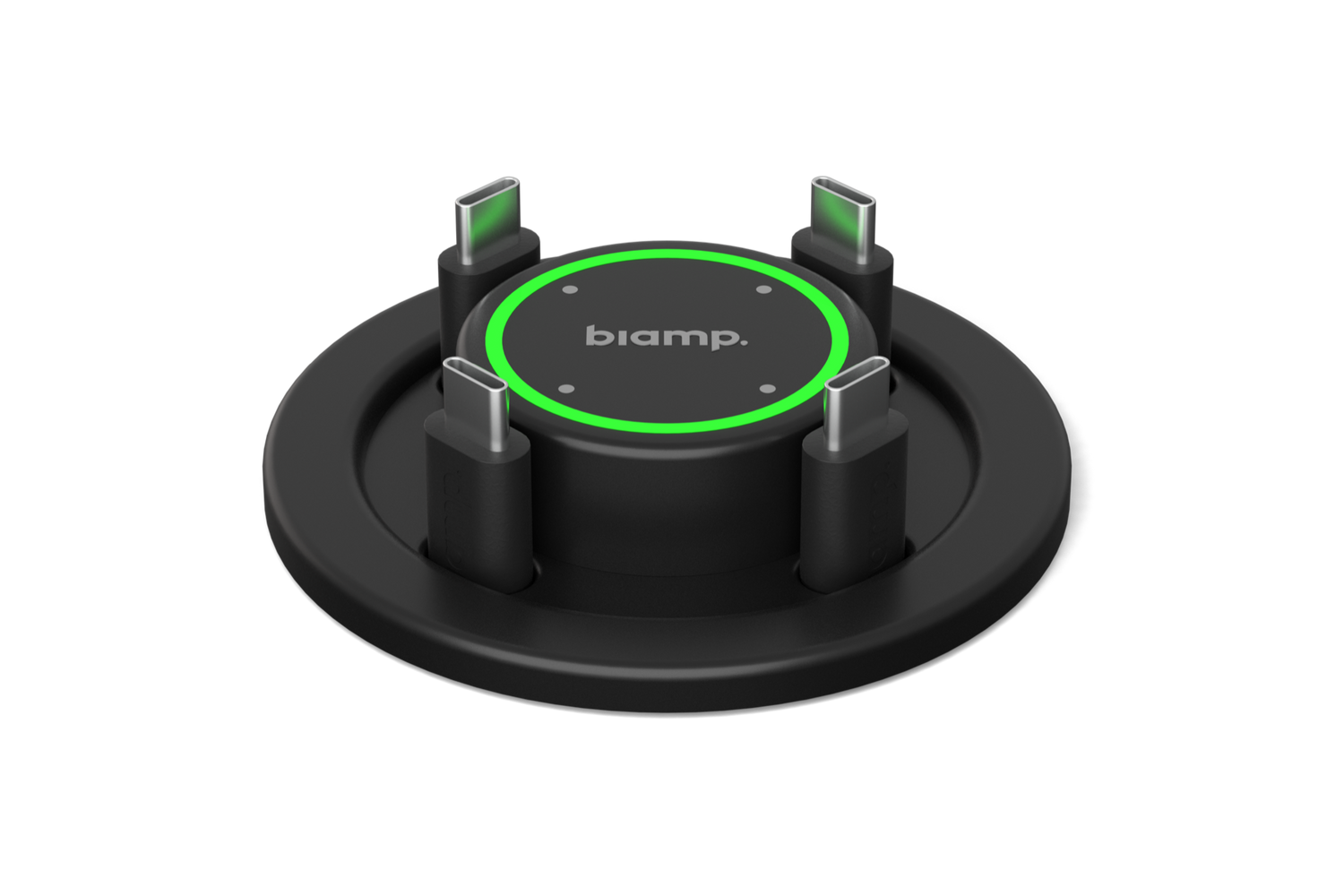

The Biamp EasyConnect MPX 250 is an all-in-one BYOM connectivity hub that simplifies bring-your-own-meeting AV in conference rooms and collaboration spaces. With a single USB-C cable, a user connects a laptop to the room's display, camera, microphone, and speakers while charging the device, which removes the cable clutter that slows down meetings. It supports dual displays and shared network connectivity, making it a practical table or credenza hub for modern huddle and meeting rooms. The MPX 250 scales from a single room to multi-unit deployments for larger spaces.

Product Description

The EasyConnect MPX 250 centralizes room connectivity so participants can walk in, plug in one USB-C cable, and immediately share to the room's AV system. It supports dual video output up to 8K at 60Hz, giving integrators headroom for high-resolution displays and dual-screen layouts in conference rooms and boardrooms. A single USB-C connection carries video, audio, camera, and up to 100W of device charging, so laptops stay powered during long meetings without a separate adapter. The hub allows up to four laptops or devices to connect over USB-C, and it can share the room's network connection to those devices where allowed by IT policy. For larger or divisible spaces, up to four MPX 250 units can be linked to support as many as sixteen connected devices, extending BYOM connectivity across a wider footprint. A dedicated 200W (20V / 10A) power supply drives the charging and connectivity features, and integrated cable management keeps the installation tidy on the table or in the credenza. As part of the Biamp EasyConnect family, the MPX 250 complements Biamp DSPs, conferencing microphones, and cabling; browse compatible room hardware in the Biamp collection at Creation Networks.

Key Features

• Single-cable BYOM connectivity — One USB-C cable connects a laptop to the room's display, camera, microphone, and speakers.
• Dual display output — The hub supports dual video output up to 8K at 60Hz for high-resolution and multi-screen layouts.
• 100W USB-C charging — The USB-C connection delivers up to 100W of charging so devices stay powered during meetings.
• Up to four devices — As many as four laptops or devices can connect via USB-C, with optional shared network connectivity.
• Multi-unit scalability — Up to four MPX 250 units link together to support as many as sixteen connected devices.
• Dedicated power supply — A 200W (20V / 10A) power supply drives charging and connectivity across the hub.
• Integrated cable management — Built-in cable management keeps the table or credenza installation clean.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications sourced from Biamp EasyConnect MPX 250 documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What does the MPX 250 do?
It is a BYOM connectivity hub that connects a laptop to the room's display, camera, microphone, and speakers over a single USB-C cable while charging the device.

What display resolution does it support?
It supports dual video output up to 8K at 60Hz for high-resolution and dual-screen configurations.

How much charging power does it provide?
The USB-C connection provides up to 100W of charging to keep laptops powered during meetings.

Can I connect more than one device or room?
Yes. Up to four devices can connect via USB-C, and up to four MPX 250 units can be linked to support as many as sixteen connected devices.

How does it integrate into a room AV system?
The hub connects room peripherals and displays to the user's device and works alongside Biamp DSPs, microphones, and cameras for a complete meeting space.

What warranty and support are included?
The MPX 250 is CE marked and RoHS compliant with three-year warranty coverage; contact Creation Networks for integration support.
