Biamp 910-01564 CMAR8T-W

Product Overview

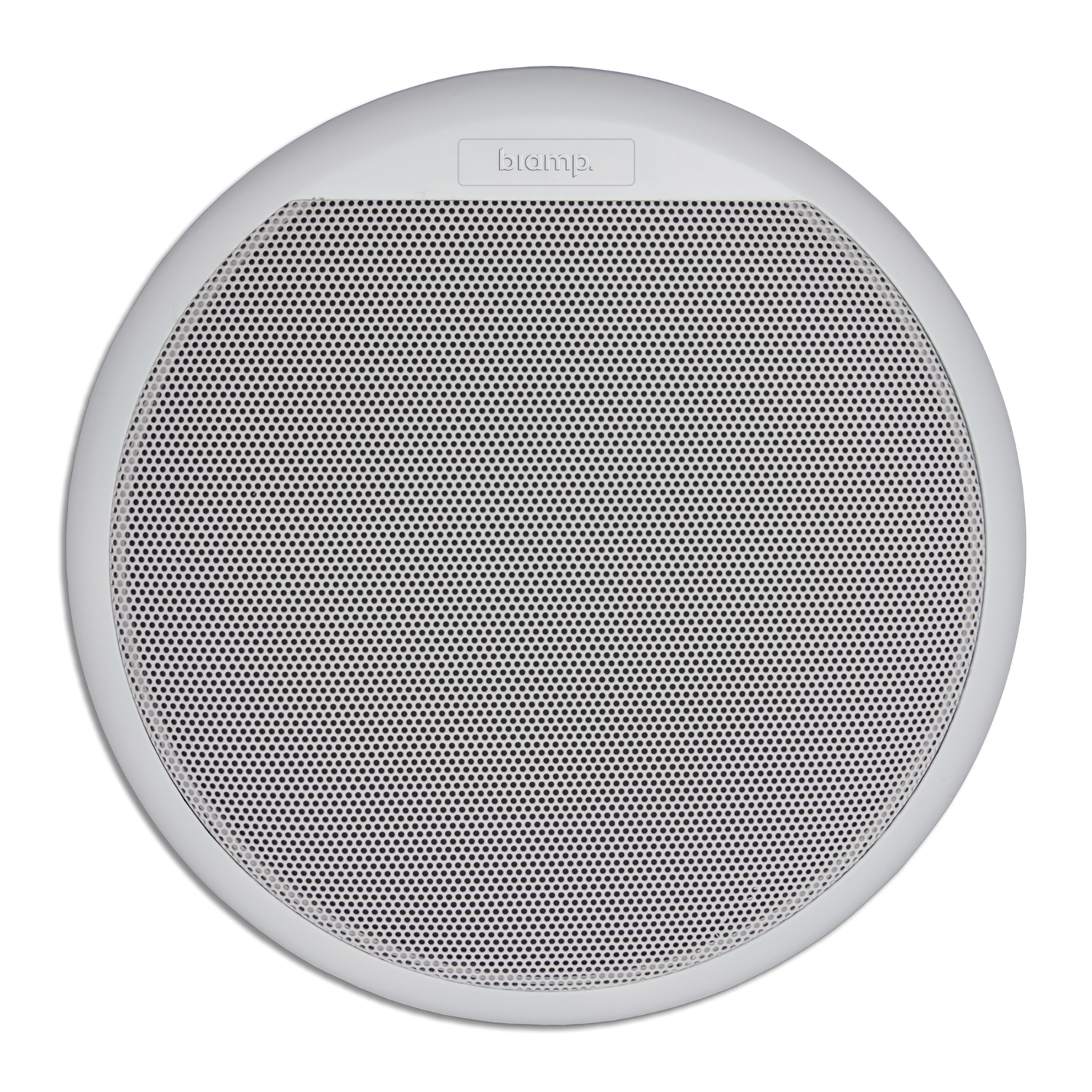

The Biamp CMAR8T-W is an 8-inch two-way marine loudspeaker with an onboard 70V/100V transformer, built for humid and wet environments running on distributed audio. The sealed plastic housing and stainless steel grille resist chlorine and salt water, so this marine loudspeaker performs reliably in covered pools, spas, coastal venues, and sheltered outdoor areas that need higher output. The integrated transformer lets integrators tap the speaker onto a 70V or 100V line so a single amplifier can drive many units across a large area. The white finish suits light-colored ceilings and walls.

Product Description

The CMAR8T-W is the highest-output transformer model in Biamp's CMAR marine loudspeaker family, combining an 8-inch woofer and 1-inch tweeter with a built-in distribution transformer. On a 70V or 100V line, many speakers share one amplifier over long cable runs with minimal loss, the standard method for background music and paging across pool halls, wellness facilities, and covered event spaces. The corrosion-resistant enclosure is rated for continuous operation in hot, humid conditions up to 95 degrees Celsius. In low-impedance mode the speaker presents an 8-ohm load rated at 100 W, giving integrators flexibility between constant-voltage and direct amplifier connection.

Selectable transformer taps let integrators set loudness per speaker while managing the amplifier budget for the zone. The 100V taps provide 20, 10, and 5 W settings, and the 70V taps add a 2.5 W option, so a single model covers a wide range of coverage requirements. The 8-inch format covers wider areas per unit, reducing the total speaker count in large rooms. For smaller rooms wired to a standard amplifier channel, the low-impedance CMAR8-W model is the direct alternative, and mid-size zones can use the CMAR6T-W. See the full Biamp collection for matching amplifiers.

Key Features

• Integrated 70V/100V Transformer — The onboard transformer taps directly onto a constant-voltage line so one amplifier can power many units across a large area.
• Selectable Power Taps — The 100V taps offer 20, 10, and 5 W settings and the 70V taps add a 2.5 W option, covering a wide range of coverage needs from one model.
• Marine-Grade Construction — The sealed plastic housing and stainless steel grille resist chlorine and salt water for reliable pool, spa, and coastal installations.
• Dual-Mode Operation — The speaker runs on 70V/100V distributed lines or connects as an 8-ohm low-impedance load rated at 100 W.
• White Finish — The white housing and grille blend into light-colored surfaces without additional painting.

Technical Specifications

Specifications sourced from Biamp CMAR8T-W product documentation. Confirm detailed specifications against current Biamp documentation.
