Biamp 910-01562 CMAR6T-W

Product Overview

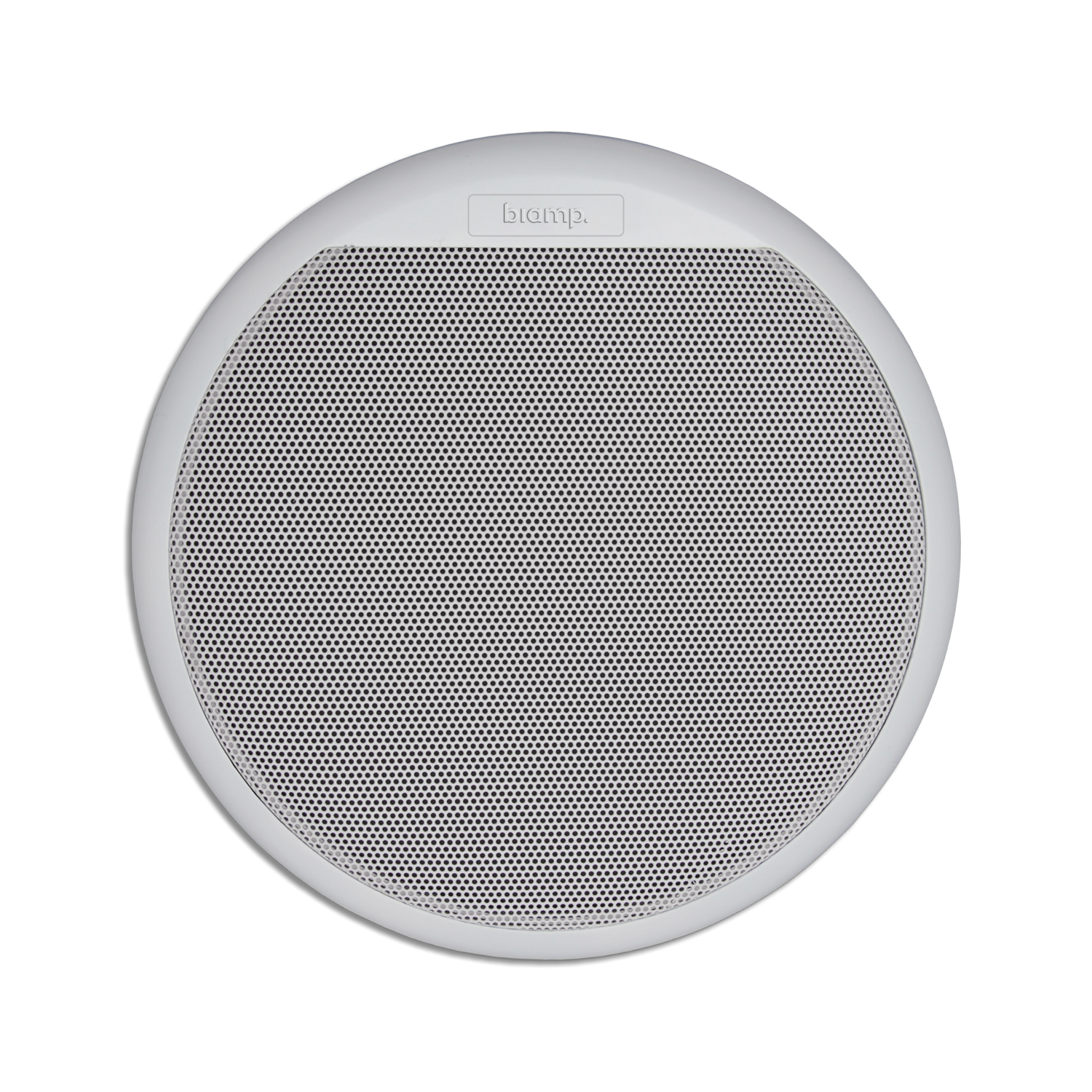

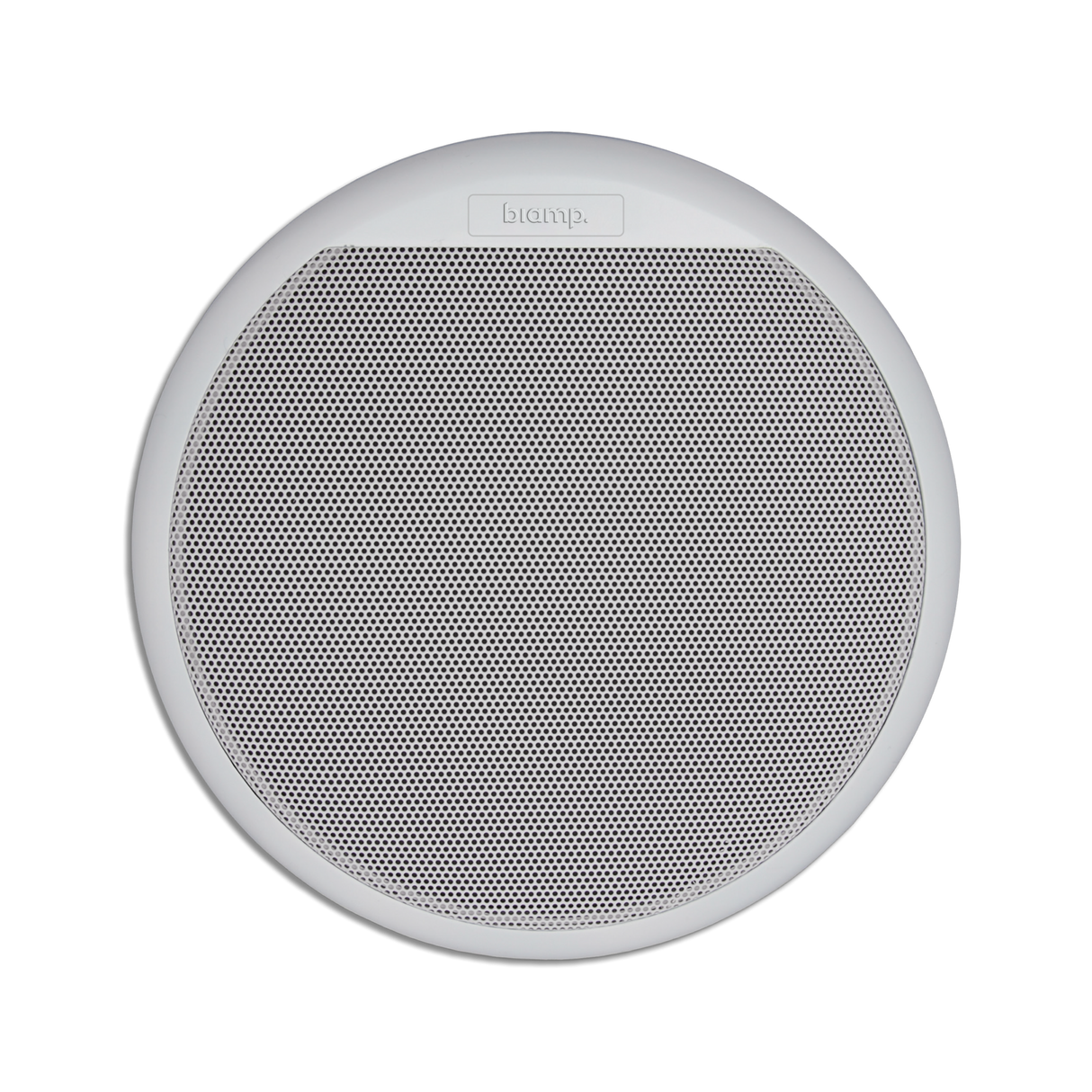

The Biamp CMAR6T-W is a 6.5-inch two-way marine loudspeaker with an onboard 70V/100V transformer, built for humid and wet environments running on distributed audio. The sealed plastic housing and stainless steel grille resist chlorine and salt water, so this marine loudspeaker performs reliably in covered pools, spas, locker rooms, and sheltered outdoor areas. The integrated transformer lets integrators tap the speaker onto a 70V or 100V line so a single amplifier can drive many units across a large area. The white finish suits light-colored ceilings and walls.

Product Description

The CMAR6T-W is the transformer-equipped version of the CMAR6 marine loudspeaker, intended for commercial installations that use a constant-voltage distribution loudspeaker layout. On a 70V or 100V line, many speakers share one amplifier over long cable runs with minimal loss, which is the standard method for background music and paging across pool decks, wellness facilities, and covered walkways. The two-way driver reproduces clear speech and music, and the corrosion-resistant enclosure is rated for continuous operation in hot, humid conditions up to 95 degrees Celsius. In low-impedance mode the speaker presents an 8-ohm load with 60 W power handling, and its 100V tap is rated at 20 W.

The 6.5-inch format balances coverage against enclosure size, making it a practical middle option for medium humid-environment zones on distributed audio. Selectable transformer taps let integrators set loudness per speaker while managing the amplifier budget for the zone. For smaller rooms wired to a standard amplifier channel, the low-impedance CMAR6-W model is the direct alternative, and larger areas can move up to the CMAR8T-W. See the full Biamp collection for matching amplifiers.

Key Features

• Integrated 70V/100V Transformer — The onboard transformer taps directly onto a constant-voltage line so one amplifier can power many units across a large area.
• Marine-Grade Construction — The sealed plastic housing and stainless steel grille resist chlorine and salt water for reliable pool, spa, and coastal installations.
• High-Temperature Rating — The loudspeaker is rated for continuous operation in hot, humid environments up to 95 degrees Celsius.
• Dual-Mode Operation — The speaker runs on 70V/100V distributed lines or connects as an 8-ohm low-impedance load with 60 W power handling.
• White Finish — The white housing and grille blend into light-colored surfaces without additional painting.

Technical Specifications

Specifications sourced from Biamp CMAR6T-W product documentation. Confirm full transformer tap values and detailed specifications against current Biamp documentation.
