Biamp 910-00148 H30LT-G Grey
Biamp 910-00148 H30LT-G Grey is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

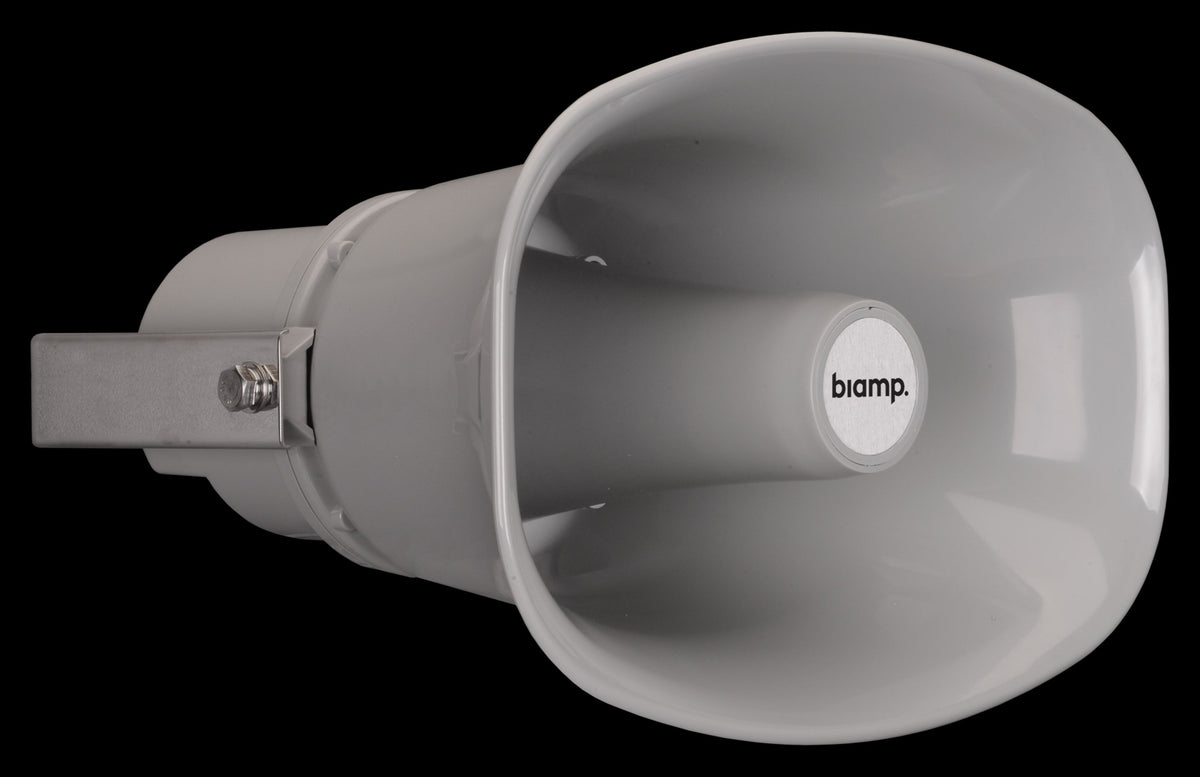

Biamp 910-00148 H30LT-G Grey
Product Overview
The Biamp H30LT-G is a long-throw compression horn loudspeaker built for high-intelligibility voice paging and signal projection across large, noisy, or outdoor areas. Its IP66-rated weatherproof housing makes this horn loudspeaker suitable for warehouses, transport hubs, stadiums, parking structures, and industrial sites exposed to dust and water. The onboard transformer supports 70V and 100V distributed audio as well as 8-ohm low-impedance operation, so it drops into most commercial paging systems. The grey finish suits utilitarian and outdoor installations.
Product Description
The H30LT-G is engineered for long-range voice paging where announcements must carry over distance and ambient noise. Its 60-degree horizontal by 75-degree vertical dispersion focuses output down a defined coverage pattern, and a maximum SPL of 121 dB at one meter provides the headroom needed to stay above machinery and crowd noise. The 450 Hz to 9.6 kHz operating range is tuned for speech intelligibility rather than full-range music, which is exactly what mass notification and paging applications require. The compression driver reaches 106 dB sensitivity at one watt and one meter.
The integrated transformer offers multiple power taps for both 70.7V and 100V distributed audio lines, letting integrators set loudness per horn while balancing the total amplifier load. In low-impedance mode the driver presents an 8-ohm load rated at 45 W dynamic and 30 W continuous. The included U-bracket rotates the horn more than 180 degrees for precise aiming after mounting, and the IP66 rating means it survives direct rain and washdown. This grey model joins the H-series of horn and projector loudspeakers; for lower-output zones, compare the H10-G and H20-G. Browse the full Biamp collection for compatible amplifiers.
Key Features
- Long-Throw Projection — The compression horn delivers a maximum SPL of 121 dB at one meter to carry paging announcements over long distances and high ambient noise.
- IP66 Weatherproof Housing — The enclosure resists dust and powerful water jets, making the horn suitable for outdoor, industrial, and washdown environments.
- Speech-Tuned Response — The 450 Hz to 9.6 kHz operating range prioritizes voice intelligibility for paging and mass notification.
- Flexible Powering — The onboard transformer supports 70.7V and 100V distributed lines plus 8-ohm low-impedance operation for compatibility with most paging systems.
- Adjustable U-Bracket — The included bracket rotates the horn more than 180 degrees for precise aiming after installation.
Technical Specifications
| Model / SKU | H30LT-G (910-00148) |
| Type | Long-throw compression horn loudspeaker |
| Frequency Response | 450 Hz - 9.6 kHz |
| Operating Mode | 70.7V / 100V transformer or 8-ohm low impedance |
| Low-Impedance Power | 45 W dynamic / 30 W continuous (8 ohms) |
| 70.7V Taps | 30 / 15 / 7.5 / 3.75 / 1.87 W |
| 100V Taps | 30 / 15 / 7.5 / 3.75 W |
| Sensitivity | 106 dB (1 W / 1 m) |
| Maximum SPL | 121 dB at 1 m |
| Nominal Dispersion | 60 degrees H x 75 degrees V |
| Dimensions | 207 mm H x 286 mm W x 288 mm D |
| Weight | 2.2 kg (4.85 lb) |
| Ingress Protection | IP66 |
| Finish | Grey |
Specifications sourced from Biamp H30LT-G product documentation. Confirm detailed specifications against current Biamp documentation.
