Biamp 910-00146 H10-G Grey

Product Overview

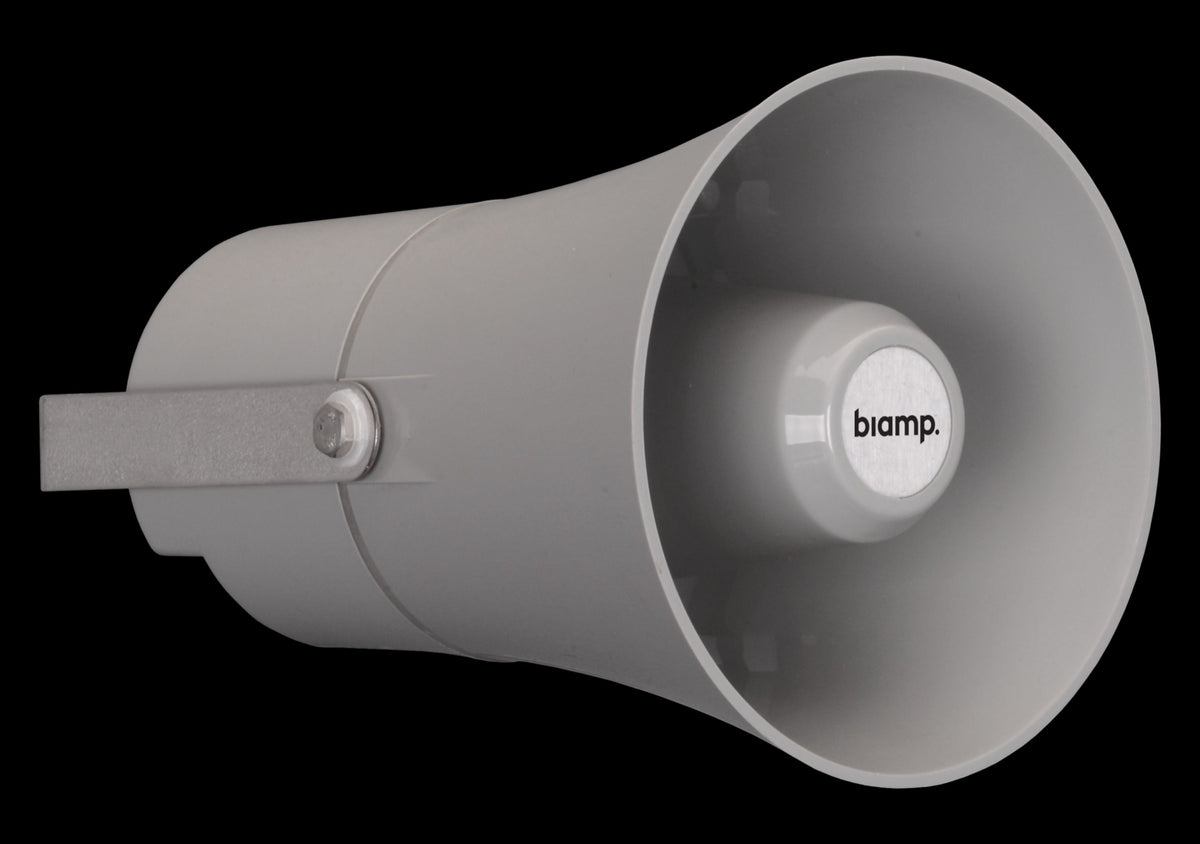

The Biamp H10-G is a compact compression horn loudspeaker for voice paging and signal applications in 70.7V and 100V distributed audio systems. Built around a 1.4-inch exit compression driver in a weather-resistant ABS horn, it delivers clear midrange output for announcements and alerts. Its IP66 rating and stainless steel U-bracket make it suitable for outdoor and exposed commercial installations. The grey finish blends with typical building exteriors.

Product Description

The H10-G is a voice-and-signal horn designed for intelligible paging in demanding indoor and outdoor environments. It uses a 1.4-inch (36 mm) exit compression driver mounted in a high-impact ABS horn with an integral weather-resistant cover and a weather-resistant fitting for the integrated cable, and it exceeds IEC60529 IP66 ratings for dust and water resistance. The attached stainless steel U-bracket with stainless hardware allows horn rotation of more than 180 degrees for precise aiming, and the loudspeaker and bracket are finished in RAL9006 grey. The system operates from 530 Hz to 6.5 kHz in full space, which is well matched to speech intelligibility, and it can be driven either as an 8-ohm low-impedance load (rated 9 V input) or through its built-in 10 W transformer on 70.7V and 100V lines. Tap options are 10, 5, 2.5, 1.25, and 0.625 W on 70.7V systems and 10, 5, 2.5, and 1.25 W on 100V systems, giving integrators fine control over level across a distributed line. On-axis sensitivity is 104 dB at one meter with one watt, and nominal dispersion is 135 degrees horizontal by 135 degrees vertical. The H10-G pairs well with the higher-output H20-G and the long-throw MPLT62-G in mixed-coverage paging designs; browse the full Biamp collection for amplifiers and companion loudspeakers.

Key Features

• Compression Driver Horn — A 1.4-inch exit compression driver in an ABS horn delivers clear midrange output tuned for voice paging and signaling.
• 70.7V / 100V Multi-Tap Transformer — A built-in 10 W transformer offers taps of 10/5/2.5/1.25/0.625 W (70.7V) and 10/5/2.5/1.25 W (100V) for distributed lines.
• 8-Ohm Capable — The horn can also be driven as an 8-ohm low-impedance load rated at 9 V input.
• IP66 Weather Resistance — The high-impact ABS enclosure exceeds IEC60529 IP66 ratings for outdoor and exposed installations.
• Adjustable Stainless Bracket — The stainless steel U-bracket allows more than 180 degrees of horn rotation for precise aiming.
• Wide Dispersion — Nominal coverage of 135 degrees by 135 degrees with 104 dB on-axis sensitivity (1 W / 1 m) supports broad-area paging.

Technical Specifications

Source: Biamp H10-G A&E specifications (downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.
