Biamp 910-00147 H20-G Grey
Product Overview

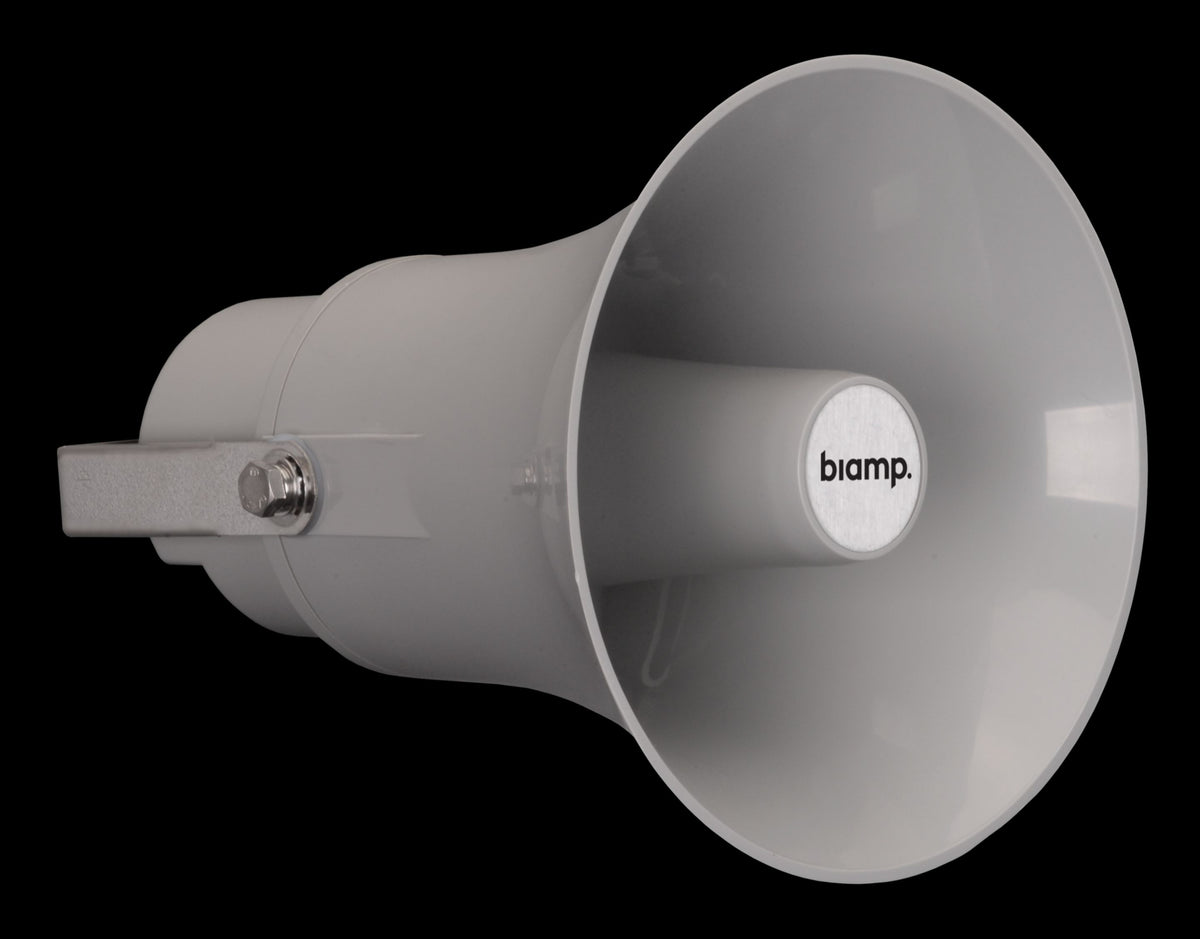

The Biamp H20-G is a powerful compression horn loudspeaker for voice and music paging in 100V distributed audio systems. It combines a compression driver with a multi-tap 100V transformer and is certified to EN 54-24, making it suitable for demanding commercial paging and announcement duty. Its IP66-rated ABS enclosure and stainless steel bracket support outdoor and exposed installations. The grey finish blends with typical building exteriors and structures.
Product Description
The H20-G is a higher-output member of Biamp's commercial horn loudspeaker range, built for clear projection of voice and music across large indoor and outdoor areas. It is equipped with a compression driver and a multi-tap 100V transformer with power taps at 20, 10, 5, and 2.5 watts, so integrators can allocate level precisely across a distributed line, and it can also be used in 8-ohm low-impedance systems. The loudspeaker is rated at 20 watts RMS with 30 watts of low-impedance dynamic power, and it reproduces a frequency range of 280 Hz to 9.5 kHz for intelligible speech and program audio. The enclosure is UV- and impact-resistant ABS with a stainless steel bracket, and the assembly carries an IP66 weather rating for reliable operation in exposed and outdoor locations. Certification to EN 54-24 makes it appropriate for voice alarm and announcement systems where that standard is required. The H20-G works alongside the compact H10-G and the long-throw MPLT62-G in tiered coverage designs; browse the full Biamp collection for amplifiers and companion loudspeakers. Confirm detailed specifications against current Biamp documentation before finalizing a design.
Key Features
- Compression Driver Horn — A compression driver delivers high-output, intelligible voice and music projection for commercial paging.
- 100V Multi-Tap Transformer — Power taps at 20/10/5/2.5 W let integrators set level accurately across a 100V distributed line.
- 8-Ohm Capable — The horn can also be used in 8-ohm low-impedance systems, with 30 W of dynamic power handling.
- EN 54-24 Certified — Certification to EN 54-24 makes it suitable for voice alarm and announcement applications where required.
- IP66 Weather Resistance — The UV- and impact-resistant ABS enclosure with stainless bracket is rated IP66 for outdoor and exposed installations.
- Wide Frequency Range — A 280 Hz to 9.5 kHz response supports both speech and program music content.
Technical Specifications
| Model / SKU | H20-G / 910-00147 |
| Type | Compression driver horn loudspeaker |
| RMS Power | 20 W |
| Low-Impedance Dynamic Power | 30 W (8 Ω) |
| 100V Taps | 20 / 10 / 5 / 2.5 W |
| Frequency Response | 280 Hz – 9.5 kHz |
| Enclosure / Weather Rating | UV- and impact-resistant ABS, IP66 |
| Bracket | Stainless steel |
| Certification | EN 54-24 |
| Color | Grey |
Source: Biamp H20-G product information (biamp.com). Confirm detailed specifications against current Biamp documentation.
