Biamp 901.0307 Tesira DSP-2

Product Overview

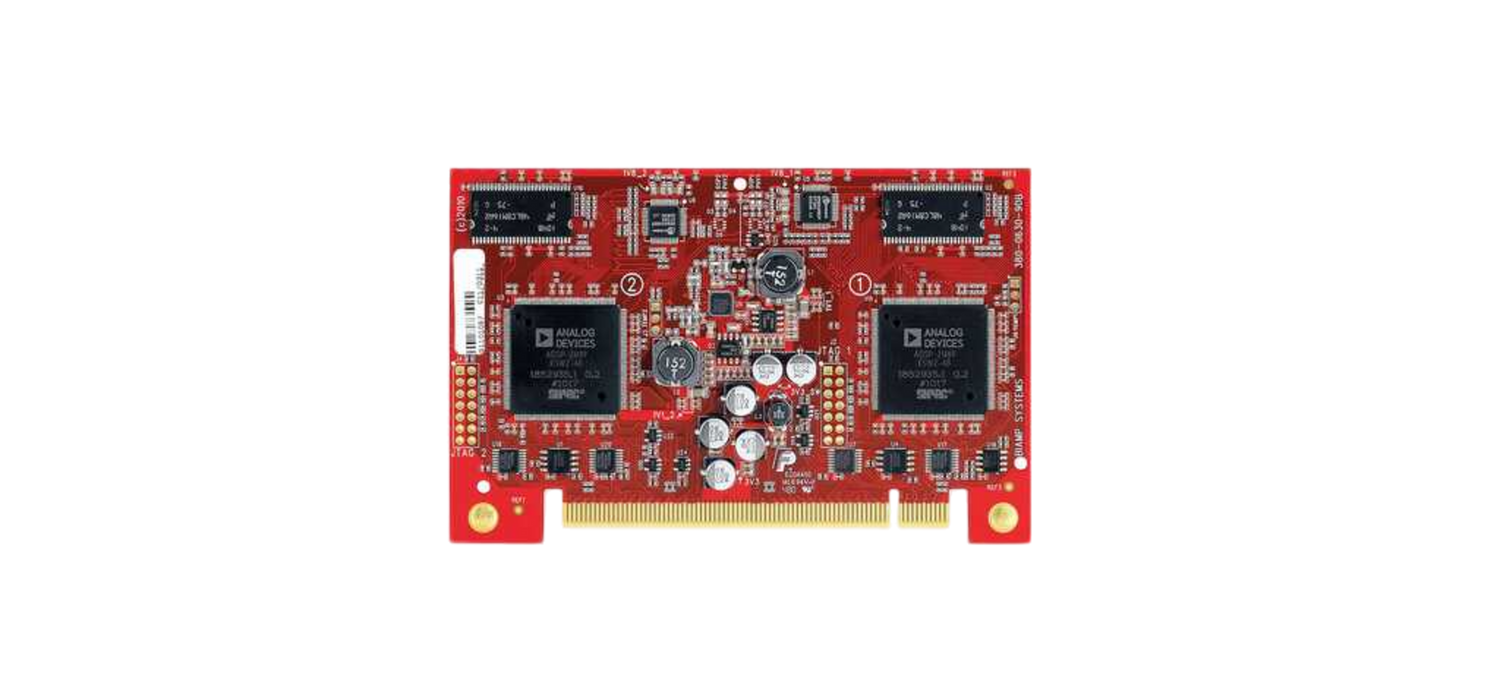

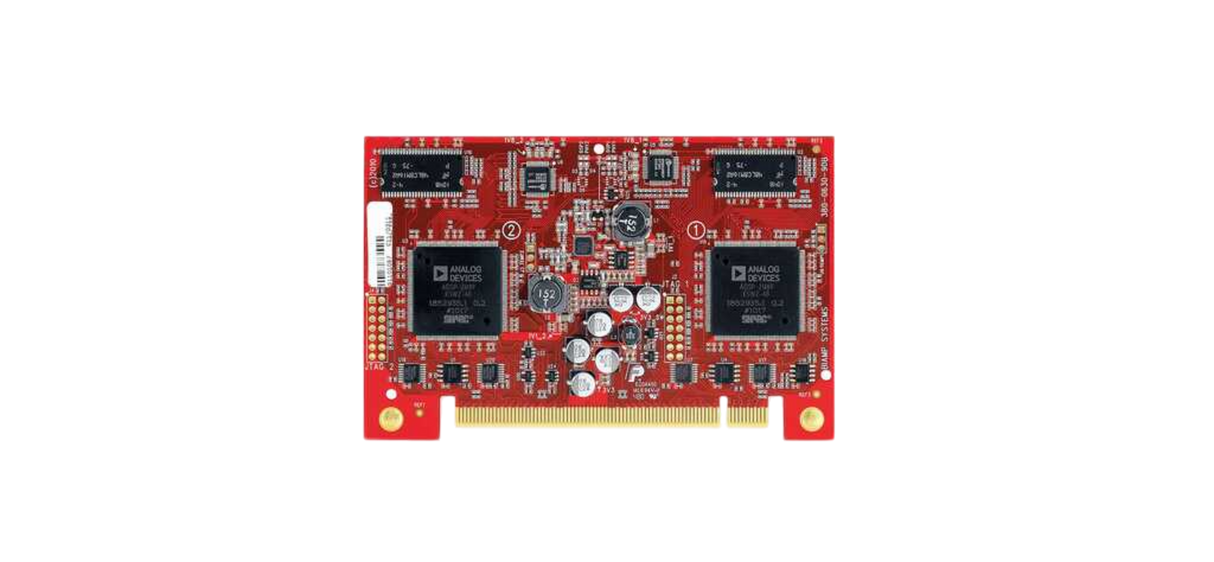

The Biamp Tesira DSP-2 is a modular digital signal processing card that adds processing power to a Tesira SERVER or SERVER-IO device. It is the field-installable DSP card integrators specify when a growing commercial audio system needs more processing headroom for mixing, conferencing, and signal routing. Each DSP-2 card contributes additional processors that are managed entirely in Tesira software. This Tesira DSP processing card can be added at the Biamp factory or in the field as system requirements expand.

Product Description

The DSP-2 provides digital signal processing capacity to Tesira systems, allowing large designs to scale as channel counts and processing demands increase. Each card carries two processors, and Tesira software allocates DSP resources across the system so the designer can build the required mix, gain, filtering, and conferencing structures. A Tesira SERVER accommodates up to eight DSP-2 cards, while a SERVER-IO supports up to three, giving integrators a clear path to expand processing without replacing the chassis. Because cards can be added in the field, an installation can start with the processing it needs today and grow later. The DSP-2 fits AV system integration projects in boardrooms, auditoriums, and multi-room commercial buildings where processing requirements are difficult to predict at the design stage. The card incorporates AES48-2005 grounding and EMC practices and is RoHS compliant. It carries Biamp's 5-year warranty. Combine it with input and output cards such as the Tesira SIC-4 and Tesira SOC-4, or browse the full Biamp collection.

Key Features

• Additional DSP Capacity — Each DSP-2 card adds digital signal processing power to a Tesira SERVER or SERVER-IO system.
• Two Processors Per Card — The card provides two processors that contribute to the system's overall processing pool.
• Software-Managed Resources — DSP resources are allocated and managed through Tesira software as the design is built.
• Scalable Expansion — A Tesira SERVER supports up to eight DSP-2 cards and a SERVER-IO supports up to three, allowing processing to grow with the system.
• Factory or Field Installation — Cards can be installed at the Biamp factory or added in the field as processing needs increase.
• Standards Compliant — The card incorporates AES48-2005 grounding and EMC practices and is compliant with the RoHS Directive.
• 5-Year Warranty — The DSP-2 is covered by Biamp Systems' 5-year warranty.

Typical Applications

• Boardroom
• Conference room
• Auditorium
• Multi-purpose room
• Training room
• All-hands room

Technical Specifications

Specifications sourced from the Biamp Tesira DSP-2 datasheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which Tesira devices accept the DSP-2?
The DSP-2 installs in Tesira SERVER and SERVER-IO devices, at the factory or in the field.

How many DSP-2 cards can I install?
A Tesira SERVER supports up to eight DSP-2 cards; a SERVER-IO supports up to three.

How are DSP resources allocated?
Tesira software manages and allocates DSP resources across all installed cards as you build the configuration.

Can I add processing later?
Yes. Because cards can be added in the field, you can expand processing capacity as the system grows.

Does the DSP-2 add inputs or outputs?
No. It adds processing only; analog I/O is provided by input and output cards such as the SIC-4 and SOC-4.

How many processors does each card provide?
Each DSP-2 card provides two processors.

What warranty applies?
Biamp covers the DSP-2 with a 5-year warranty.
