Barco UDX-W40 FLEX 43,000-Lumen WUXGA Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9408980-BU

Product Overview

The Barco UDX-W40 FLEX (R9408980-BU) is a 40,000-lumen WUXGA 3-chip DLP laser phosphor projector supplied with a GSM module and Wi-Fi but no lens, configured for large-venue installation and staging integrators. It produces native 1920 x 1200 (WUXGA) resolution from a laser phosphor light source rated for 20,000 hours, with peak output of 43,000 ISO lumens for bright rooms. The FLEX2 feature lets you tune and lock brightness and resolution to a specific show. A power cord and rugged remote control are included.

Product Description

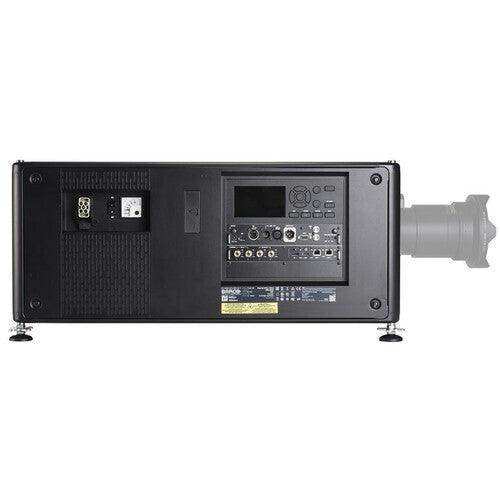

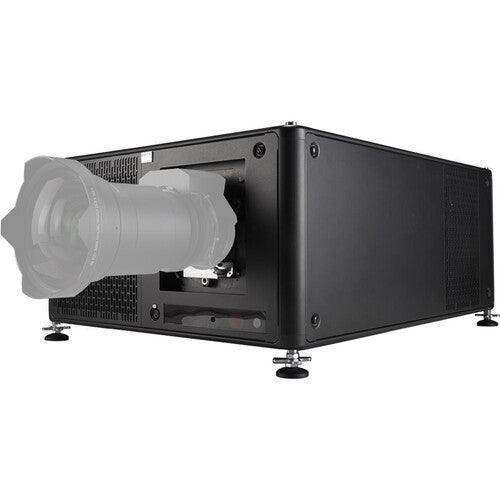

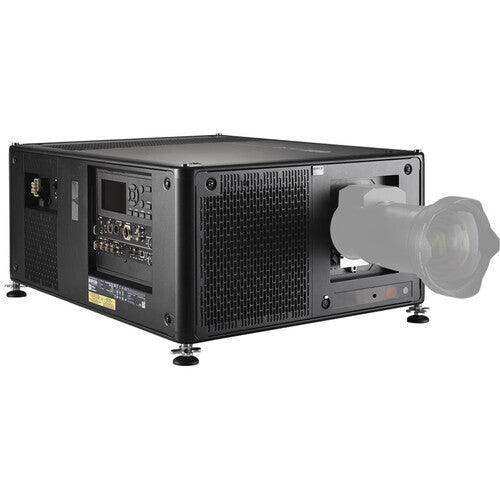

This FLEX no-lens build adds factory GSM and Wi-Fi connectivity to the UDX-W40 engine while leaving lens selection to the integrator, which suits installations that monitor and manage projectors remotely. The product gallery shows the compact, rugged UDX chassis with integrated cooling and modular components that can be removed quickly to limit servicing time. It pairs naturally with the UDX-W40 COMM+LNS when a lens should ship with the unit, or with the UDX-W40 Body Only for a base engine. For rental and touring crews, the UDX-W40 Touring Kit adds a motorized frame, flight case, and accessories. Browse the full Barco collection for compatible TLD+ lenses.

Key Features

• 40,000 Center Lumens — The 3-chip DLP engine delivers 40,000 center lumens, 39,000 ANSI lumens, and 43,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Factory GSM and Wi-Fi — Ships with GSM and Wi-Fi options for remote monitoring and management where available.
• No Lens Included — Select the TLD+ lens that matches your throw distance, from 0.37 up to 7.5-11.5:1.
• Laser Phosphor Light Source — Laser B + R with inorganic phosphor wheel provides a 20,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long operating schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible installation.

Typical Applications

• Auditorium and performing-arts venues
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces
• Broadcast studio projection

Technical Specifications

Frequently Asked Questions

Which lenses fit this projector? The UDX-W40 accepts the Barco TLD+ lens series (sold separately) with throw ratios from 0.37 up to 7.5-11.5:1 and motorized zoom, focus, and lens shift with position memory.

What is included in this FLEX configuration? You receive the UDX-W40 FLEX engine with GSM and Wi-Fi, a power cord, and a rugged remote control; no lens is bundled.

How does the UDX-W40 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What are the power and cooling requirements? The projector draws up to 3750 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 12,795 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W40.
