Barco R9408980-B UDX-W40 40,000-Lumen WUXGA Laser Projector (Body Only)

Product Overview

The Barco UDX-W40 body-only is the 40,000-lumen WUXGA 3-chip DLP laser phosphor projector engine supplied without a lens, intended for integrators who already own TLD+ optics or are specifying lenses separately. It delivers native 1920 x 1200 (WUXGA) resolution from a laser phosphor light source with a 20,000-hour lifetime, making it suited to large auditoriums, houses of worship, and staging applications. The compact chassis includes integrated cooling and supports 360-degree orientation for flexible mounting. A power cord and rugged remote control are included.

Product Description

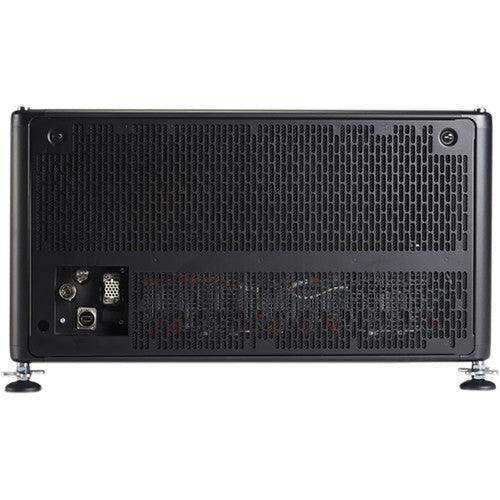

This body-only configuration is the most flexible entry point into the UDX-W40 platform, letting AV integrators pair the engine with the exact TLD+ lens a room requires. The product gallery shows the rugged UDX chassis whose modular components can be removed quickly to limit servicing time. Because no lens is bundled, this build pairs naturally with the UDX-W40 COMM+LNS when a lens is needed up front, or with the UDX-W40 Touring Kit for rental and staging crews. For lower brightness at the same WUXGA resolution, the 32,000-lumen UDX-W32 platform is also available. Browse the full Barco collection for TLD+ lenses, frames, and accessories. The FLEX2 feature lets you tune and lock brightness and resolution to a specific show.

Key Features

• 40,000 Center Lumens — The 3-chip DLP engine delivers 40,000 center lumens, 39,000 ANSI lumens, and 43,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Body Only, No Lens — Ships as the projector engine so you can select the TLD+ lens that matches your throw distance.
• Laser Phosphor Light Source — Laser B + R with inorganic phosphor wheel provides a 20,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long operating schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible installation.
• Networked Control — XLR wired, IR, RS232, DMX 512, plus an integrated web server and Projector Toolset.

Typical Applications

• Auditorium and performing-arts venues
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces
• Broadcast studio projection

Technical Specifications

Frequently Asked Questions

Which lenses fit the UDX-W40 body? The engine accepts the Barco TLD+ lens series (sold separately) with throw ratios from 0.37 up to 7.5-11.5:1 and motorized zoom, focus, and lens shift with position memory.

What is included in the body-only configuration? You receive the UDX-W40 projector engine, a power cord, and a rugged remote control; no lens, frame, or case is bundled.

How does the UDX-W40 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What are the power and cooling requirements? The projector draws up to 3750 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 12,795 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W40.
