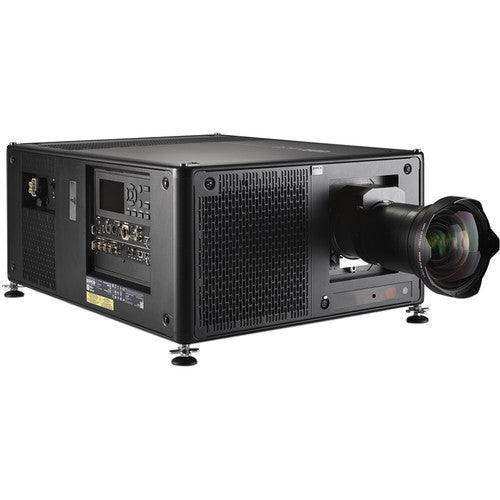

Barco R9408980-BT UDX W40 COMM+TOURING KIT; Body(FLEX)+GSM+WIFI+MTR Frame+FCase+Fiber Input+Camera+Distance Meter+Ext Shutter

Product Overview

The Barco UDX-W40 Touring Kit is a complete rental and staging package built around the 40,000-lumen WUXGA 3-chip DLP laser phosphor projector for large-venue events, concert touring, and live productions. This BT configuration pairs the FLEX projector body with a GSM module, Wi-Fi, a motorized frame, a flight case, a fiber input, a rigging camera, a distance meter, and an external shutter so a road crew can deploy and strike quickly. Native 1920 x 1200 (WUXGA) resolution and Barco's laser phosphor light source deliver bright, color-accurate images with a 20,000-hour light-source lifetime. The kit ships with a power cord and wireless/XLR wired rugged remote control.

Product Description

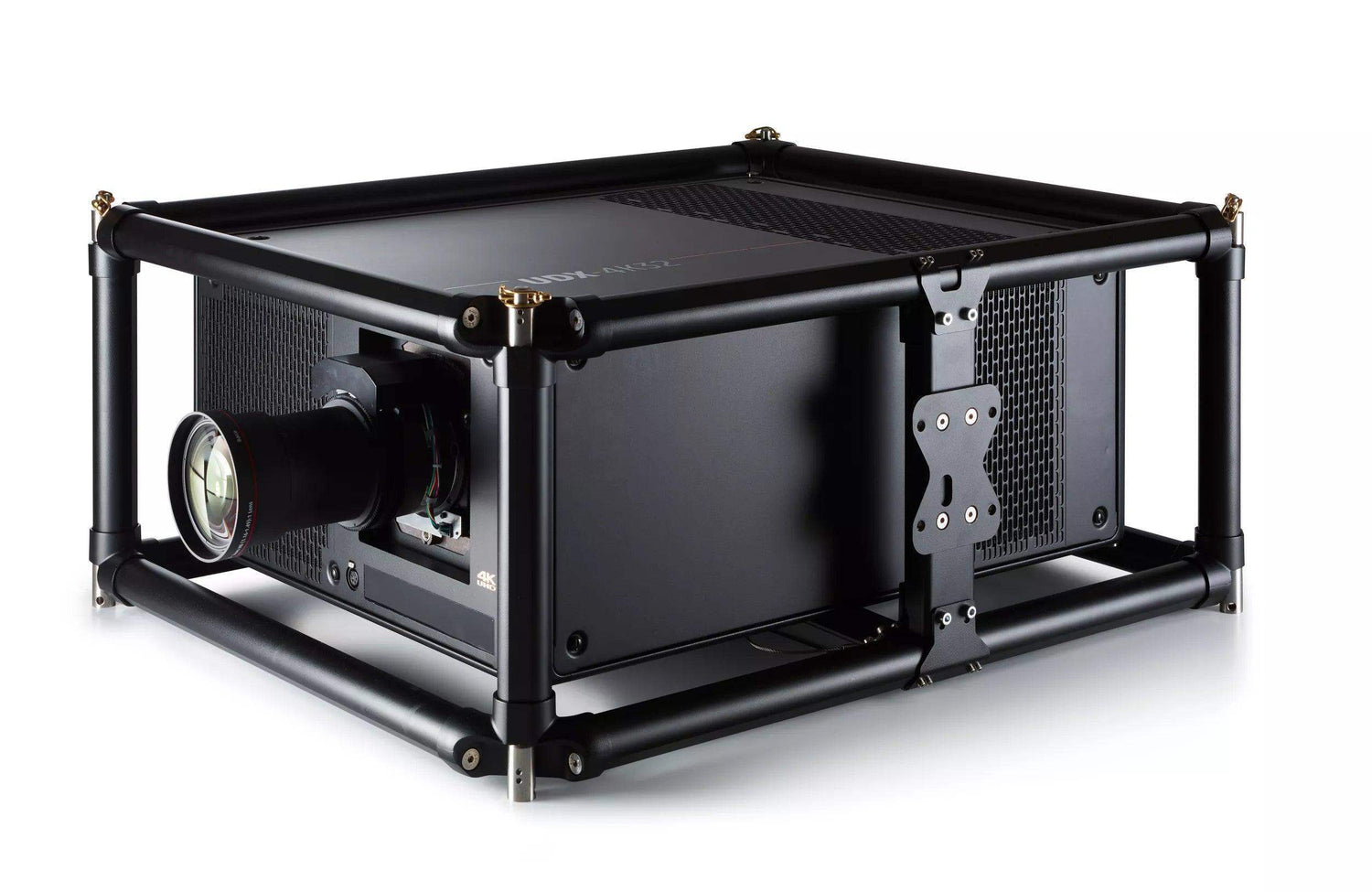

This Touring Kit is the most fully equipped UDX-W40 configuration in our Barco lineup, designed for crews that move a projector between venues and need protective transport and fast rigging built in. The motorized frame and integrated flight case shown in the product gallery let technicians stack, fly, and align units efficiently, while the fiber input supports long-distance signal runs common on large stages. The included camera and distance meter assist with placement and focus during setup, and the external shutter provides clean black transitions between cues. If you do not require the full touring package, compare the lighter UDX-W40 platform options including the COMM+LNS and COMM+FRM+FC builds. For lower-brightness needs, the 32,000-lumen UDX-W32 platform covers the same WUXGA resolution at a reduced light output. Browse the full Barco collection for lenses, frames, and accessories. All UDX-W40 units share the same FLEX2 brightness and resolution locking feature for repeatable show settings.

Key Features

• 40,000 Center Lumens — The 3-chip DLP engine delivers 40,000 center lumens, 39,000 ANSI lumens, and 43,000 ISO lumens for high-ambient-light venues.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Laser Phosphor Light Source — Laser B + R with inorganic phosphor wheel provides a 20,000-hour lifetime and eliminates lamp-replacement costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• Touring-Ready Package — Includes motorized frame, flight case, fiber input, camera, distance meter, and external shutter for fast deployment.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long event schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible rigging.
• DMX 512 and Networked Control — XLR wired, IR, RS232, optional Wi-Fi and GSM, plus an integrated web server and Projector Toolset.

Typical Applications

• Auditorium and large-venue stage productions
• Broadcast studio and live event projection
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces

Technical Specifications

Frequently Asked Questions

What lenses are compatible with the UDX-W40? The UDX-W40 accepts the Barco TLD+ lens series, with throw ratios ranging from 0.37 up to 7.5-11.5:1, and supports motorized zoom, focus, and lens shift with position memory.

What is included in this Touring Kit configuration? This BT build includes the FLEX projector body, GSM module, Wi-Fi, a motorized frame, a flight case, a fiber input, a camera, a distance meter, and an external shutter, plus a power cord and rugged remote.

How does the UDX-W40 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset for control.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend for seamless multi-unit arrays.

What are the power and cooling requirements? The projector draws up to 3750 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 12,795 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W40.
