Barco UDX-W32 34,000-Lumen WUXGA Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9408986-BU

Product Overview

The Barco UDX-W32 (R9408986-BU) is a WUXGA 3-chip DLP laser phosphor projector supplied with a GSM module and Wi-Fi but no lens, rated at 32,000 center lumens and up to 34,000 ISO lumens for bright large-venue rooms. It produces native 1920 x 1200 (WUXGA) resolution from a laser phosphor light source with a 25,000-hour lifetime, suited to installation and staging integrators. The FLEX2 feature lets you tune and lock brightness and resolution to a specific show. A power cord and rugged remote control are included.

Product Description

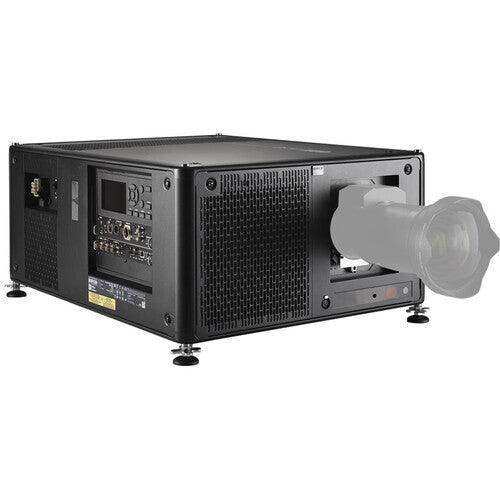

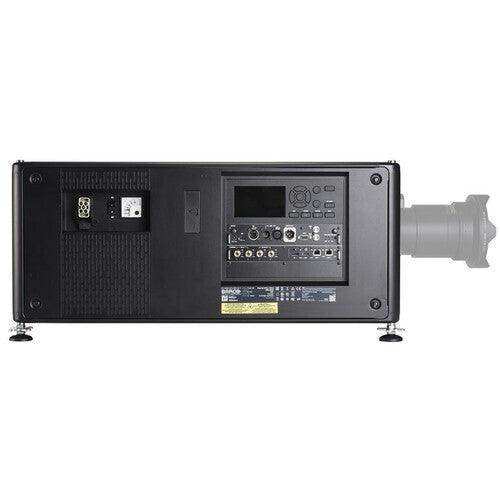

This BU no-lens build adds factory GSM and Wi-Fi connectivity to the UDX-W32 engine while leaving lens selection to the integrator, which suits installations that monitor and manage projectors remotely. The product gallery shows the compact, rugged UDX chassis with integrated cooling and modular components that can be removed quickly to limit servicing time. It pairs naturally with the UDX-W32 COMM+LNS when a lens should ship with the unit, or with the UDX-W32 Touring Kit for rental and touring crews. For higher brightness at the same WUXGA resolution, step up to the 40,000-lumen UDX-W40 COMM+LNS. Browse the full Barco collection for compatible TLD+ lenses.

Key Features

• 32,000 Center Lumens — The 3-chip DLP engine delivers 32,000 center lumens, 31,000 ANSI lumens, and 34,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Factory GSM and Wi-Fi — Ships with GSM and Wi-Fi options for remote monitoring and management where available.
• No Lens Included — Select the TLD+ lens that matches your throw distance, from 0.37 up to 7.5-11.5:1.
• Laser Phosphor Light Source — Laser phosphor with inorganic phosphor wheel provides a 25,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long operating schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible installation.

Typical Applications

• Auditorium and performing-arts venues
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces
• Broadcast studio projection

Technical Specifications

Frequently Asked Questions

Which lenses fit this projector? The UDX-W32 accepts the Barco TLD+ lens series (sold separately) with throw ratios from 0.37 up to 7.5-11.5:1 and motorized zoom, focus, and lens shift with position memory.

What is included in this configuration? You receive the UDX-W32 engine with GSM and Wi-Fi, a power cord, and a rugged remote control; no lens is bundled.

How does the UDX-W32 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What does the 34,000-lumen rating mean? The projector produces 32,000 center lumens and up to 34,000 ISO lumens; ISO is a measurement standard that yields a higher published figure than the center reading.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W32.
