Barco R9408986-BT UDX W32 COMM+TOURING KIT; Body+GSM+WIFI+MTR Frame+FCase+Fiber Input+Camera+Distance Meter+Ext Shutter

Product Overview

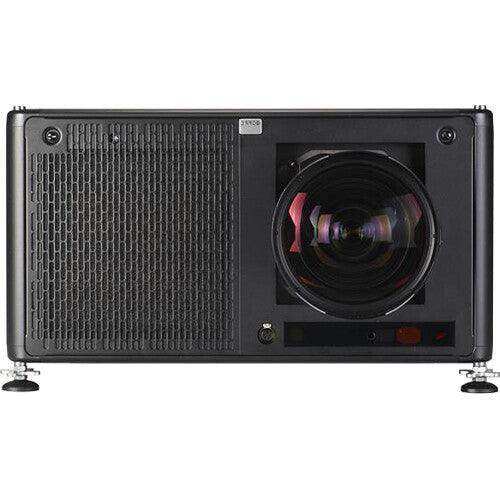

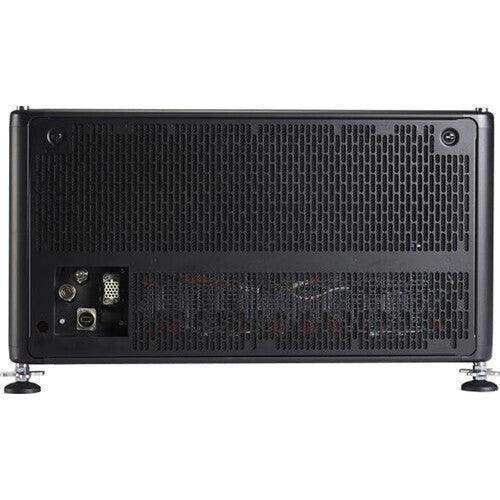

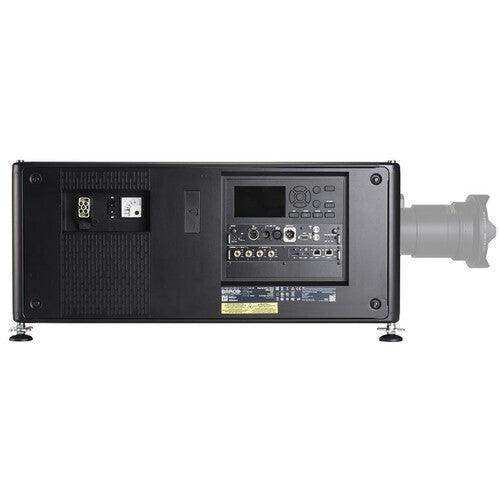

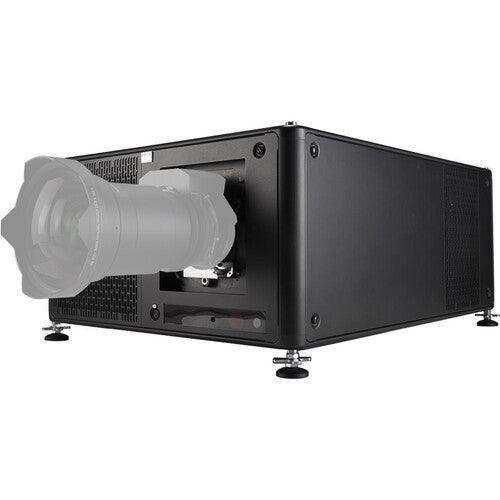

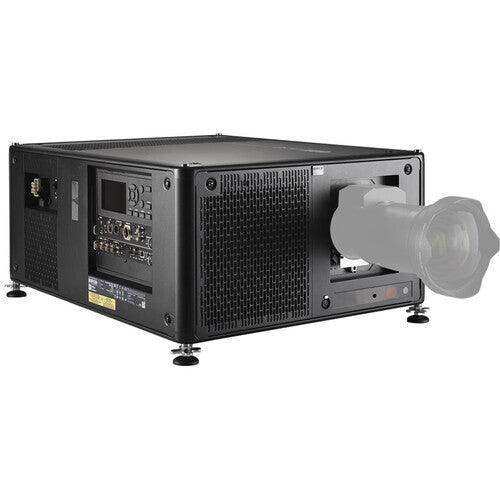

The Barco UDX-W32 Touring Kit is a complete rental and staging package built around the 32,000-lumen WUXGA 3-chip DLP laser phosphor projector for large-venue events, concert touring, and live productions. This BT configuration pairs the projector body with a GSM module, Wi-Fi, a motorized frame, a flight case, a fiber input, a rigging camera, a distance meter, and an external shutter for fast deployment and strike. Native 1920 x 1200 (WUXGA) resolution and a laser phosphor light source deliver bright, color-accurate images with a 25,000-hour light-source lifetime. The kit ships with a power cord and wireless/XLR wired rugged remote control.

Product Description

This Touring Kit is the most fully equipped UDX-W32 configuration in our Barco lineup, built for crews that move a projector between venues and need protective transport and fast rigging. The motorized frame and integrated flight case shown in the product gallery let technicians stack, fly, and align units efficiently, while the fiber input supports long-distance signal runs common on large stages. The included camera and distance meter assist with placement and focus during setup, and the external shutter provides clean black transitions between cues. If you do not need the full touring package, compare the UDX-W32 platform options with manual frame or lens-included builds. For higher brightness at the same WUXGA resolution, step up to the 40,000-lumen UDX-W40 Touring Kit. Browse the full Barco collection for lenses, frames, and accessories. The FLEX2 feature lets you tune and lock brightness and resolution to a specific show.

Key Features

• 32,000 Center Lumens — The 3-chip DLP engine delivers 32,000 center lumens, 31,000 ANSI lumens, and 34,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Laser Phosphor Light Source — Laser phosphor with inorganic phosphor wheel provides a 25,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• Touring-Ready Package — Includes motorized frame, flight case, fiber input, camera, distance meter, and external shutter for fast deployment.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long event schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible rigging.
• DMX 512 and Networked Control — XLR wired, IR, RS232, optional Wi-Fi and GSM, plus an integrated web server and Projector Toolset.

Typical Applications

• Auditorium and large-venue stage productions
• Broadcast studio and live event projection
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces

Technical Specifications

Frequently Asked Questions

What lenses are compatible with the UDX-W32? The UDX-W32 accepts the Barco TLD+ lens series, with throw ratios ranging from 0.37 up to 7.5-11.5:1, and supports motorized zoom, focus, and lens shift with position memory.

What is included in this Touring Kit configuration? This BT build includes the projector body, GSM module, Wi-Fi, a motorized frame, a flight case, a fiber input, a camera, a distance meter, and an external shutter, plus a power cord and rugged remote.

How does the UDX-W32 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What are the power and cooling requirements? The projector draws up to 3,100 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 9,895 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W32.
