Barco R9408986-B1 UDX W32 COMM+LNS; Body+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

The Barco UDX-W32 COMM+LNS is a 32,000-lumen WUXGA 3-chip DLP laser phosphor projector configured for permanent and semi-permanent large-venue installations. This B1 configuration combines the projector body with a GSM module, Wi-Fi, and your choice of any Barco TLD+ lens (except the 90 UST lens) to match throw distance to the room. Native 1920 x 1200 (WUXGA) resolution and a laser phosphor light source deliver bright, color-accurate images with a 25,000-hour light-source lifetime. A power cord and rugged remote control are included.

Product Description

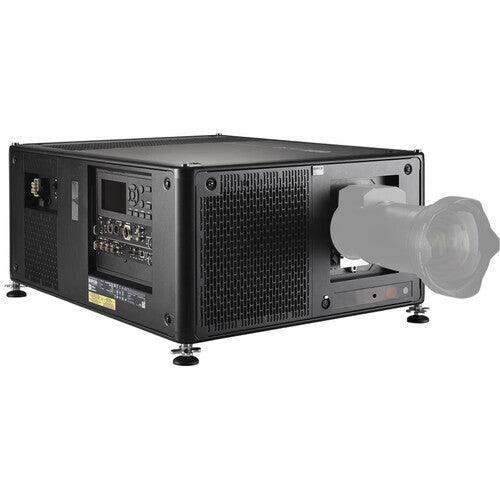

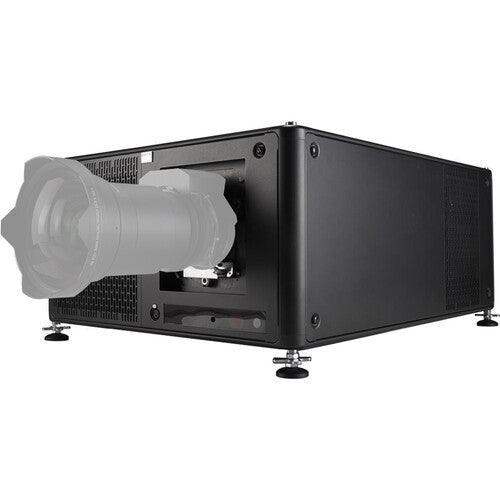

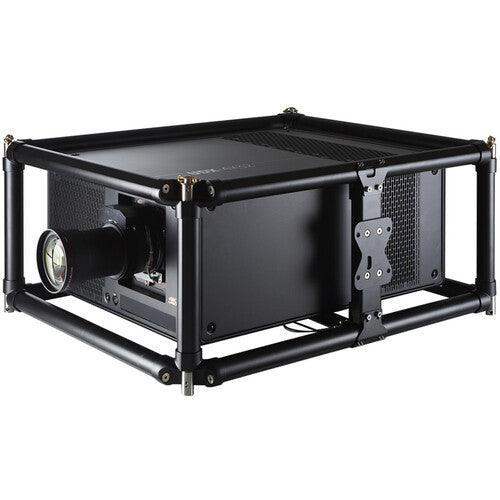

This COMM+LNS build is the installation-focused UDX-W32 configuration, shipping body-plus-lens rather than with road cases, making it well suited to auditoriums, houses of worship, and corporate spaces where the projector stays in place. The product gallery shows the compact UDX chassis with integrated cooling, which keeps the footprint small for ceiling or floor mounting at any angle. Because it accepts the full TLD+ lens range, integrators can dial in throw ratios from ultra-short to long-throw without changing projector bodies. For touring and rental crews who need protective transport, the UDX-W32 Touring Kit adds a motorized frame, flight case, and accessories. If you need higher brightness at the same WUXGA resolution, consider the 40,000-lumen UDX-W40 COMM+LNS. Browse the full Barco collection for compatible lenses and accessories.

Key Features

• 32,000 Center Lumens — The 3-chip DLP engine delivers 32,000 center lumens, 31,000 ANSI lumens, and 34,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Any TLD+ Lens — Ships with your choice of TLD+ lens (except 90 UST), with throw ratios from 0.37 up to 7.5-11.5:1.
• Laser Phosphor Light Source — Laser phosphor with inorganic phosphor wheel provides a 25,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long operating schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible installation.
• Networked Control — XLR wired, IR, RS232, DMX 512, optional Wi-Fi and GSM, plus an integrated web server and Projector Toolset.

Typical Applications

• Auditorium and performing-arts venues
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces
• Broadcast studio projection

Technical Specifications

Frequently Asked Questions

What lenses are compatible with this configuration? This COMM+LNS build ships with any Barco TLD+ lens you select except the 90 UST lens, covering throw ratios from 0.37 up to 7.5-11.5:1 with motorized zoom, focus, and lens shift.

What is included in the COMM+LNS configuration? You receive the projector body, GSM module, Wi-Fi, and your chosen TLD+ lens, plus a power cord and rugged remote control.

How does the UDX-W32 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What are the power and cooling requirements? The projector draws up to 3,100 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 9,895 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W32.
