Barco UDX-4K32 31,000-Lumen WQXGA Laser DLP Projector (No Lens) - R9408982-BU

Product Overview

The Barco UDX-4K32 is a 31,000-lumen WQXGA and 4K UHD laser projector supplied here without a lens for large-venue projection and commercial AV integration. This no-lens build (R9408982-BU) suits fixed installations and rental fleets that pair the projection engine with existing or project-specific TLD+ lenses. The 3-chip DLP architecture and laser phosphor light source deliver high-brightness imagery for auditoriums, broadcast environments, and corporate deployments. Specifying the body without optics lets AV teams match throw geometry to each venue while controlling cost.

Product Description

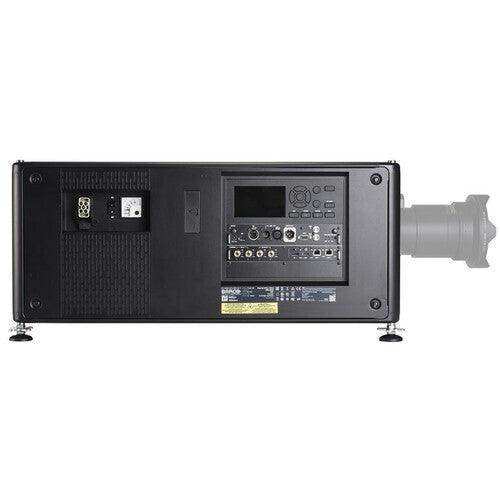

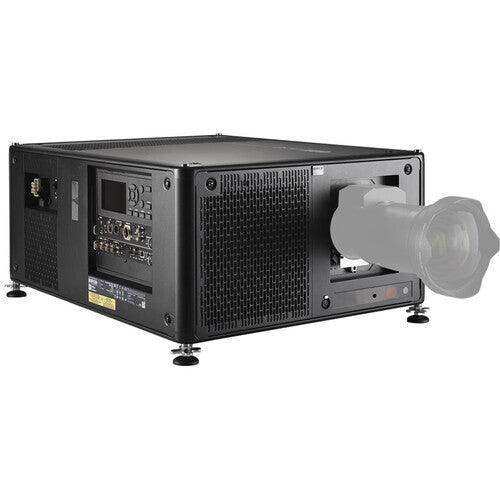

This UDX-4K32 ships as the projection engine without optics, as shown in the gallery above, ready to accept any compatible Barco TLD+ lens for the required throw distance. The 3-chip 0.9-inch DMD engine and laser phosphor light source produce native WQXGA and processed 4K UHD images at up to 33,000 ISO lumens (31,000 center lumens WQ), with Constant Light Output for stable brightness over the 25,000-hour light source life. If you would rather order the lens with the projector, see the UDX-4K32 COMM+LNS configuration, the transport-ready UDX-4K32 with frame and flight case, or the full UDX-4K32 touring kit. Browse the full lineup in the Barco projector collection at Creation Networks. The gallery images detail the chassis, input panel, and lens mount referenced in this listing.

Key Features

• 31,000 lumens (33,000 ISO) — The laser phosphor light source delivers high-brightness 4K UHD images for large screens and high-ambient venues.
• No-lens configuration — The engine ships without optics so integrators can fit the TLD+ lens that matches each venue's throw distance.
• WQXGA native, 4K UHD via processing — The 2,560 x 1,600 native panels render processed 3,840 x 2,400 4K UHD content with accurate color.
• 3-chip DLP engine — Three 0.9-inch DMD chips produce sharp, high-contrast images for demanding large-venue content.
• FLEX2 brightness and resolution tuning — Lock the projector to a defined brightness and resolution per show so one unit covers a wider operating range.
• Laser phosphor light source — A rated 25,000-hour light source life removes lamp costs and eliminates image flicker over long runs.
• Embedded warp and blend — Built-in ScenergiX edge blending supports multi-projector arrays without external processing hardware.
• Constant Light Output — CLO maintains consistent brightness and color across the light source lifetime for predictable image matching.
• Wide input set — HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G-SDI inputs integrate with professional signal chains.
• TLD+ lens compatibility — The lens mount accepts the full TLD+ range from 0.65 to 11.5:1 throw ratios for flexible placement.

Typical Applications

• Auditorium — High lumen output and 4K resolution fill large screens for presentations and live events.
• Broadcast studio — Accurate color and high brightness support on-set projection and virtual backdrops.
• House of worship — Clear large-format imagery serves sanctuaries and overflow spaces with multi-projector blending.
• Large commercial all-hands room — Bright 4K images keep content legible for large audiences in corporate town-hall settings.
• Training room — Bright, sharp 4K imagery supports detailed instructional content in large training environments.

Technical Specifications

Frequently Asked Questions

Does this configuration include a lens? No. It ships without a lens so you can fit the TLD+ lens matching your throw distance; the TLD+ range spans 0.65 to 11.5:1 throw ratios.

What exactly ships in this package? You receive the UDX-4K32 projector body, the power cord, and the rugged wireless/XLR wired remote control. The lens is ordered separately.

How does it integrate with an existing AV system? The projector accepts HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G-SDI sources, with control over RS232, IR, XLR wired, and optional WiFi and GSM, plus DMX 512 for show control.

Does it support edge blending for multi-projector arrays? Yes. Embedded warp and blend with Barco ScenergiX provides horizontal and vertical edge blending for combining several units into one blended image.

What are the power and cooling requirements? The unit draws up to 3,100 W on a 200-240 V, 20A circuit and dissipates up to 9,895 BTU/h with integrated cooling, so size circuits and HVAC accordingly.

What warranty applies? Barco provides a standard 3-year warranty on the UDX-4K32.
