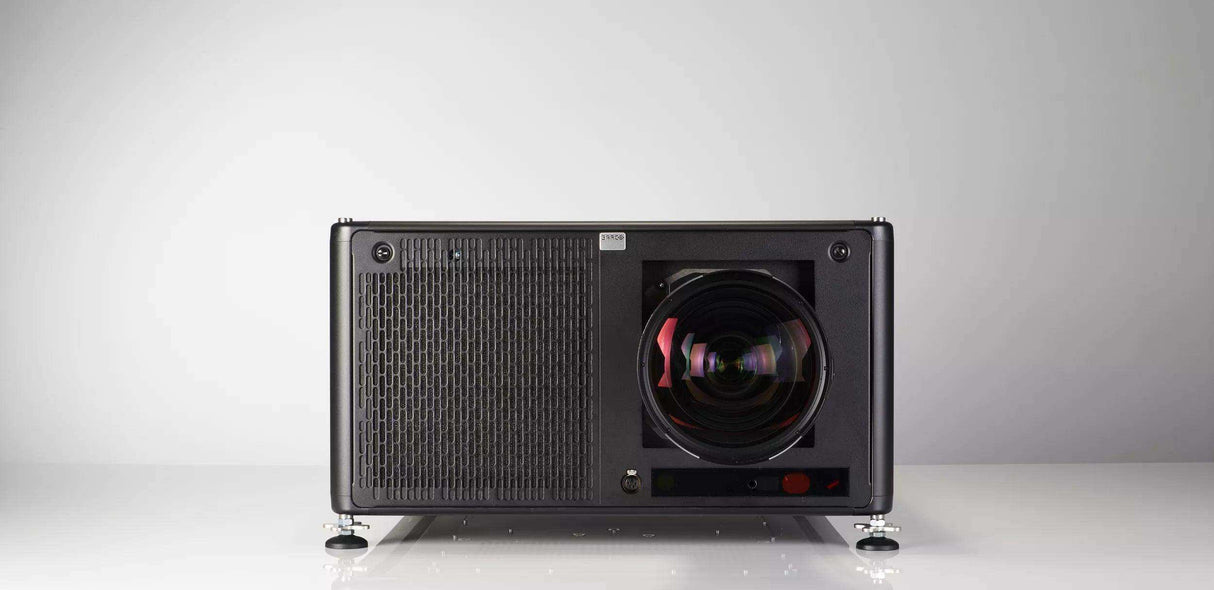

Barco R9408982-BT UDX-4K32 COMM+TOURING KIT; Body+GSM+WIFI+MTR Frame+FCase+Fiber Input+Camera+Distance Meter+Ext Shutter

Product Overview

The Barco UDX-4K32 Touring Kit is a 31,000-lumen 4K UHD laser projector packaged for rental and staging fleets that move equipment between venues. This BT touring configuration combines the projector body with GSM and WiFi control, a motorized frame, a flight case, a fiber input, a rigging camera, a distance meter, and an external shutter, giving live-event integrators a complete touring projection package. The 3-chip DLP engine and laser phosphor light source support large-venue projection across auditoriums, broadcast environments, and corporate events. The motorized frame and rigging accessories speed setup and alignment on tour.

Product Description

This touring kit builds on the UDX-4K32 engine with a full set of road-ready accessories, as shown in the gallery above: a motorized rigging frame, flight case, fiber input for long signal runs, a camera for alignment, a distance meter, and an external shutter. The 3-chip 0.9-inch DMD engine and laser phosphor light source produce 4K UHD images at up to 33,000 ISO lumens (31,000 center lumens WQ), with Constant Light Output for stable brightness over the 25,000-hour light source life. The fiber input supports long-distance signal transport common on large stages, while the motorized frame enables remote lens and position alignment. If you need a simpler build, compare the other UDX-4K32 configurations, or step up in brightness with the UDX-4K40 platform. Browse the full lineup in the Barco projector collection at Creation Networks. The gallery images detail the motorized frame, flight case, and rigging accessories referenced in this listing.

Key Features

• 31,000 lumens (33,000 ISO) — The laser phosphor light source delivers high-brightness 4K UHD images for large screens and live-event stages.
• Complete touring kit — The package adds a motorized frame, flight case, fiber input, camera, distance meter, and external shutter for road-ready deployment.

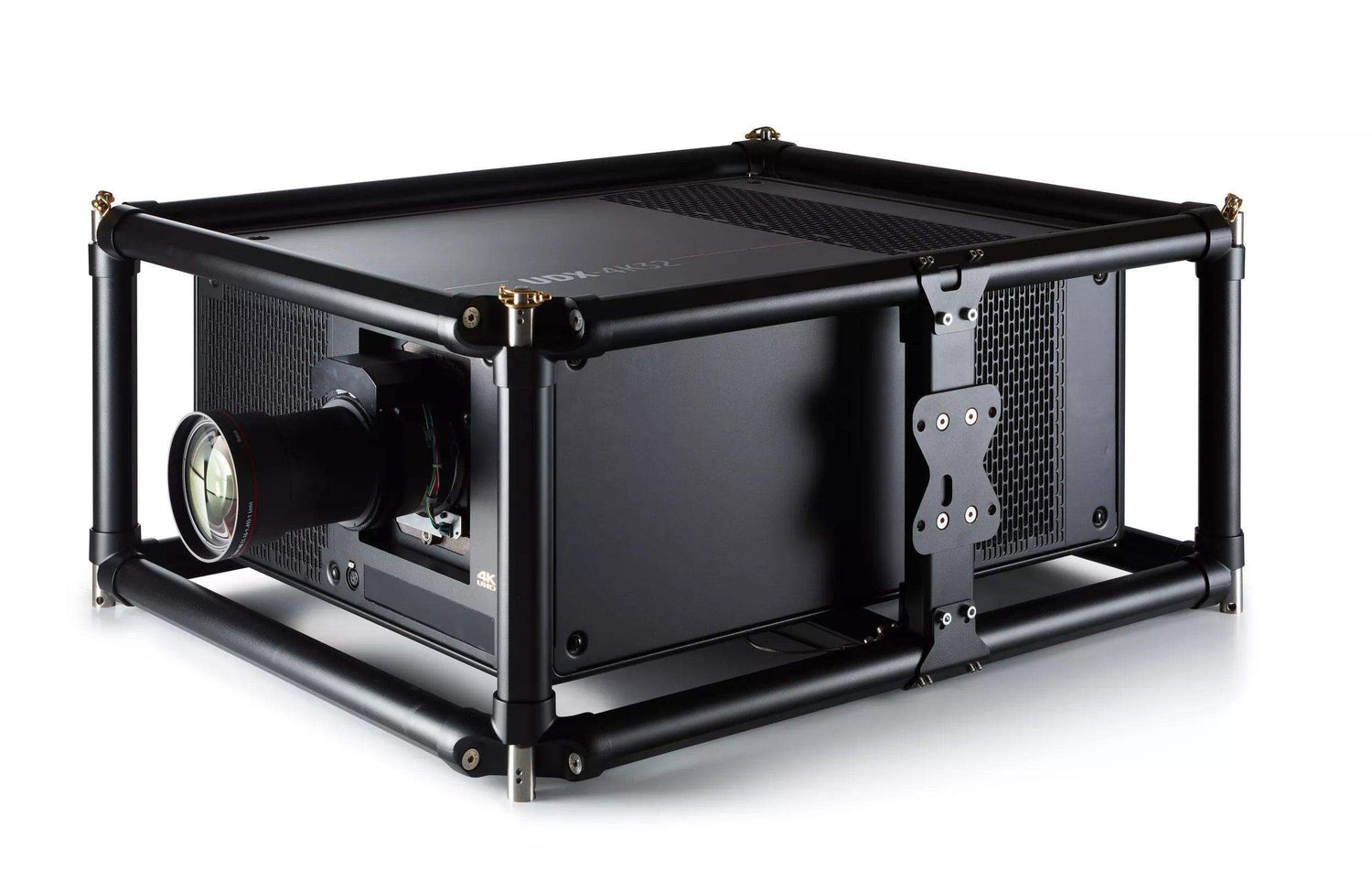

• Motorized rigging frame — The motorized frame supports remote alignment and faster setup when projectors are flown or stacked on tour.
• Fiber input — A fiber SFP input carries signal over long cable runs typical of large stages and arena productions.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips produce a 3,840 x 2,400 image with accurate color for demanding content.
• FLEX2 brightness and resolution tuning — Lock the projector to a defined brightness and resolution per show so one unit covers a wider operating range.
• Laser phosphor light source — A rated 25,000-hour light source life removes lamp costs and eliminates image flicker over long event runs.
• Embedded warp and blend — Built-in ScenergiX edge blending supports multi-projector arrays without external processing hardware.
• External shutter and distance meter — A mechanical external shutter and integrated distance meter aid show control and rapid focus on tour.
• GSM and WiFi control — Remote monitoring options join XLR wired, IR, and RS232 control for managing units across a touring rig.

Typical Applications

• Auditorium — High lumen output and 4K resolution fill large screens for touring presentations and live events.
• Broadcast studio — Accurate color and high brightness support on-set projection and virtual backdrops.
• House of worship — Clear large-format imagery serves sanctuaries and touring productions with multi-projector blending.
• Large commercial all-hands room — Bright 4K images keep content legible for large audiences at staged corporate events.
• Multi-purpose room — The motorized frame and flight case make the projector practical for venues with changing event configurations.

Technical Specifications

Frequently Asked Questions

Is a lens included with the touring kit? The touring kit centers on the projector body and rigging accessories; confirm lens needs at order, as the UDX-4K32 accepts the full TLD+ range from 0.65 to 11.5:1 throw ratios.

What exactly ships in this kit? You receive the UDX-4K32 body, GSM and WiFi connectivity, a motorized frame, a flight case, a fiber input, a camera, a distance meter, and an external shutter, plus the power cord and rugged remote control.

How does it integrate with an existing AV system? The projector accepts HDBaseT, HDMI 2.0, DisplayPort 1.2, Quad 3G/12G-SDI, and the included fiber input, with control over RS232, IR, XLR wired, WiFi, and GSM, plus DMX 512 for show control.

Does it support edge blending for multi-projector arrays? Yes. Embedded warp and blend with Barco ScenergiX provides horizontal and vertical edge blending for combining several units into one blended image.

What are the power and cooling requirements? The unit draws up to 3,100 W on a 200-240 V, 20A circuit and dissipates up to 9,895 BTU/h with integrated cooling, so size circuits and HVAC accordingly.

What warranty applies? Barco provides a standard 3-year warranty on the UDX-4K32.
