Barco R9408982-B1 UDX-4K32 COMM+LNS; Body+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

The Barco UDX-4K32 is a 31,000-lumen 4K UHD laser projector built for large-venue projection and commercial AV integration where high brightness and color accuracy matter. This COMM+LNS configuration ships as the projector body with GSM and WiFi connectivity plus your choice of TLD+ lens, making it a ready-to-deploy package for fixed installation and rental staging. Its 3-chip DLP engine and laser phosphor light source suit auditorium projection, broadcast environments, and high-impact corporate events. Integrators specifying a large-venue laser projector gain a single platform covering a wide range of throw distances and brightness levels.

Product Description

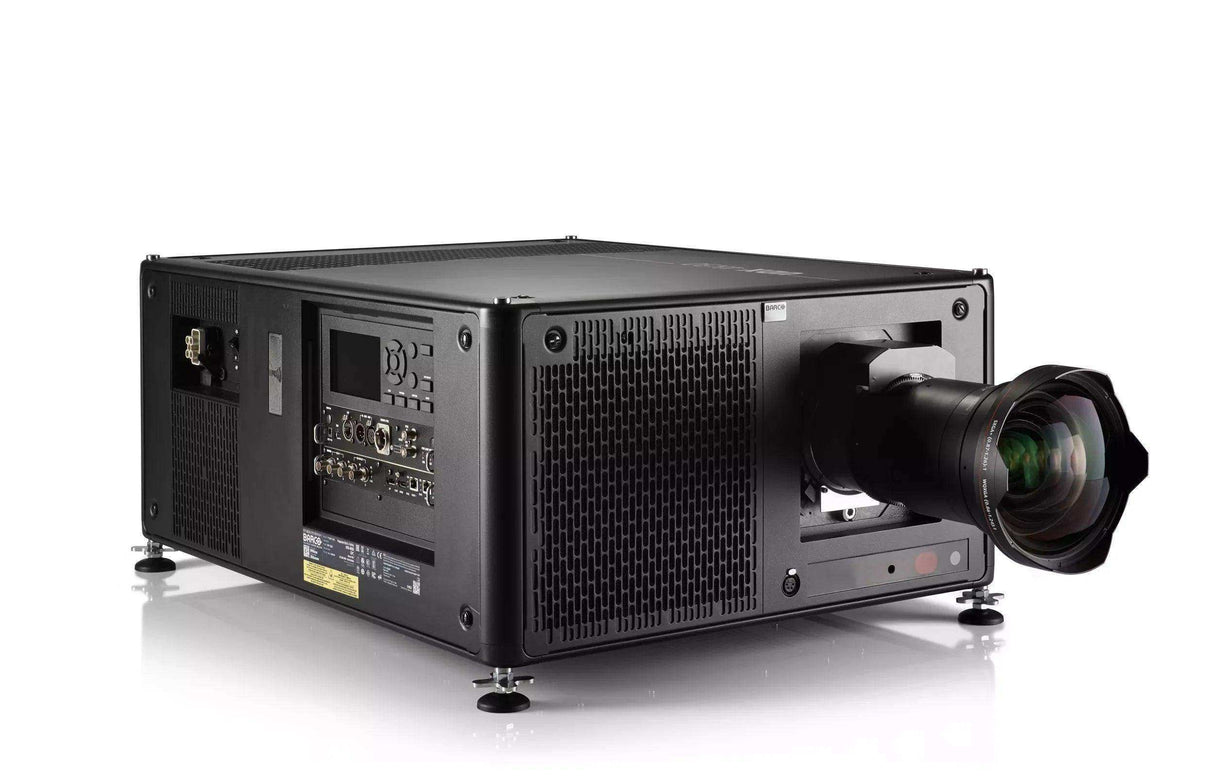

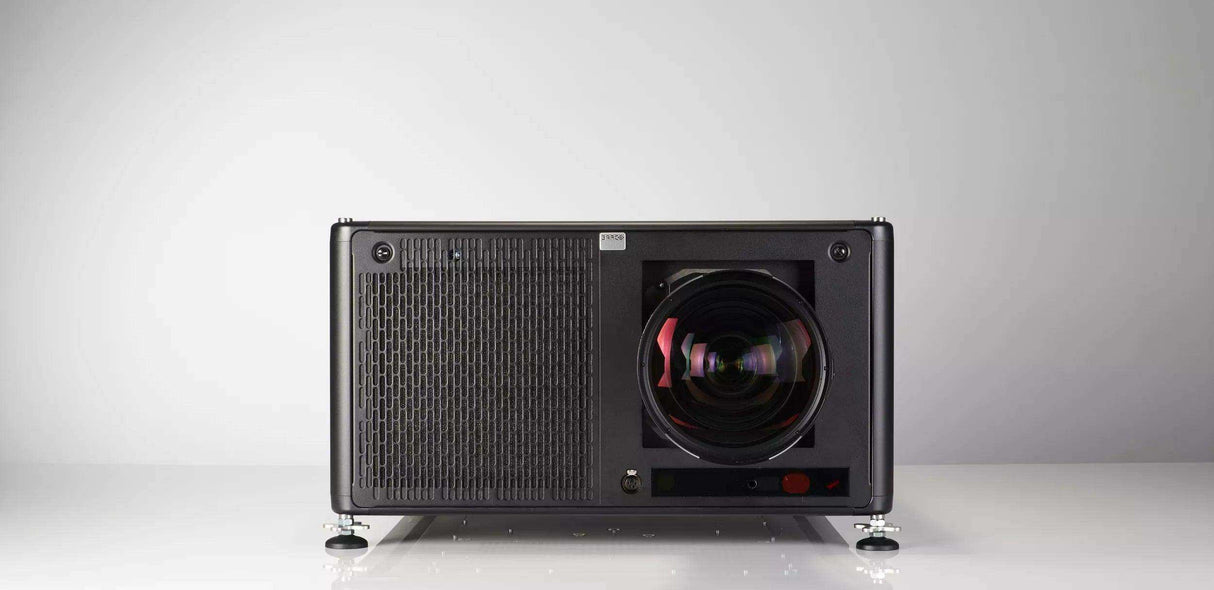

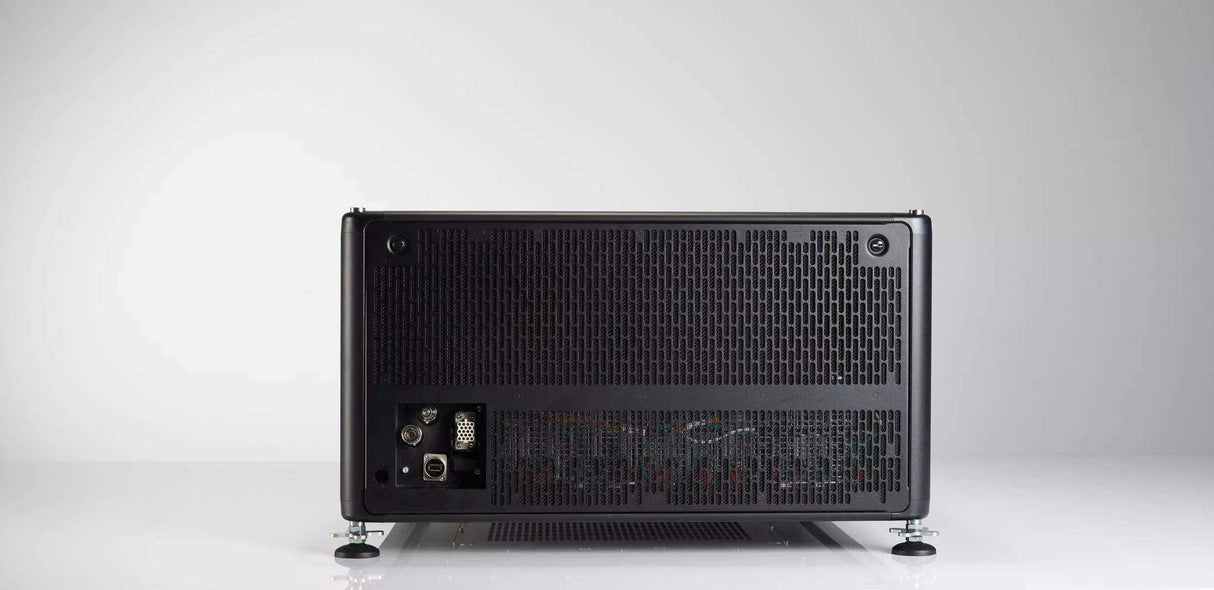

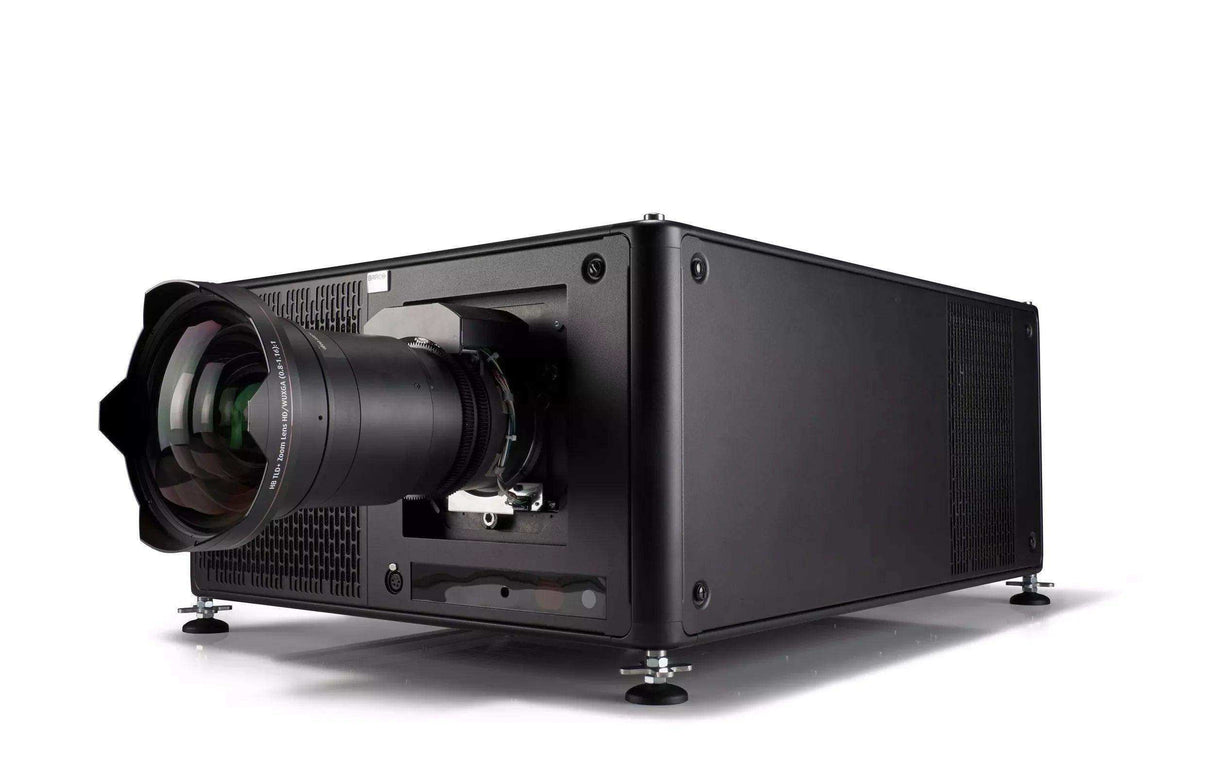

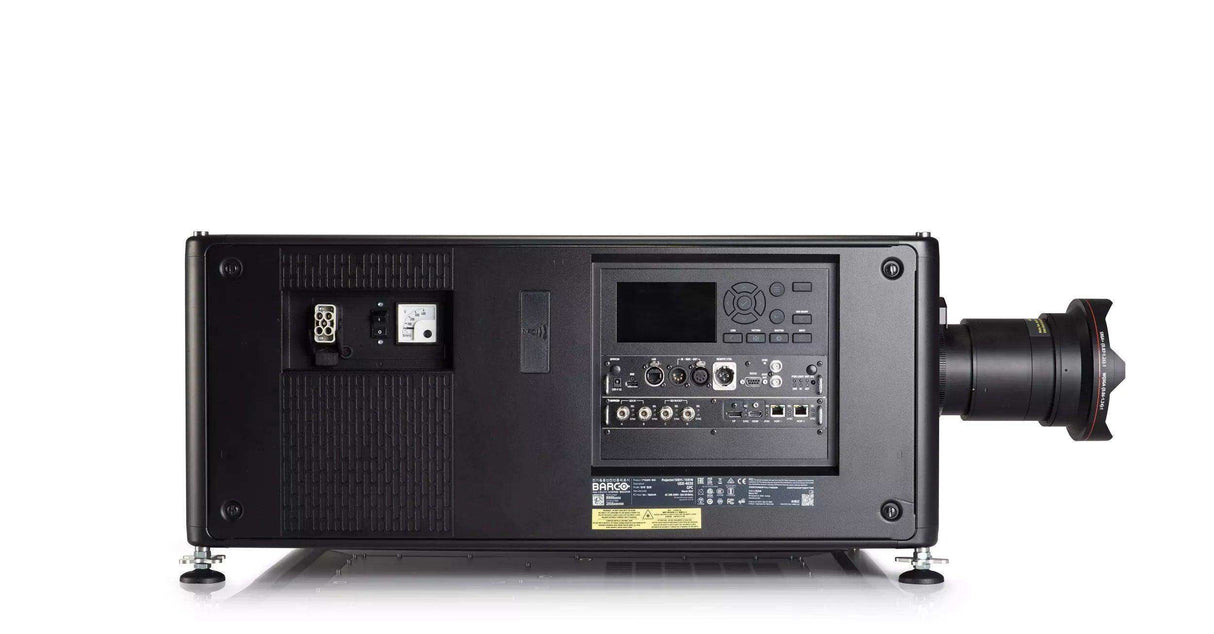

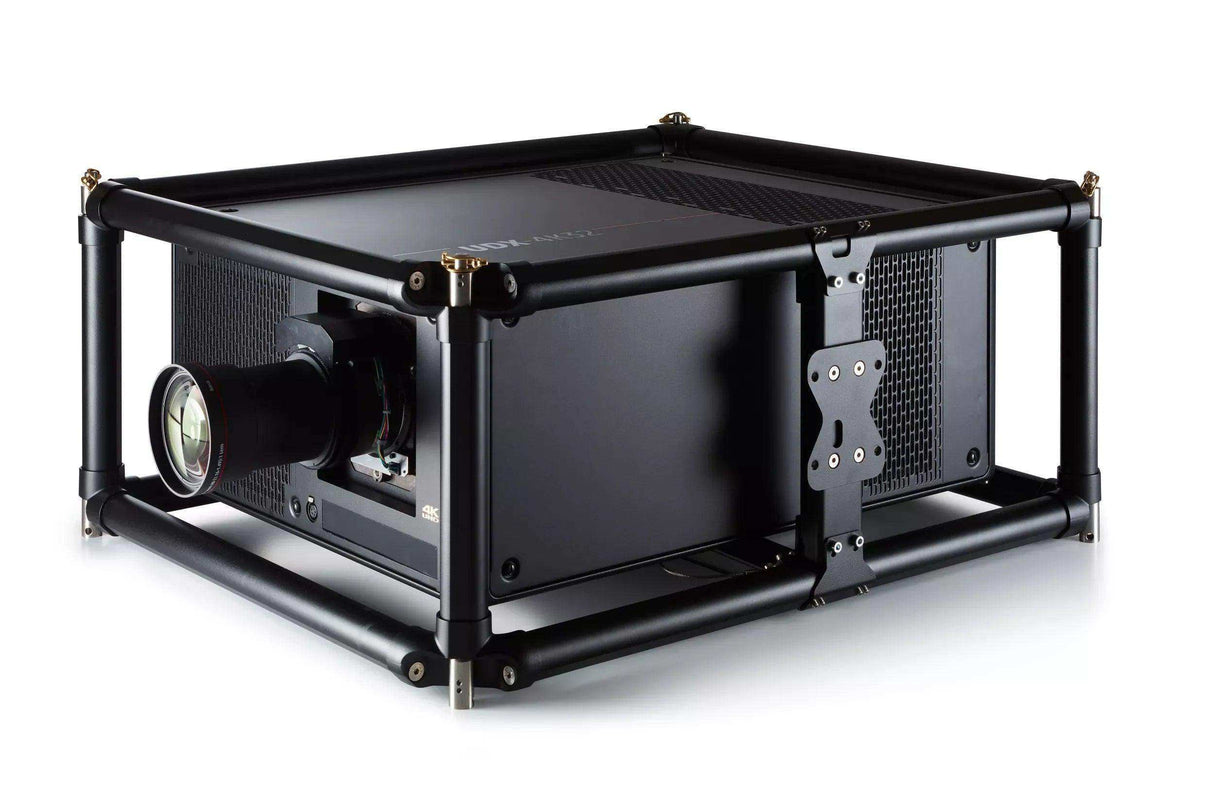

The UDX-4K32 pairs three 0.9-inch DMD chips with a laser phosphor light source to deliver razor-sharp 4K UHD images at up to 33,000 ISO lumens (31,000 center lumens WQ), as shown in the gallery above. This commercial configuration includes the projector body, GSM and WiFi control options, and one TLD+ lens selected from Barco's range, so the system arrives configured for a specific throw geometry without a separate lens order. The Pulse 4K electronics provide Single Step Processing for lower latency and embedded warp and blend for multi-projector edge blending, while the Insights Management Suite supports fleet monitoring. If you need the engine without optics, compare the UDX-4K32 touring kit, or step up in brightness with the UDX-4K40 platform. Browse the full lineup in the Barco projector collection at Creation Networks. The gallery images detail the chassis, input panel, and lens mount referenced in this listing.

Key Features

• 31,000 lumens (33,000 ISO) — The laser phosphor light source delivers high-brightness 4K UHD images that hold up in large auditoriums and high-ambient-light venues.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips produce a 3,840 x 2,400 image with accurate color and sharp detail for demanding content.
• TLD+ lens included — This configuration ships with one TLD+ lens from Barco's range, supporting throw ratios from 0.65 to 11.5:1 for flexible placement.
• FLEX2 brightness and resolution tuning — Lock the projector to a defined brightness and resolution per show so one unit covers a wider operating range.
• Laser phosphor light source — A rated 25,000-hour light source life removes lamp replacement costs and eliminates image flicker over long runs.
• Embedded warp and blend — Built-in ScenergiX horizontal and vertical edge blending supports multi-projector arrays without external processing hardware.
• Constant Light Output — CLO maintains consistent brightness and color across the light source lifetime for predictable image matching.
• Wide input set — HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G-SDI inputs integrate with professional AV signal chains.
• GSM and WiFi control — This commercial build adds GSM and WiFi options alongside XLR wired, IR, and RS232 for flexible remote monitoring and control.
• 360-degree orientation — The sealed DLP core and any-angle mounting allow installation in fixed and rigged positions across diverse venues.

Typical Applications

• Auditorium — High lumen output and 4K resolution fill large screens for presentations, ceremonies, and live events.
• Broadcast studio — Accurate color reproduction and high brightness support on-set projection and virtual backdrops.
• House of worship — The projector delivers clear large-format imagery for sanctuaries and overflow spaces with multi-projector blending.
• Large commercial all-hands room — Bright 4K images keep content legible for large audiences in corporate town-hall settings.
• Multi-purpose room — Flexible lens options and 360-degree orientation adapt the projector to changing room configurations.

Technical Specifications

Frequently Asked Questions

Which lens is included with this configuration? This COMM+LNS build includes one TLD+ lens of your choice from Barco's range (excluding the 90-degree UST lens), covering throw ratios from 0.65 to 11.5:1, so you can match the lens to your throw distance.

What exactly ships in this package? You receive the UDX-4K32 projector body, GSM and WiFi connectivity options, and one TLD+ lens, along with the power cord and rugged wireless/XLR wired remote control.

How does it integrate with an existing AV system? The projector accepts HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G-SDI sources, with control over RS232, IR, XLR wired, WiFi, and GSM, plus DMX 512 for show control integration.

Does it support edge blending for multi-projector arrays? Yes. Embedded warp and blend with Barco ScenergiX provides horizontal and vertical edge blending, allowing several UDX-4K32 units to form a single blended image.

What are the power and cooling requirements? The unit draws up to 3,100 W on a 200-240 V, 20A circuit and dissipates up to 9,895 BTU/h with integrated cooling, so plan circuit capacity and HVAC accordingly.

What warranty applies? Barco provides a standard 3-year warranty on the UDX-4K32.
