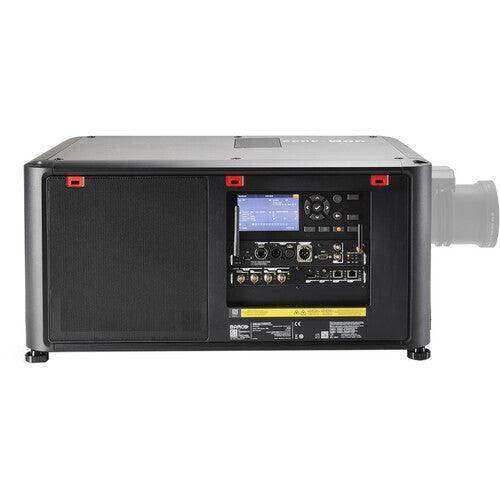

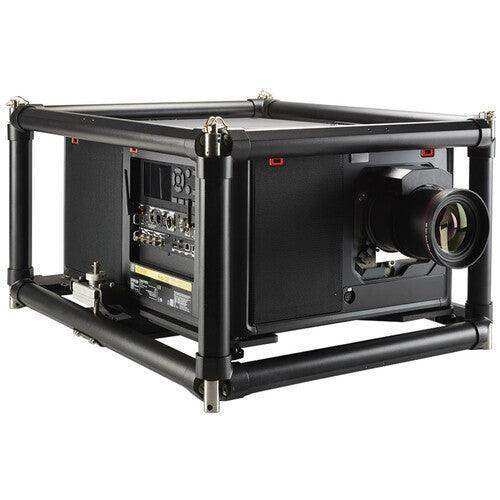

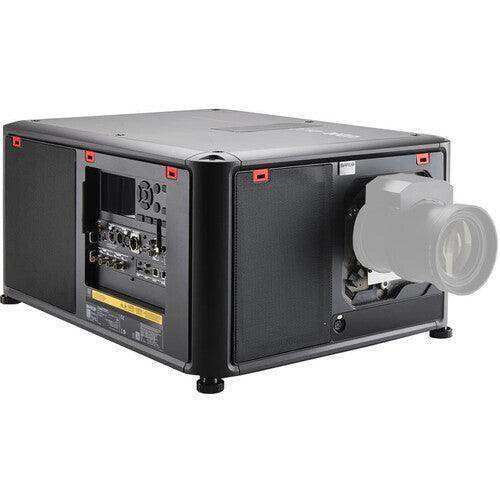

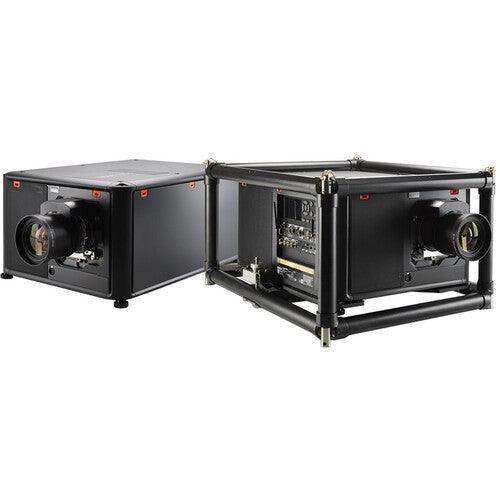

Barco UDM-4K30 30,000-Lumen 4K UHD Laser DLP Projector (No Lens, Gen 2) - R9401001-BU

Regular price $80,740.00
Shipping calculated at checkout.
Barco  |  SKU: R9401001-BU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Compact and lightweight for its category, the UDM-4K30 27,000-Lumen WQXGA Laser DLP Projector from Barco is also modular, making installation, shipping, and repair easier. Additional cost savings come in the form of the laser light source that does not require frequent bulb replacement. Barco incorporates Constant Light Output (CLO) to achieve consistent color and brightness throughout its lifespan, and an integrated cooling system keeps it from overheating. With these features and a wide motorized lens shift, remote management, and a plethora of inputs, the UDM-4K30 is an ideal solution when you need a solid projection solution for large venues and event spaces.

Lens Adjustment
Once you select your lens, motorized adjustment lets you manage zoom, focus, and lens shift. Your lens shift range is wide to better accommodate different types of locations and surfaces. Based on the lens, you can shift vertically -100% to +130%, and horizontally +/- 40%.
Barco Pulse
Built on the Barco Pulse electronics platform, the UDM-4K30 provides Barco Pulse Single Step Processing, where warping, scaling, and up to 4K image processing is done in a single step. This results in an image that's incredibly sharp and motion with extremely low latency.
Remote Management
Troubleshooting can be done onsite through the built-in controls and display panel, or you can do it remotely using the Barco Insights Management Suite. This cloud-based dashboard lets you manage brightness settings of this projector and your entire fleet, monitor operating conditions using 3G connectivity, and access log files.


Features
  • Lens Required & Not Included
  • Brightness of 27,000 Lumens
  • Native WQXGA 2560 x 1600 Resolution
  • 3-Chip DLP Laser Projection System
  • Integrated Laser Cooling System
  • Motorized Zoom, Focus & Lens Shift
  • Wide -100/+130% Vertical Lens Shift
  • Wide -40/+40% Horizontal Lens Shift
  • Compact, Rugged & Modular Design

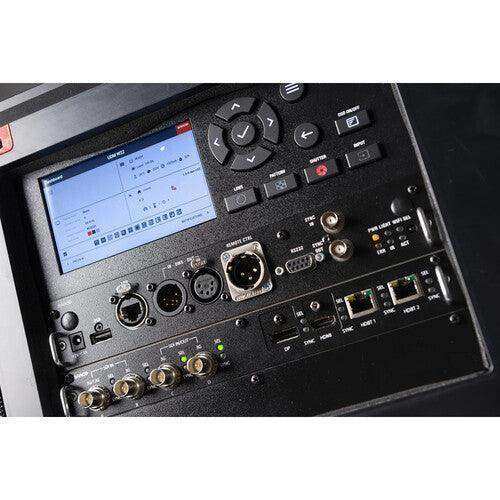

  • Built-In Display & Control Panel
Specs
Display System
3-Chip 0.9" DMD DLP
Native Chip Resolution
2560 x 1600 (WQXGA)
Maximum Brightness
27,000 Lumens (ISO)
25,500 Lumens (Center)
27,000 Lumens (ANSI)
Supported HDR Input Formats
HDR10
Inputs/Outputs
1 x RJ45 (HDBaseT) Audio, Control, Video Input
1 x HDMI 2.0 Audio, Video Input
1 x DisplayPort 1.2 Audio, Video Input
2 x RF (3G-SDI) Audio, Video Input
2 x RF (12G-SDI) Audio, Video Input
1 x RF Video Input
1 x RJ45 (Ethernet) LAN Input/Output
1 x 3-Pin DIN Audio Input
1 x DE-9/DB-9 (RS-232) Control Input

Light Source
Laser Phosphor
