Barco R9401001-B1 BME UDM 4K30 COMM+LNS (gen 2); Body(FLEX)+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

The Barco UDM-4K30 COMM+LNS (gen 2) is a fixed-install configuration of Barco's compact large-venue 4K UHD 3-chip DLP laser phosphor projector, shipped with the FLEX body, GSM and Wi-Fi connectivity, and your choice of TLD+ lens. It is intended for permanent venue installations where an integrator wants a complete, lens-matched projector ready to mount and align. At roughly 48 kg, the UDM is among the lightest projectors in its 30K-lumen class, simplifying rigging and ceiling mounts. This package suits auditoriums, houses of worship, and large presentation rooms that need bright, sharp 4K imagery.

Product Description

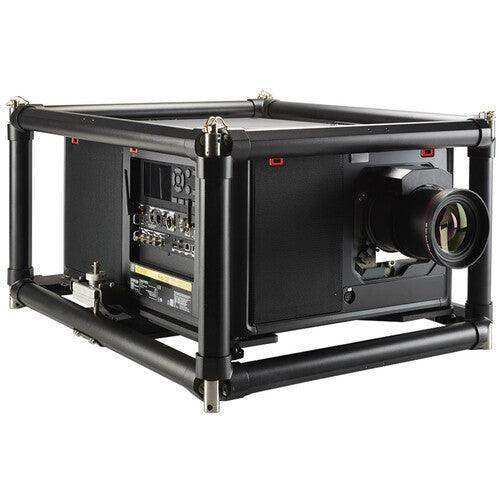

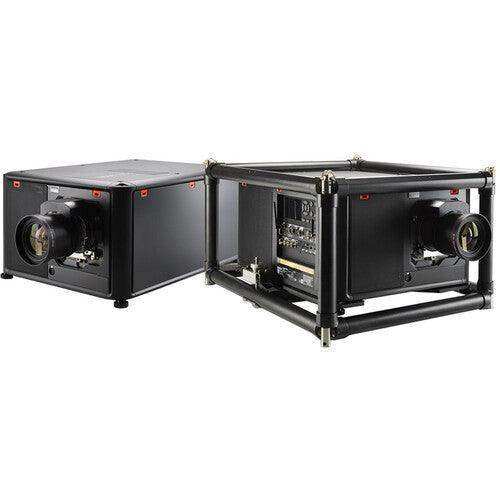

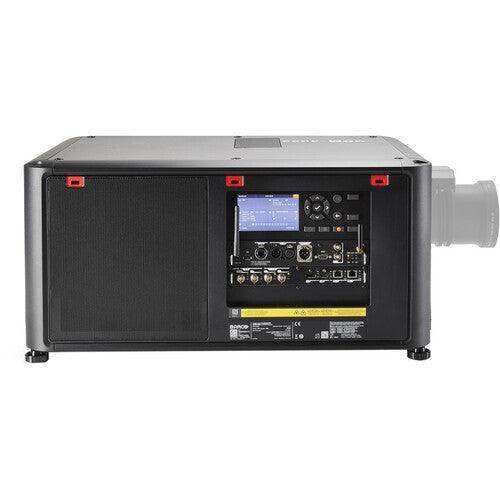

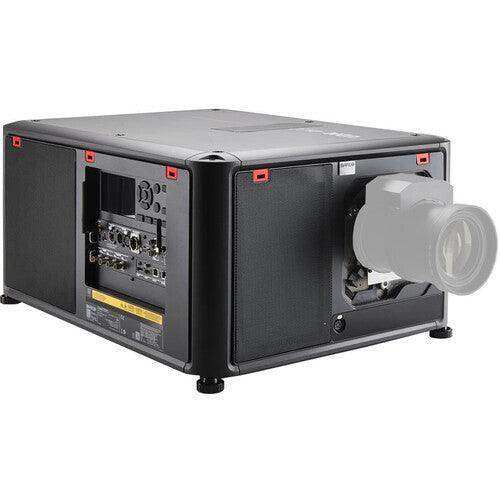

The UDM-4K30 produces 4K UHD resolution (3,840 x 2,400) from three 0.9-inch DMD chips and a laser phosphor light source, rated at 25,000 ANSI lumens, 25,500 center lumens, and 27,000 ISO lumens. Unlike the no-lens engine, this COMM+LNS configuration includes any TLD+ lens (except the 90 UST lens), letting you match throw distance to the room at the point of order. The gallery images show the FLEX body and the mounted lens assembly with its motorized zoom, focus, and shift. Built on Barco's Pulse electronics platform, Single Step Processing handles warp, scale, and 4K UHD processing in one pass for low latency and minimal dark time.

If you need a different package, compare the UDM 4K30 Touring Kit (gen 2) for rental and staging, the UDM 4K30 COMM+FRM+FC (gen 2) with manual frame and flight case, or the engine-only UDM-4K30 No Lens. See the full Barco collection for related projection systems.

Key Features

• Lens included — Ships with any Barco TLD+ lens (except 90 UST), matched to your room's throw distance.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips render 3,840 x 2,400 resolution with up to 5,120 x 3,200 processing.
• Laser phosphor light source — Inorganic phosphor wheel rated 20,000 hours at 100% laser power, with no lamp changes.
• High brightness — 25,000 ANSI lumens, 25,500 center lumens, and 27,000 ISO lumens.
• FLEX brightness control — Tune and lock brightness or resolution for a given application.
• Pulse Single Step Processing — Warp, scale, and 4K UHD processing in one step for low latency.
• ScenergiX edge blending — Horizontal and vertical edge blending for multi-projector arrays.
• Wide motorized lens shift — Vertical -100% to +130% and horizontal +/-40%, with position memory.
• Full connectivity — HDBaseT, HDMI 2.0 (HDR10), DisplayPort 1.2, Quad 3G/12G SDI, plus GSM, Wi-Fi, and Barco Insights Management Suite.
• 360-degree orientation — Sealed DLP core and dust filter for any mounting angle.

Typical Applications

• Auditoriums and lecture halls
• Houses of worship
• Large meeting and all-hands rooms
• Multi-purpose rooms with edge-blended projection
• Broadcast and presentation studios

Technical Specifications

Frequently Asked Questions

Which lens comes with this configuration? The COMM+LNS package includes any Barco TLD+ lens except the 90 UST lens. The TLD+ range spans 0.37:1 short-throw to 7.5-11.5:1 long-throw, so you select the lens that matches your room.

What is included in this configuration? The package includes the FLEX projector body, GSM and Wi-Fi connectivity, and your selected TLD+ lens. It does not include a frame or flight case.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G SDI. Control is available over RS232, IR, Wi-Fi, GSM, and DMX 512, with the Barco Insights Management Suite for remote fleet monitoring.

Can it be used in a multi-projector blend? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend for aligning multiple UDM units.

What are the power and cooling requirements? The projector runs on 200-240 V at 13.5A (or 120-160 V at reduced brightness), drawing up to 2200 W, with integrated laser cooling and a typical 49 dB(A) noise level.

Is a warranty included? Yes, Barco provides a standard 3-year warranty.
