Barco R9401001-FC BME UDM 4K30 COMM+FRM+FC (gen 2); Body(FLEX)+GSM+WIFI+Man Frame+FCase

Product Overview

The Barco UDM-4K30 COMM+FRM+FC (gen 2) packages Barco's compact large-venue 4K UHD 3-chip DLP laser phosphor projector with a manual rigging frame and a flight case, making it a practical choice for integrators and rental houses that move the unit between venues without full motorized touring hardware. It combines the FLEX projector body with GSM and Wi-Fi connectivity, ready for transport and field deployment. At roughly 48 kg, the UDM is among the lightest projectors in its 30K-lumen class. This configuration suits multi-purpose rooms, auditoriums, and worship spaces that need portable high-brightness 4K projection.

Product Description

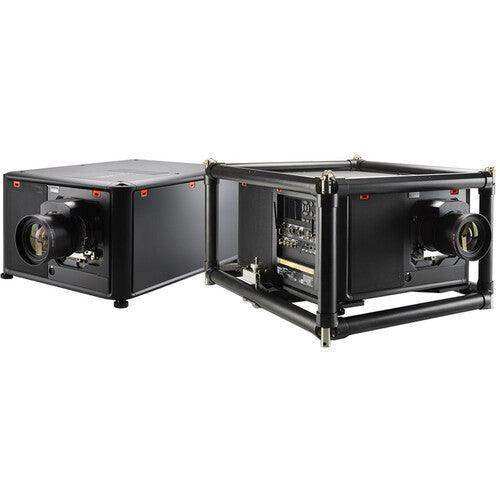

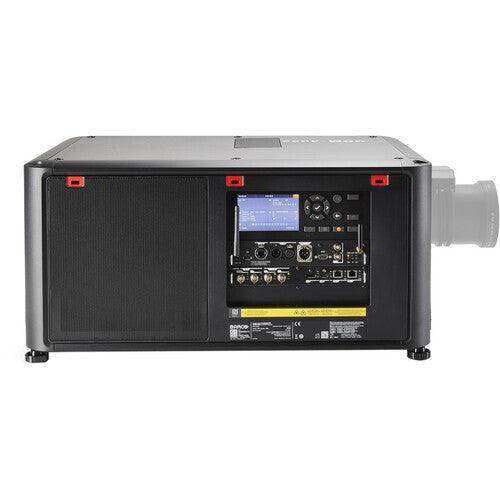

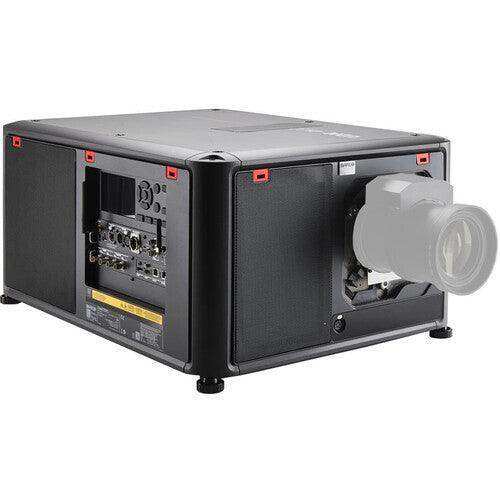

The UDM-4K30 delivers 4K UHD resolution (3,840 x 2,400) from three 0.9-inch DMD chips and a laser phosphor light source, rated at 25,000 ANSI lumens, 25,500 center lumens, and 27,000 ISO lumens. This FRM+FC configuration adds a manual frame for rigging and a protective flight case, but ships without a lens so you can fit the TLD+ optic that matches your throw. The gallery images show the FLEX body, the manual frame, and the flight case used for transport. Built on Barco's Pulse electronics platform, Single Step Processing handles warp, scale, and 4K UHD processing in one pass for low latency and minimal dark time.

Comparing kits? The UDM 4K30 Touring Kit (gen 2) adds a motorized frame and touring peripherals, the UDM 4K30 COMM+LNS (gen 2) includes a lens for fixed installs, and the UDM-4K30 No Lens is the engine-only option. Browse the full Barco collection for related systems.

Key Features

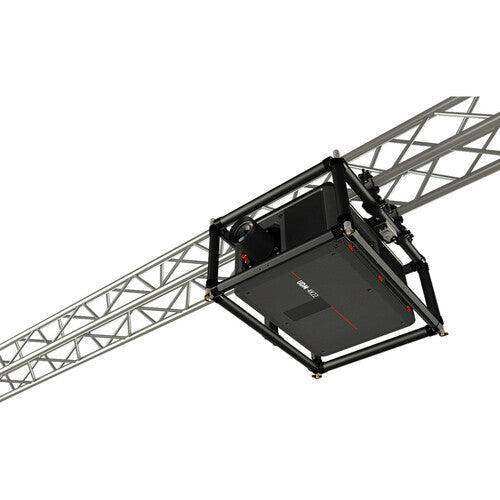

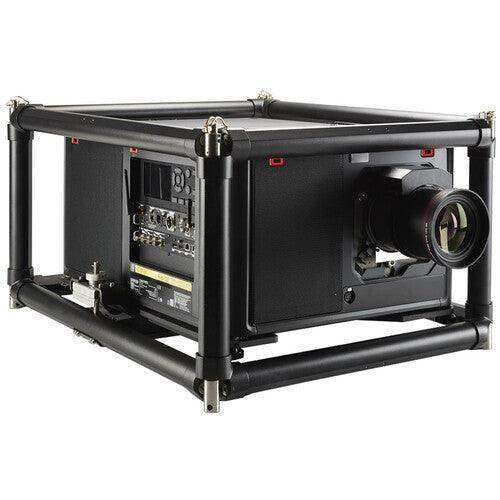

• Frame and flight case included — Manual rigging frame plus a protective flight case for repeated transport.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips render 3,840 x 2,400 resolution with up to 5,120 x 3,200 processing.
• Laser phosphor light source — Inorganic phosphor wheel rated 20,000 hours at 100% laser power, with no lamp changes.
• High brightness — 25,000 ANSI lumens, 25,500 center lumens, and 27,000 ISO lumens.
• FLEX brightness control — Tune and lock brightness or resolution for a specific show.
• Pulse Single Step Processing — Warp, scale, and 4K UHD processing in one step for low latency.
• ScenergiX edge blending — Horizontal and vertical edge blending for multi-projector arrays.
• Wide motorized lens shift — Vertical -100% to +130% and horizontal +/-40%, with position memory.
• Full connectivity — HDBaseT, HDMI 2.0 (HDR10), DisplayPort 1.2, Quad 3G/12G SDI, plus GSM, Wi-Fi, and Barco Insights Management Suite.
• 360-degree orientation — Sealed DLP core and dust filter for any mounting angle.

Typical Applications

• Auditoriums and lecture halls
• Houses of worship
• Large meeting and all-hands rooms
• Multi-purpose and event rooms
• Rental and staging deployments

Technical Specifications

Frequently Asked Questions

Does this configuration include a lens? No. The FRM+FC package ships without a lens. Add the Barco TLD+ lens that matches your throw distance; the range spans 0.37:1 short-throw to 7.5-11.5:1 long-throw.

What is included in this configuration? The package includes the FLEX projector body, GSM and Wi-Fi connectivity, a manual rigging frame, and a flight case.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G SDI. Control is available over RS232, IR, Wi-Fi, GSM, and DMX 512, with the Barco Insights Management Suite for remote monitoring.

Can it be used in a multi-projector blend? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend for aligning multiple UDM units.

What are the power and cooling requirements? The projector runs on 200-240 V at 13.5A (or 120-160 V at reduced brightness), drawing up to 2200 W, with integrated laser cooling and a typical 49 dB(A) noise level.

Is a warranty included? Yes, Barco provides a standard 3-year warranty.
