Barco R9409071-FC BME UDM 4K15 COMM+FRM+FC; Body+GSM+WIFI+Man Frame+FCase

Product Overview

The Barco UDM-4K15 COMM+FRM+FC packages Barco's compact large-venue 4K UHD 3-chip DLP laser phosphor projector with a manual rigging frame and a flight case, rated at 15,000 ISO lumens. It pairs the projector body with integrated GSM and Wi-Fi, ready for transport and field deployment without full motorized touring hardware. The compact, lightweight design reduces shipping and labor costs. This configuration suits multi-purpose rooms, mid-to-large auditoriums, and houses of worship that need portable, high-brightness 4K projection.

Product Description

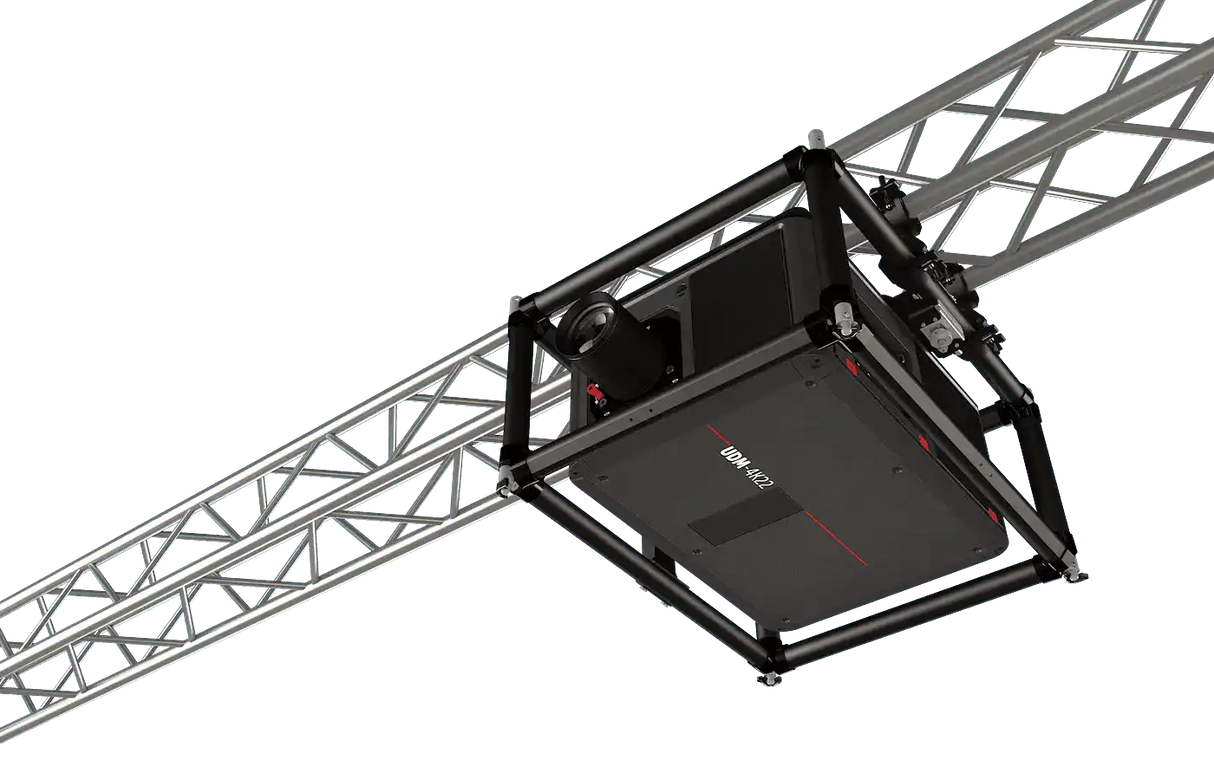

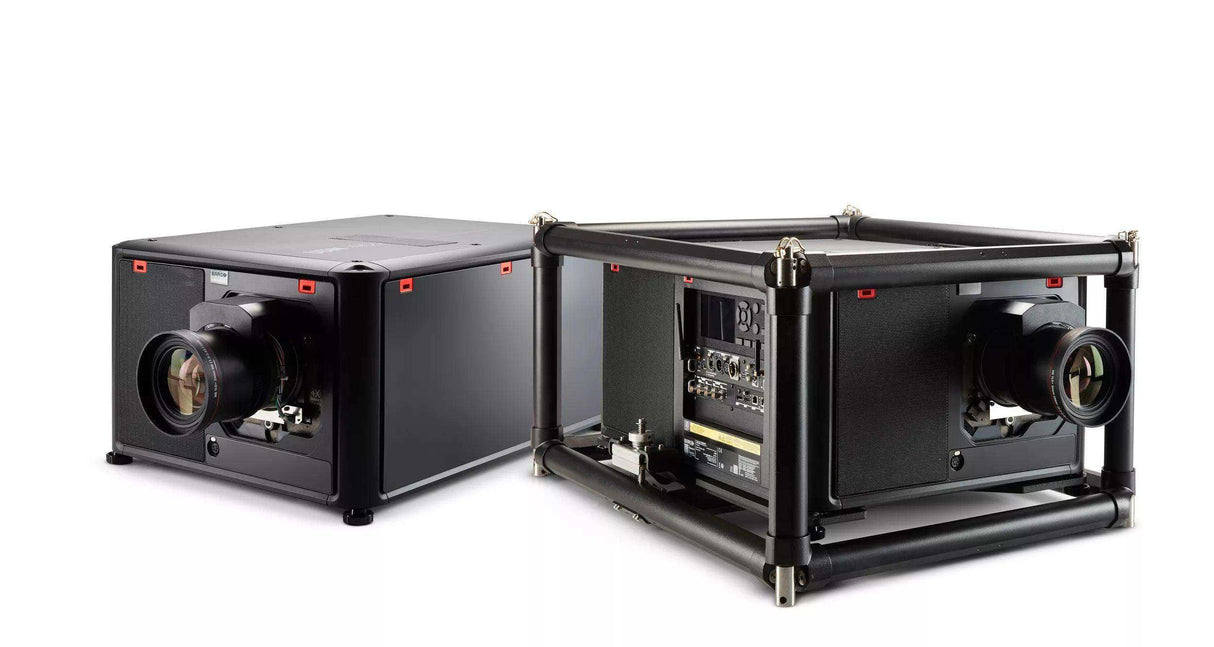

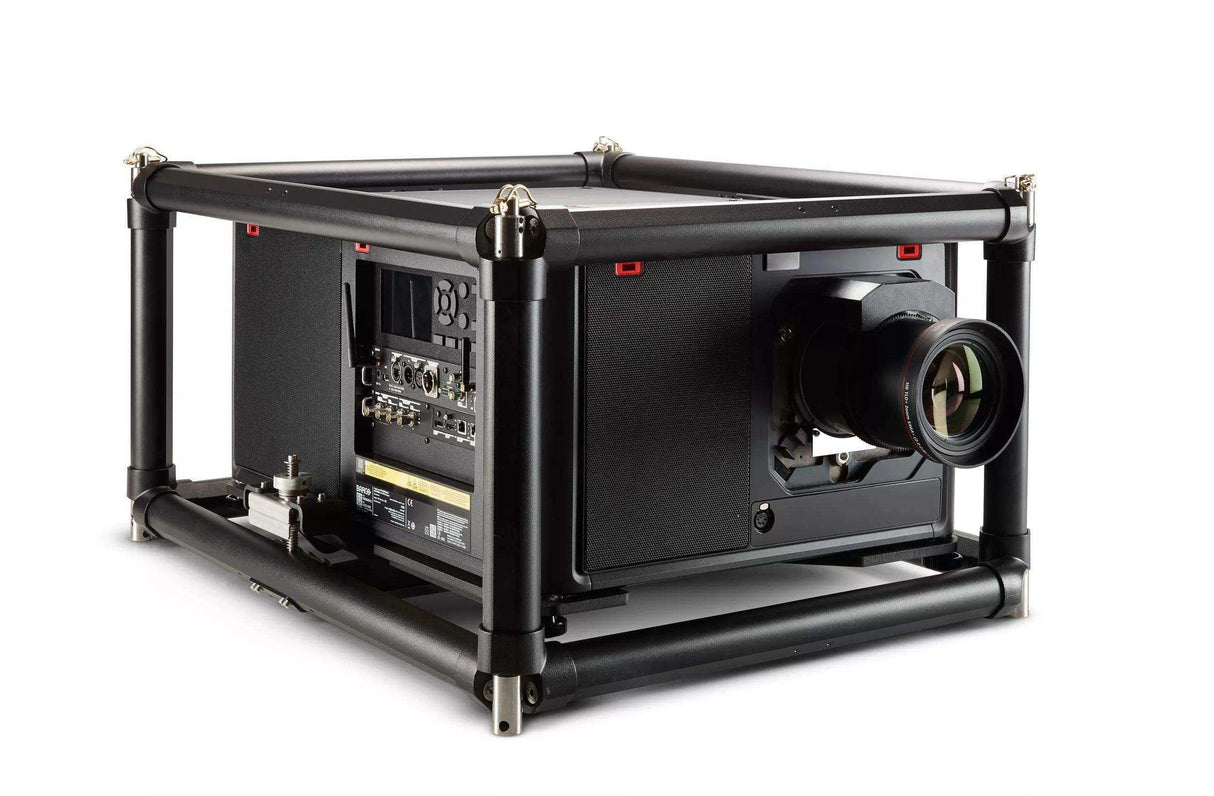

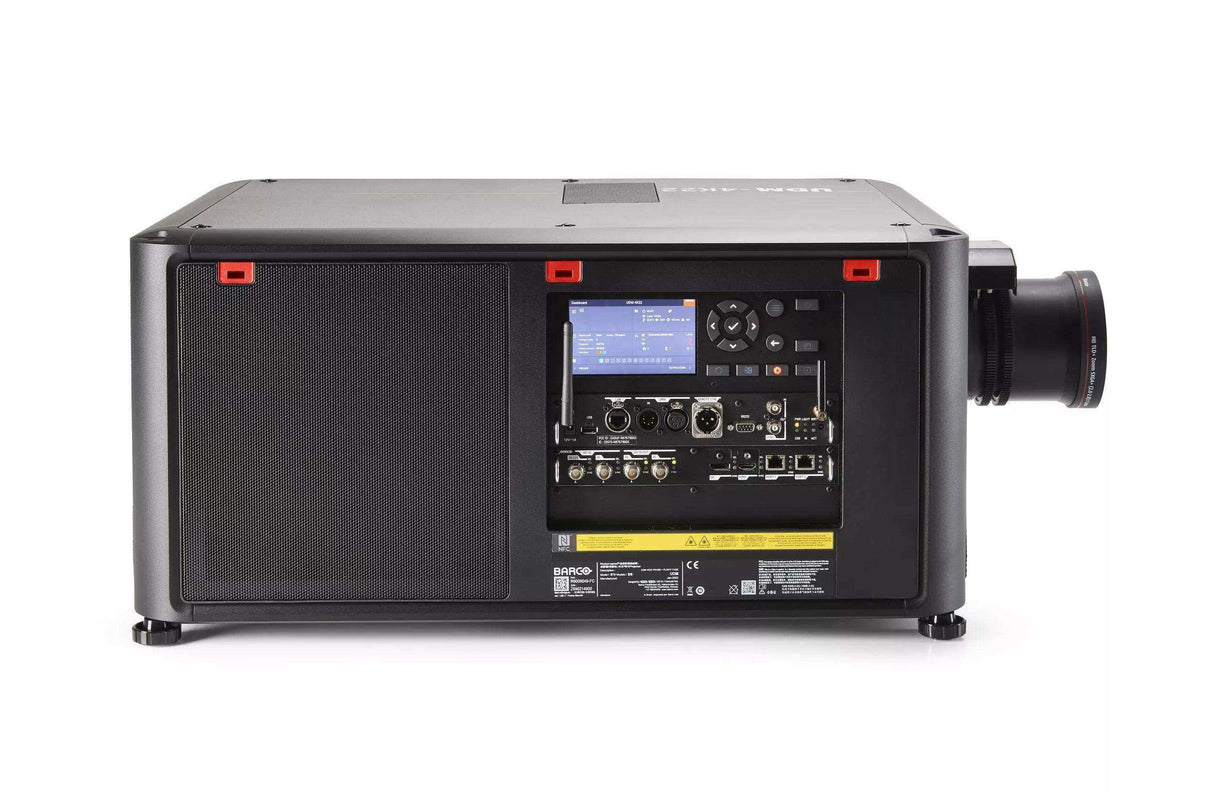

The UDM-4K15 delivers 4K UHD on-screen resolution from a 3-chip 0.9-inch DMD DLP engine with WQXGA (2,560 x 1,600) native chip resolution and a laser phosphor light source, rated at 14,000 ANSI lumens, 14,500 center lumens, and 15,000 ISO lumens. This FRM+FC configuration adds a manual frame for rigging and a protective flight case, and ships without a lens so you can fit the TLD+ optic that matches your throw. The gallery images show the body, manual frame, and flight case. Built on Barco's Pulse electronics platform, Single Step Processing performs warp, scale, and 4K UHD processing in one pass for low latency and minimal dark time.

Comparing kits? The UDM 4K15 Touring Kit adds a motorized frame and touring peripherals, and the engine-only UDM-4K15 No Lens is the base unit. For higher output, see the UDM-4K22 COMM+FRM+FC, or browse the full Barco collection.

Key Features

• Frame and flight case included — Manual rigging frame plus a protective flight case for repeated transport.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips with WQXGA (2,560 x 1,600) native resolution and 4K UHD on-screen output.
• Laser phosphor light source — Solid-state laser phosphor with no lamp changes and reduced maintenance.
• 15K brightness — 14,000 ANSI lumens, 14,500 center lumens, and 15,000 ISO lumens.
• FLEX brightness control — Tune and lock brightness or resolution for a specific show.
• Pulse Single Step Processing — Warp, scale, and 4K UHD processing in one step for low latency.
• Embedded warp and blend — Image warping and edge blending for multi-projector arrays.
• Full connectivity — HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI in/out, plus GSM, Wi-Fi, and Barco Insights Management Suite.
• 360-degree orientation — Supports any mounting angle with integrated laser cooling.
• Constant Light Output — Maintains brightness and color consistency across the projector's life.

Typical Applications

• Auditoriums and lecture halls
• Houses of worship
• Large meeting and all-hands rooms
• Multi-purpose and event rooms
• Rental and staging deployments

Technical Specifications

Frequently Asked Questions

Does this configuration include a lens? No. The FRM+FC package ships without a lens. Add the Barco TLD+ lens that matches your throw distance.

What is included in this configuration? The projector body, integrated GSM and Wi-Fi, a manual rigging frame, and a flight case.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI in and out. Control and monitoring are available over the network, Wi-Fi, and GSM via the Barco Insights Management Suite.

Can it be used in a multi-projector blend? Yes. Embedded image warping and edge blending allow several UDM units to be aligned into a single image.

What about power and cooling? The UDM-4K15 uses integrated laser cooling, and the laser phosphor light source eliminates lamp maintenance; Constant Light Output keeps brightness and color stable over the projector's life.

Is a warranty included? Yes, Barco provides a standard 3-year warranty.
