Barco R9409049-FC BME UDM-4K22 COMM+FRM+FC; Body+GSM+WIFI+Man Frame+FCase

Barco SKU: R9409049-FC
No reviews

Price:
Sale price$72,800.00

Description

BME UDM 4K22 COMM+FRM+FC; Body+GSM+WIFI+Man Frame+FCase

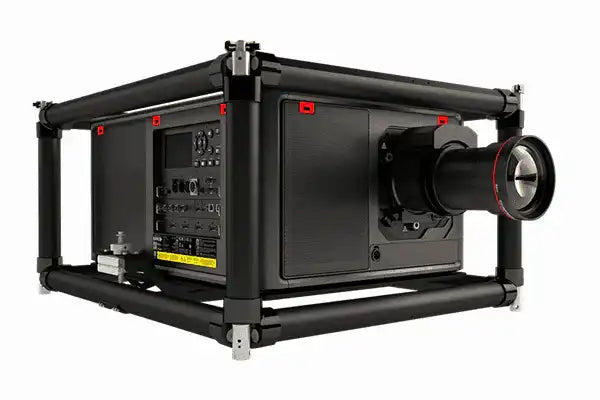

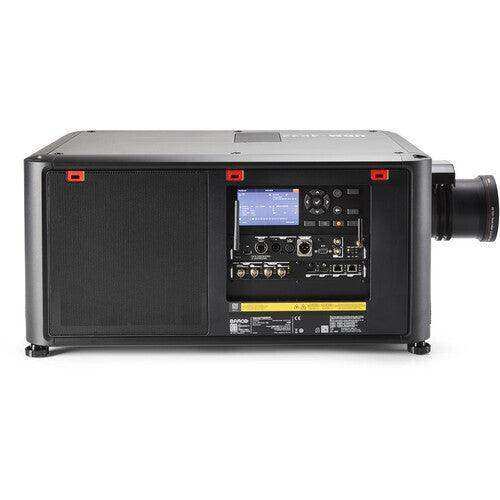

Designed for permanent installation in large venues, the Barco UDM-4K22 19,000-Lumen WQXGA Large Venue Laser 3DLP Projector uses interchangeable lenses to offer a variety of throw distances and image sizes. Its 19,000 ANSI lumens of brightness, combined with its 2200:1 dynamic contrast ratio, can overcome ambient light in most situations. The native WQXGA 2560 x 1600 resolution can be upscaled to 4K UHD 3840 x 2160 and as high as 5120 x 3200 via onboard processing technology to provide clear, detailed images at a variety of image sizes.

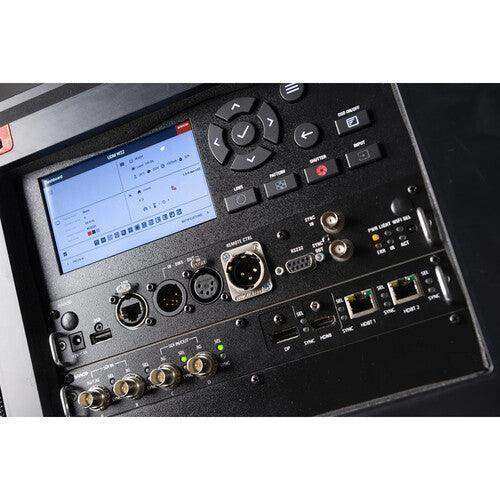

The UDM-4K22 features HDBaseT, HDMI, DisplayPort, and SDI video inputs for input versatility, and supports HDR10 video via HDMI. It can be controlled via DMX, RS-232, Ethernet, compatible apps via onboard Wi-Fi and 3G connectivity, or the included wired/wireless remote control, which features a ruggedized design.

FLEX² This feature lets you tune and lock the brightness level or resolution for a specific show. The projector's modular design also supports fast maintenance and easy service in the field. Pulse Electronics with Single Step Processing With the Barco Pulse Single Step Processing warping technology, scaling and 4K UHD processing is done in just one step to help produce sharp images, low latency, and less dark time. Enhanced Connectivity The UDM series features the Insights Dashboard and remote log file access to enable faster, more effective troubleshooting. You can manage the brightness settings of the projector fleet and keep track of operating conditions through a secured cloud-based platform and integrated 3G connectivity. Designed to Last Long With its laser phosphor light source, image flicker and lamp related cost and maintenance are virtually eliminated. Integrated laser cooling helps prevent overheating, and Constant Light Output functionality helps provide constant brightness and color across the projector's lifetime.
  • Rugged design
  • High brightness design for impactful high-resolution experiences with vibrant color
  • Engineered to outperform the Rec.709 color space
  • 3D-ready with separately available compatible 3D glasses
  • Barcolink
  • Suitable for 24/7 operation
  • Warping
  • ScenergiX horizontal and vertical edge blending
  • Compatible with various lenses
  • Vertical lens shift from -100 to 130% depending on lens used
  • Horizontal lens shift up to ±40% depending on lens used
  • Motorized zoom and focus; lens memory on TLD lenses
  • Motorized lens shift with position memory
  • P7 color correction
  • Inorganic phosphor wheel
  • Digital optical dowser
  • Two-source simultaneous picture-by-picture
  • Sealed DLP core
  • 360° orientation
  • DMX 512
  • WARP direct adjust OSD + toolset
  • Keystone correction
  • Integrated web server
  • 600 MHz max pixel clock
  • Projector Toolset and Android & iOS apps
  • Wired XLR, IR, RS232, Wi-Fi, and GSM control via integrated 3G
  • Optional Quad DP1.2 & Fiber SFP inputs

Barco UDM-4K22 Specs

Image Display
Display System 3-Chip 0.9" DLP
Native Chip Resolution 2560 x 1600 (WQXGA)
On-Screen Resolution Up to 5120 x 3200 via Pixel-Shift Technology
Supported Resolutions 3840 x 2400
Maximum Brightness 19,000 Lumens (ANSI)
20,000 Lumens (Center)
22,000 Lumens (ISO)
Uniformity 95%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 2200:1
DLP Link 3D Yes
Features
Supported HDR Input Formats HDR10
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs 1 x RJ45 (HDBaseT) Audio, Control, Data, LAN, Video
1 x HDMI 2.0 Audio, Video Input
1 x DisplayPort 1.2 Audio, Video Input
1 x 3BNC (12G-SDI) Video Input
Number of Expansion Slots 1
Hardware
Wireless LAN / Wi-Fi Yes, Built-in
Bluetooth None
General
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Fan Noise Medium Brightness: 49 dB
AC Input Power 120 to 240 VAC, 50 / 60 Hz
Heat Dissipation Full Brightness: 6900 BTU
Power Consumption Full Brightness: < 2400 W
Standby Mode (Lamp Off): < 2 W
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 80%
Dimensions (W x H x D) 28.5 x 13.3 x 21.3" / 725.0 x 339.0 x 540.0 mm
Weight 105 lb / 47.6 kg
