Barco UDM-4K15 15,000-Lumen UHD 4K Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9409071-BU

Product Overview

The Barco UDM-4K15 (R9409071-BU) is the engine-only version of Barco's compact large-venue 4K UHD 3-chip DLP laser phosphor projector, rated at 15,000 ISO lumens and supplied without a lens. It includes integrated GSM and Wi-Fi connectivity, making it a ready base unit for fixed installs and custom rigging in the 15K-lumen class. The compact, lightweight design reduces shipping and labor costs while keeping image quality high. The UDM-4K15 suits mid-to-large auditoriums, houses of worship, and large meeting rooms that already have a lens and mounting plan.

Product Description

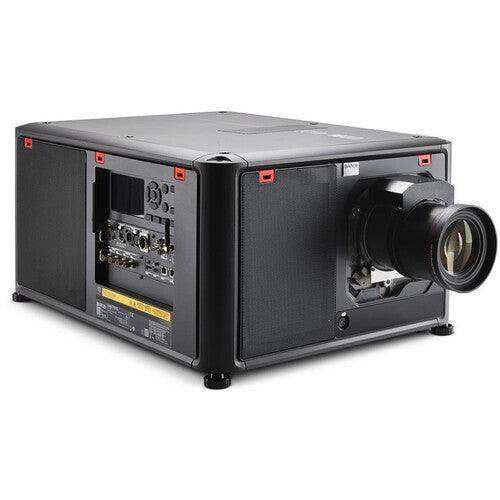

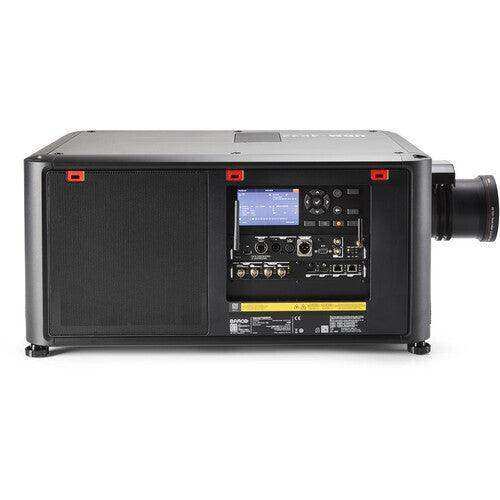

The UDM-4K15 delivers 4K UHD on-screen resolution from a 3-chip 0.9-inch DMD DLP engine with WQXGA (2,560 x 1,600) native chip resolution, driven by a laser phosphor light source rated at 14,000 ANSI lumens, 14,500 center lumens, and 15,000 ISO lumens. As the no-lens BU SKU, it provides the projector body with GSM and Wi-Fi but without a lens, frame, or flight case. The gallery images show the chassis and lens mount. Built on Barco's Pulse electronics platform, Single Step Processing performs warp, scale, and 4K UHD processing in one pass for low latency and minimal dark time.

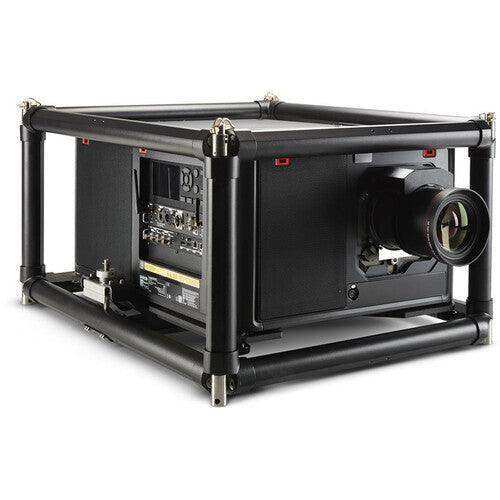

For complete packages, compare the UDM 4K15 COMM+FRM+FC with manual frame and flight case, or the UDM 4K15 Touring Kit for rental and staging. For higher output, see the UDM-4K22 No Lens, and browse the full Barco collection.

Key Features

• Engine-only configuration — Projector body with GSM and Wi-Fi, no lens, frame, or case, for custom integration.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips with WQXGA (2,560 x 1,600) native resolution and 4K UHD on-screen output.
• Laser phosphor light source — Solid-state laser phosphor with no lamp changes and reduced maintenance.
• 15K brightness — 14,000 ANSI lumens, 14,500 center lumens, and 15,000 ISO lumens.
• FLEX brightness control — Tune and lock brightness or resolution for a specific application.
• Pulse Single Step Processing — Warp, scale, and 4K UHD processing in one step for low latency.
• Embedded warp and blend — Image warping and edge blending for multi-projector arrays.
• Full connectivity — HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI in/out, plus GSM, Wi-Fi, and Barco Insights Management Suite.
• 360-degree orientation — Supports any mounting angle with integrated laser cooling.
• Constant Light Output — Maintains brightness and color consistency across the projector's life.

Typical Applications

• Auditoriums and lecture halls
• Houses of worship
• Large meeting and all-hands rooms
• Multi-purpose rooms with edge-blended projection
• Broadcast and presentation studios

Technical Specifications

Frequently Asked Questions

Does this include a lens? No. This engine-only configuration ships without a lens. Add the Barco TLD+ lens that matches your throw distance.

What is included in this configuration? The projector body with integrated GSM and Wi-Fi connectivity (R9409071-BU). It does not include a lens, frame, or flight case.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI in and out. Control and monitoring are available over the network, Wi-Fi, and GSM via the Barco Insights Management Suite.

Can it be used in a multi-projector blend? Yes. Embedded image warping and edge blending allow several UDM units to be aligned into a single image.

What about power and cooling? The UDM-4K15 uses integrated laser cooling, and the laser phosphor light source eliminates lamp maintenance; Constant Light Output keeps brightness and color stable over the projector's life.

Is a warranty included? Yes, Barco provides a standard 3-year warranty.
