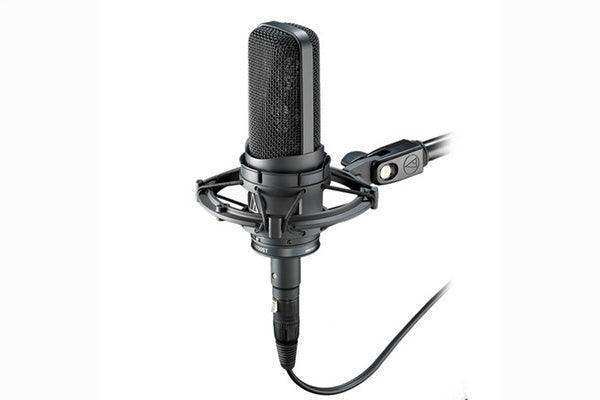

Audio-Technica AT4050ST Side-address stereo condenser microphone

Product Overview

The Audio-Technica AT4050ST is a single-point stereo condenser microphone that captures wide, mono-compatible stereo from one position. It combines an independent cardioid element and a figure-of-eight element in a mid-side arrangement with switch-selectable internal matrixing, making it a versatile stereo condenser microphone for broadcast studios, auditoriums, and houses of worship. A shockmount is included for isolated mounting.

Product Description

The AT4050ST builds on the acclaimed AT4050 capsule, placing a cardioid (mid) and a figure-of-eight (side) element on a single axis so the stereo image is phase-coherent and collapses cleanly to mono. Internal matrixing lets an engineer output discrete mid-side or a switch-selected stereo width without an external matrix box.

Switchable 10 dB pad and 80 Hz high-pass filter let the microphone adapt to loud sources and control low-frequency rumble. It is well suited to room and ambience capture, ensembles, and overheads where a single-point stereo image is preferred.

For mono multi-pattern work, the AT4050 multi-pattern condenser shares the same element family, and the AT4047MP offers a vintage-voiced multi-pattern alternative. The AT4050ST requires 48V phantom power.

Key Features

• Single-point mid-side stereo — Cardioid and figure-of-eight elements on one axis capture a phase-coherent, mono-compatible stereo image from a single position.
• Switch-selectable internal matrixing — Built-in matrixing outputs discrete mid-side or selectable stereo width without an external matrix box.
• Switchable 10 dB pad — The pad extends headroom for loud sources without overloading the input.
• Switchable 80 Hz high-pass filter — An integral filter controls low-frequency rumble and proximity buildup.
• Included shockmount — A shockmount isolates the microphone from stand-borne vibration in the studio.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What is mid-side stereo and why use it?

Mid-side places a forward cardioid (mid) and a sideways figure-of-eight (side) on one axis; matrixing the two yields a stereo image whose width can be adjusted and that collapses cleanly to mono, which is ideal for broadcast.

Do I need an external matrix box?

No. The AT4050ST includes switch-selectable internal matrixing, so it can output a ready stereo signal or discrete mid-side for matrixing at the console.

Does it require phantom power?

Yes. It requires 48V phantom power from your console, interface, or DSP.

What is it best used for?

Single-point stereo capture of rooms, ensembles, overheads, and ambience where a coherent, mono-compatible stereo image is needed.

Is a shockmount included?

Yes. A shockmount is supplied to isolate the microphone from stand and floor vibration.

What warranty applies?

Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
