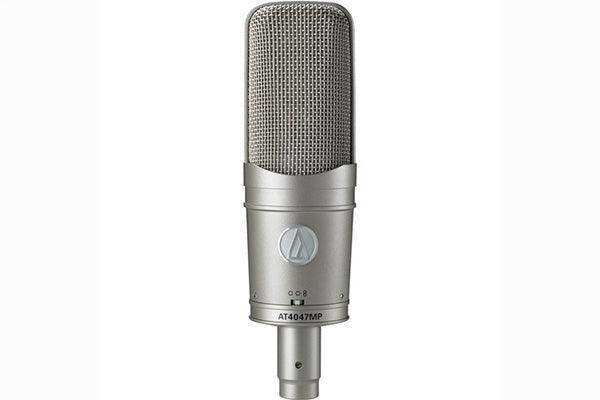

Audio-Technica AT4047MP Side-address multi-pattern condenser microphone

Product Overview

The Audio-Technica AT4047MP is a multi-pattern studio condenser microphone with a transformer-coupled output and a vintage-voiced character. Three switchable polar patterns — cardioid, omnidirectional, and figure-of-eight — make it a flexible large-diaphragm condenser for vocals, instruments, and room capture in broadcast studios and auditoriums. High SPL handling supports close placement on loud sources.

Product Description

The AT4047MP extends the warm, vintage-leaning sound of the AT4047 with three switchable patterns, so a single microphone covers focused cardioid pickup, natural omnidirectional capture, and figure-of-eight techniques. The transformer-coupled output contributes to its smooth, full character.

It handles up to 155 dB SPL (165 dB with the 10 dB pad) with a 141 dB dynamic range, so it performs on quiet sources and loud instruments alike. This versatility suits vocals, acoustic instruments, overheads, and room miking.

For a fixed-cardioid version, the AT4047/SV cardioid condenser shares the voicing, while the AT4050 offers a more neutral multi-pattern alternative. The AT4047MP requires 48V phantom power.

Key Features

• Three switchable patterns — Cardioid, omnidirectional, and figure-of-eight patterns let one microphone cover focused, natural, and stereo-technique capture.
• Vintage-voiced character — A transformer-coupled output contributes a warm, full sound favored on vocals and instruments.
• High SPL handling — Handling up to 155 dB SPL (165 dB with the pad) supports close placement on loud sources.
• Wide dynamic range — A 141 dB dynamic range captures quiet detail and loud transients cleanly.
• Large-diaphragm studio design — The 40 Series large-diaphragm element delivers detailed, professional reproduction.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What are the three polar patterns for?

Cardioid focuses on the source and rejects off-axis sound; omnidirectional captures natural, open sound; figure-of-eight rejects the sides and supports stereo techniques like blumlein and mid-side.

What makes the AT4047MP sound 'vintage'?

Its transformer-coupled output and tuned element give a warm, full character often associated with classic studio condensers.

Does it require phantom power?

Yes. It requires 48V phantom power from your console, interface, or DSP.

Can it handle loud instruments?

Yes. It handles up to 155 dB SPL, or 165 dB with the 10 dB pad engaged.

How does it integrate into our system?

It connects on standard 3-pin XLR to a phantom-powered channel on your mixer or DSP.

What warranty applies?

Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
