Atlas Sound IED570CDT-H – GLOBALCOM Digital Communication Station
What is the Atlas Sound IED570CDT-H?

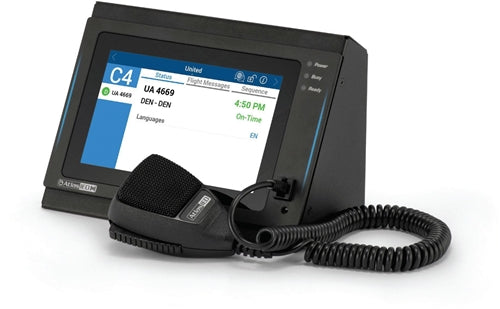

The IED570CDT-H is a fully programmable touchscreen digital communication station with a handheld microphone for initiating audio/visual announcements, messages, and pages with GLOBALCOM Series Announcement Control Systems, in a CobraNet desktop configuration.
How does the Atlas Sound IED570CDT-H work?
An electret condenser cartridge is positioned in the housing for enhanced frequency response and strong acoustical coupling, producing a full-bodied, intelligible voice signal without the boomy character of close-talk use. As a network appliance, the station can obtain its IP address automatically or be assigned one manually, simplifying setup within managed AV/IT infrastructure. Redundant Ethernet ports and PoE power support streamlined installation, and dedicated power, busy, and ready LEDs give at-a-glance status, with continuous microphone supervision reporting a failed mic before it compromises an emergency page. An auxiliary line-level input supports local background music, and a line-level output serves as a zone feed.
What are the key features of the Atlas Sound IED570CDT-H?
- CobraNet digital audio — Compatible with CobraNet-based GLOBALCOM controllers.
- Desktop form factor — Free-standing placement at a control point or desk.
- Microphone supervision — Reports a failed mic before it affects paging.
- Redundant Ethernet, PoE powered — Simplified, resilient network installation.
- Aux line input/output — Local background music source and zone-out feed.
Where is the Atlas Sound IED570CDT-H typically used?
- Government space
- Multi-purpose room
- Broadcast studio
Technical Specifications
| Network Audio | CobraNet |
| Form Factor | Desktop, handheld mic |
| Power | PoE (IEEE 802.3af), 48V; optional 24/48VDC auxiliary, 6.7W max |
| Mic Frequency Response | 22Hz–22kHz, ±0.5dB |
| Mic S/N Ratio | >85dB |
| Network | Redundant Ethernet, auto or static IP |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available in flush mount (IED570CFM-H) and Dante (IED570DDT-H). See the Atlas Sound collection.
Frequently Asked Questions
What's the difference between DT and FM models?
DT is the desktop free-standing version; FM is the flush-mount version for the same station.
What's the difference between C and D models?
C uses CobraNet digital audio; D uses Dante.
What warranty applies?
36 months from date of purchase.
