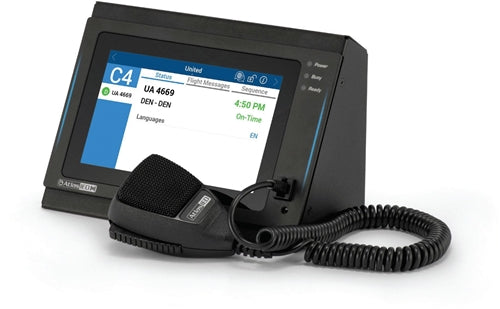

Atlas Sound IED570CFM-H – GLOBALCOM Digital Communication Station
What is the Atlas Sound IED570CFM-H?
The IED570CFM-H is a fully programmable touchscreen digital communication station with a handheld microphone, built for flush-mount installation into a control room, wall, or dispatch point wired into a CobraNet GLOBALCOM system.
How does the Atlas Sound IED570CFM-H work?
Identical electronics to the IED570CDT-H desktop model, in a flush-mount enclosure for clean integration into a wall or console. An electret condenser microphone cartridge is positioned for enhanced acoustical coupling, redundant Ethernet ports and PoE power support resilient network installation, and continuous microphone supervision reports a failed element before it affects paging. An auxiliary line-level input supports local background music, and a line-level output serves as a zone feed.
What are the key features of the Atlas Sound IED570CFM-H?
- CobraNet digital audio — Compatible with CobraNet-based GLOBALCOM controllers.
- Flush-mount enclosure — Clean wall or console integration.
- Microphone supervision — Reports a failed mic before it affects paging.
- Redundant Ethernet, PoE powered — Simplified, resilient network installation.
Technical Specifications
| Network Audio | CobraNet |
| Form Factor | Flush mount, handheld mic |
| Power | PoE (IEEE 802.3af), 48V; optional 24/48VDC auxiliary, 6.7W max |
| Mic S/N Ratio | >85dB |
| Network | Redundant Ethernet, auto or static IP |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available in desktop (IED570CDT-H) and Dante flush mount (IED570DFM-H). See the Atlas Sound collection.
Frequently Asked Questions
Is a wall cutout needed?
Yes, the flush-mount enclosure installs into a wall or console cutout rather than sitting on a desktop.
What warranty applies?
36 months from date of purchase.
