Atlas Sound IED570DDT-H – GLOBALCOM Digital Communication Station
What is the Atlas Sound IED570DDT-H?

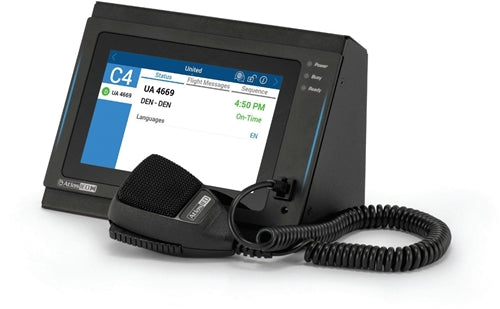

The IED570DDT-H is a fully programmable touchscreen digital communication station with a handheld microphone, in a Dante desktop configuration for GLOBALCOM Series Announcement Control Systems.
How does the Atlas Sound IED570DDT-H work?
An omnidirectional electret condenser microphone with integrated preamplifier and audio line driver is positioned for strong acoustical coupling, delivering a clear, intelligible voice signal. As a network appliance, it obtains its IP address automatically or via manual assignment, and redundant Ethernet ports with PoE power support resilient, streamlined installation in transportation hubs, campuses, and commercial buildings. An auxiliary line-level input supports local background music, and a line-level output serves as a zone feed.
What are the key features of the Atlas Sound IED570DDT-H?
- Dante digital audio — Compatible with Dante-based GLOBALCOM controllers.
- Desktop form factor — Free-standing placement at a control point or desk.
- Omnidirectional handheld mic — Integrated preamp and line driver for a clean signal.
- Redundant Ethernet, PoE powered — Simplified, resilient network installation.
Where is the Atlas Sound IED570DDT-H typically used?
- Government space
- Multi-purpose room
Technical Specifications
| Network Audio | Dante |
| Form Factor | Desktop, handheld mic |
| Power | PoE (IEEE 802.3af), 48V; optional 24/48VDC auxiliary, 6.7W max |
| Mic S/N Ratio | >85dB |
| Network | Redundant Ethernet, auto or static IP |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available as flush mount (IED570DFM-H) and CobraNet (IED570CDT-H). See the Atlas Sound collection.
Frequently Asked Questions
What's the difference between C and D models?
C uses CobraNet; D uses Dante.
What warranty applies?
36 months from date of purchase.
