AMX DGX800-ENC – Enova DGX 800 Matrix Switcher Enclosure (8-Slot)
Product Overview
The AMX DGX800-ENC is the smallest Enova DGX series chassis — an 8-slot modular matrix switcher enclosure supporting up to 8 input/output boards for scalable HDMI, DXLink twisted pair, DXLink fiber, and DVI signal routing. It is the entry point for large-venue AMX matrix switching infrastructure in auditoriums, broadcast facilities, and multi-room enterprise AV systems.
Product Description

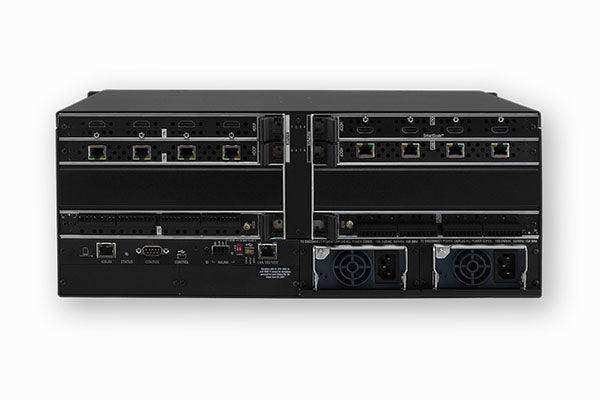

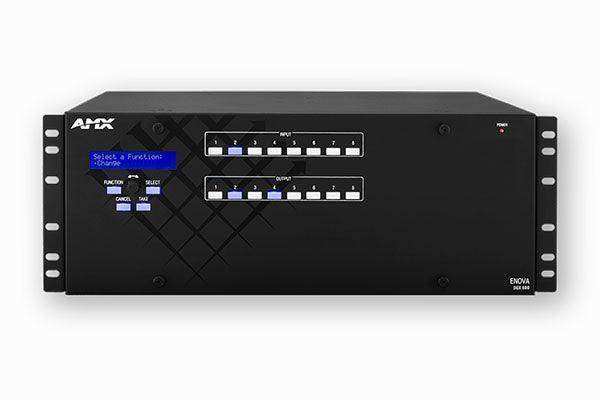

The AMX DGX800-ENC Enova DGX 800 modular matrix switcher provides up to 8 slots for field-installable I/O boards — including HDMI 4K60, DXLink 4K60 twisted pair, DXLink 4K60 fiber, and DVI input and output boards — enabling a scalable, high-bandwidth AV matrix switch for large-venue and enterprise multi-room AV distribution. The DGX enclosure includes a built-in NetLinx control processor for system management and integrates with RMS Enterprise for centralized remote monitoring. Its modular architecture allows the system to be configured with the exact input and output types needed and expanded as requirements grow, without replacing the enclosure chassis. The DGX800-ENC suits auditoriums, higher education facilities, large corporate campuses, and broadcast environments requiring a professional-grade modular AV matrix switcher at the entry point of the Enova DGX family.
Key Features
- 8-slot modular chassis — Mix and match HDMI, DXLink twisted pair, DXLink fiber, and DVI I/O boards.
- Supports 4K60 4:4:4 HDR boards — Full 4K signal path with DGX-I/O-HDMI-4K60 and DGX-I/O-DXL-4K60 boards.
- Built-in NetLinx controller — Integrated system control and management.
- RMS Enterprise compatible — Centralized remote monitoring for fleet management.
- Scalable modular design — Start small, add boards as needs grow without chassis replacement.
- Dante audio optional — DGX-ASB and DGX-ASB-DAN audio switching boards available.
Typical Applications
- University AV distribution hub
- Corporate campus multi-room matrix switch
- Auditorium and performing arts AV routing
- Broadcast and production facility signal distribution
- Government and command center AV matrix
Competitor Comparison
| Feature | AMX DGX800-ENC | Crestron DM-MD8x8-CPU3 | Extron XTP CrossPoint 3200 |
|---|---|---|---|
| Slots | 8 | Fixed 8x8 | Modular |
| 4K60 Support | ✓ Via boards | ✓ Yes | ✓ Yes |
| Built-in Controller | ✓ NetLinx | ✓ Crestron 3-Series | ✗ No |
| Dante Audio | ✓ Optional board | ✗ No | ✗ No |
| Fiber I/O Support | ✓ Yes | ✗ No | ✓ Yes |
The DGX800-ENC's modular architecture, built-in NetLinx controller, and optional Dante audio integration differentiate it from fixed-matrix competitors. For larger installations, the DGX1600-ENC, DGX3200-ENC, and DGX6400-ENC scale to 16, 32, and 64 slots.
Technical Specifications
| Specification | Value |
|---|---|
| I/O Slots | 8 |
| Compatible Boards | HDMI, DXLink TP, DXLink Fiber, DVI, ASB, ASB-DAN |
| Controller | Built-in NetLinx |
| Remote Management | RMS Enterprise |
| Form Factor | Rack-mount chassis |
| SKU | FG1061-08-FX |
