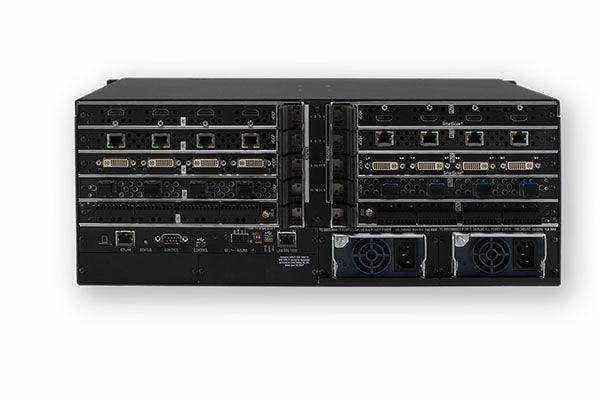

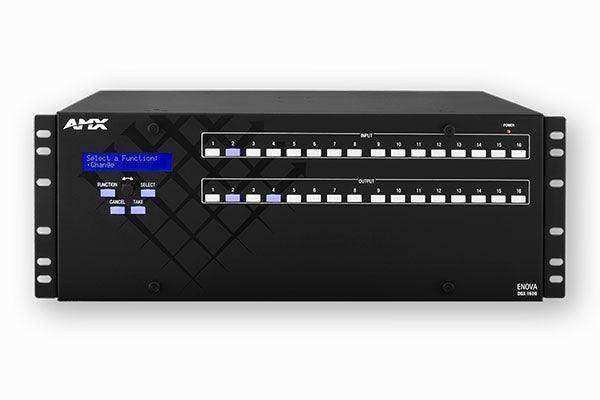

AMX DGX1600-ENC – Enova DGX 1600 Matrix Switcher Enclosure (16-Slot)
AMX DGX1600-ENC – Enova DGX 1600 Matrix Switcher Enclosure (16-Slot) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX DGX1600-ENC – Enova DGX 1600 Matrix Switcher Enclosure (16-Slot)
Product Overview
The AMX DGX1600-ENC is the 16-slot Enova DGX modular matrix switcher chassis — doubling the I/O capacity of the DGX800-ENC for larger multi-room AV distribution systems in higher education, corporate campuses, government facilities, and broadcast environments requiring more than 8 input/output board positions.
Product Description
The AMX DGX1600-ENC Enova DGX 1600 modular matrix switcher provides 16 slots for I/O boards — supporting HDMI 4K60, DXLink 4K60 twisted pair, DXLink 4K60 fiber, DXLink fiber, and DVI input and output boards in any combination — for large-venue AV signal distribution at up to 16 independent routing paths. The built-in NetLinx control processor manages the matrix and supports RMS Enterprise for remote monitoring and diagnostics across enterprise-scale deployments. Like all Enova DGX enclosures, the DGX1600-ENC accepts optional Dante audio switching boards (DGX-ASB and DGX-ASB-DAN) for integrated audio over IP within the same chassis. It is the recommended step-up from the DGX800-ENC for facilities with more than 8 source or destination endpoints requiring professional modular 4K AV matrix infrastructure.
Key Features
- 16-slot modular chassis — Supports up to 16 I/O boards in any mix of supported types.
- 4K60 4:4:4 HDR signal support — Via HDMI-4K60 and DXLink-4K60 boards.
- Built-in NetLinx controller — Integrated system control and RMS Enterprise.
- Optional Dante audio boards — ASB and ASB-DAN boards for audio-over-IP routing.
- DXLink fiber support — Long-distance signal routing across buildings or campuses.
Typical Applications
- University multi-building AV distribution
- Corporate campus 16-endpoint AV matrix
- Government multi-room signal routing
- Broadcast facility with large I/O count
Technical Specifications
| Specification | Value |
|---|---|
| I/O Slots | 16 |
| Compatible Boards | HDMI, DXLink TP, DXLink Fiber, DVI, ASB, ASB-DAN |
| Controller | Built-in NetLinx |
| SKU | FG1061-16-FX |
