AMX DGX6400-ENC – Enova DGX 6400 Matrix Switcher Enclosure (64-Slot)
Product Overview

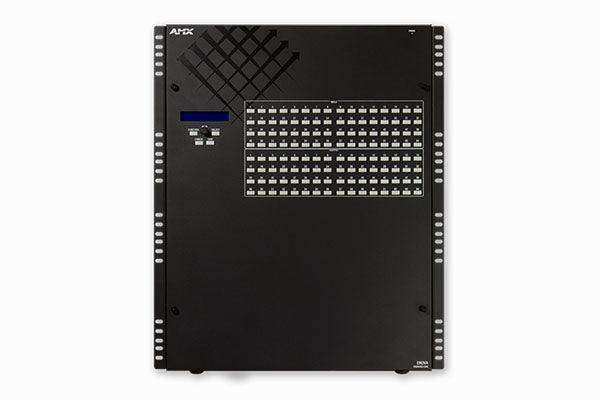

The AMX DGX6400-ENC is the flagship Enova DGX matrix switcher enclosure — a 64-slot modular chassis representing the highest I/O density in the DGX series, designed for the most demanding large-scale AV distribution systems in major performing arts venues, university campuses, government facilities, and broadcast operations requiring 4K signal routing at enterprise scale.
Product Description

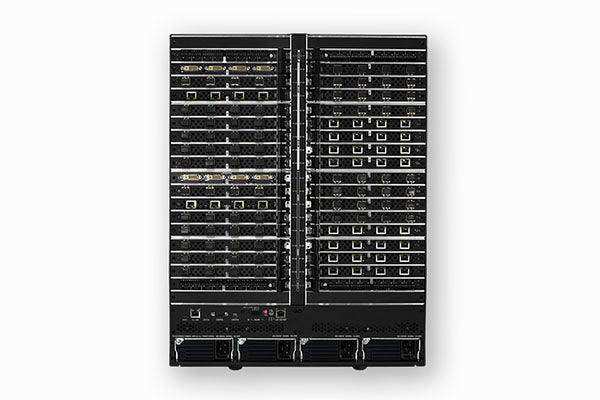

The AMX DGX6400-ENC Enova DGX 6400 modular AV matrix switcher provides 64 I/O board positions — the largest in the DGX product family — for high-density 4K60 AV signal routing across enterprise and institutional installations that require more than the 32-slot DGX3200-ENC can provide. It accepts HDMI 4K60, DXLink 4K60 twisted pair, DXLink 4K60 fiber, DXLink fiber, and DVI boards in any combination across all 64 positions, with 4K60 4:4:4 HDR signal integrity and HDCP 2.2 compliance throughout. Dante audio routing is supported via the optional DGX6400-ASB-DAN board. The onboard NetLinx processor manages the matrix with full RMS Enterprise integration for centralized monitoring and diagnostics. The DGX6400-ENC is specified for major performing arts centers, university AV distribution infrastructure, government buildings with campus-wide AV routing requirements, and large broadcast facilities.
Key Features
- 64-slot modular chassis — Maximum I/O density in the Enova DGX family.
- 4K60 4:4:4 HDR, HDCP 2.2 — Full 4K across all 64 board positions.
- Dante audio via DGX6400-ASB-DAN board — Audio-over-IP routing at enterprise scale.
- Built-in NetLinx + RMS Enterprise — Onboard control and centralized fleet management.
- DXLink fiber support — Inter-building and campus-wide routing over fiber.
Typical Applications
- Major performing arts center AV distribution
- University campus AV hub with 50+ endpoints
- Government legislative complex multi-room routing
- Broadcast facility large-scale signal matrix
- Enterprise headquarters campus AV infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| I/O Slots | 64 |
| 4K60 Support | Yes (HDMI-4K60, DXL-4K60 boards) |
| Dante Audio | Optional (DGX6400-ASB-DAN board) |
| Controller | Built-in NetLinx |
| SKU | FG1061-64-FX |
