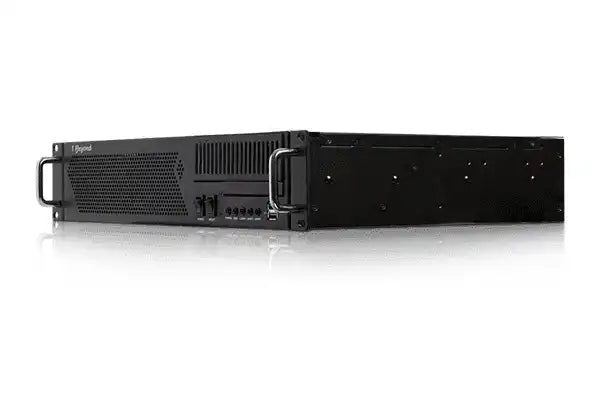

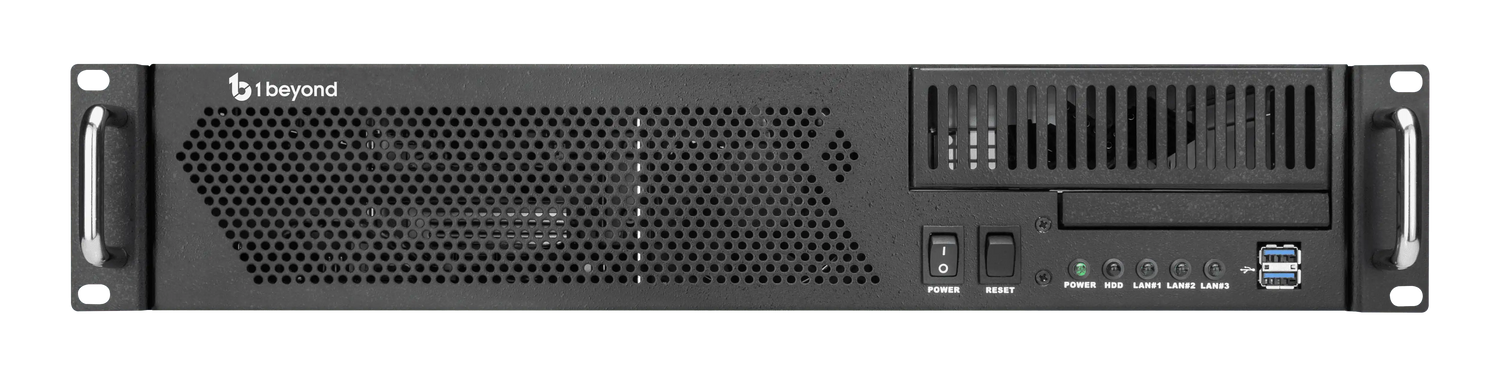

1 beyond IV-SAM-VXS-1B Automate VX Voice-Activated, Multi-Camera Switching Solution

1 beyond SKU: IV-SAM-VXS-1B
No reviews
Price:
$7,995.00

Description

The 1 beyond IV-SAM-VXS-1B Automate™ VX is a voice-activated camera switching solution that brings the full multi-camera studio experience to meetings, town halls, and classrooms. Camera switching and movement is done automatically based on the active speaking participant. Automate VX comes with built-in recording and streaming capability along with the outputs for video conferencing.

Professional Services
The 1 Beyond Automate system requires the purchase of 1 Beyond Camera Systems Remote Professional Services.

An Equipment Proposal issued by the Crestron Sales Support Services team is required before placing an order for IV-SAM-VXS-1B. All orders must reference the Equipment Proposal number and include the complete camera system outlined in the Equipment Proposal, including Professional Services.

NOTE: The Equipment Proposal will include the required 1 Beyond cameras, Automate VX system, and 1 Beyond Camera Systems Remote Professional Services. It will also identify third-party equipment, such as microphones, which are necessary to complete the system and must be purchased separately from the applicable manufacturer, based upon the information provided regarding room size, furniture layout, and design specifics.

Visit IV-PROSERVICE-1B for more details.

Improved Video for Meetings
See who is speaking with close-up camera shots. Clean production-style camera switching provides a more engaging experience for remote participants or viewers.

Voice-Activated Switching
Hands-free operation uses data from the room microphones to locate the active speaking participant. Camera switching is determined by the mic type used.

Adapts to Room Sizes and Uses
Cameras can be located throughout the room for best camera angles. Room configurations can be set to accommodate different furniture layouts with a single button push.

Graphics, Titles, and Layouts
Combine multiple sources, superimpose titles and add custom graphics. A graphical user interface allows for custom layouts, not just picture in picture or side by side.

RESTful API for Crestron® and Third-Party Control
Enable auto-switching, record/stream, and change room configurations or layouts using a Crestron® control module. An adaptable API is available for customizable user-interfaces on third-party control systems.

Conference, Stream, and/or Record
In addition to high quality output for hard or soft codecs, the system has a built-in encoder and recorder to enable multiple live streams and over 100 hours of recording.

Room Designer Web Interface
The Room Designer tool provides the ability to design and configure meeting spaces. The browser interface is used to help choose the best position for a variety of cameras and microphones within a room.


  • Automatic camera switching based on the active speaker
  • Supports up to 12 Cameras for multi-camera video with broadcast-style cuts
  • Intelligent video algorithm follows the conversation enabling smooth transitions between participants
  • NDI® Compatible (IP video over the network)
  • Three HD-SDI Inputs
Automate VX Capabilities
Titles, Graphics, Layouts Titles, logos, backgrounds can be added, Easy-to-use graphic designer to create any multi-source layout
Program Record MP4 file (H.264 codec). User-selectable bitrate up to 10 Mbps
Recording Capacity Records to internal 500GB SSD storage
Streaming Encoder Can stream to any RTMP server. Presets included for popular CDNs
NDI Support For inputs and program output
Camera Control Can control 1 Beyond PTZ cameras (PTZ-12 and PTZ-20) and tracking cameras (AutoTracker and AutoFramer) over IP
System Control RESTful API over Network (TCP) for third party control
Compatible Codecs Output via HD-SDI (SDI to HDMI® converter included) for connection to external conferencing codec or via USB adapter to external systems running Microsoft Teams® software, Zoom Rooms™ software, etc.
Configuration Browser-based configuration with secure log-in and user administration. Customizable preset options for sleep, wake, and scenario actions

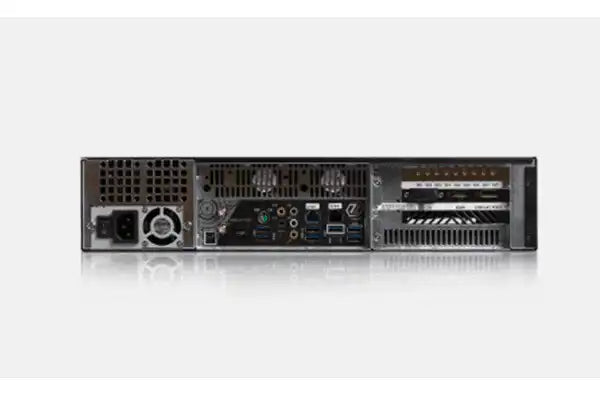

Connectivity
Network Ports 2x RJ-45 Gigabit Ethernet
Video
Video Inputs

3x HD-SDI Inputs
5x NDI Inputs
1x USB Type-A Input
Video Output Up to 1080p60 , 1x HD-SDI (SDI to HDMI® converter included);
NDI|HX and virtual webcam output
Desktop Output 4x Mini DisplayPort™ output for setup and maintenance
Audio
Audio Input 3.5 mm Line In, USB, Dante® input
Compatible Mic Systems

For a list of compatible mic systems, refer to OLH Article 1001562.
Compatible DSPs For a list of compatible DSPs, refer to OLH Article 1001563.
Power
Power 400 W, 100–240VAC
Dimensions
Height 3.5 in. (89 mm)
Width 16.75 in. (425 mm)
Depth 14.5 in. (368 mm)
Weight
14 lb (6.35 kg)
