| Automate VX2 Capabilities |
| Titles, Graphics, Layouts |
Titles, logos, backgrounds can be added, Easy-to-use graphic designer to create any multi-source layout |
| Program Record |
MP4 file (H.264 codec). User-selectable bitrate up to 10 Mbps
ISO Recording, MOV file |
| Recording Capacity |
Records to internal 316 GB SSD storage |
| Streaming Encoder |
Can stream to any RTMP server |
| NDI Support |
For inputs and program output |
| Camera Control |
Can control Crestron 1 Beyond PTZ cameras and tracking cameras over IP. For a complete list of compatible cameras, refer to Compatible Cameras
|
| System Control |
REST API over Network (TCP) for third party control |
| Compatible Codecs |
Output via 3G-SDI (SDI to USB-A 3.0 converter included) for connection to external conferencing codecs running Microsoft Teams® software, Zoom Rooms® software, and others |
| Configuration |
Browser-based configuration with secure login and user administration. Customizable preset options for sleep, wake, and scenario actions |
| Visual AI |
Intelligence built into the Automate VX system, provides AutoFraming and Reframing with Crestron 1 Beyond Cameras |
| Communication |
| Ethernet |
10/100/1000/2500Mbps |
| USB |
USB 3.2 host ports for mouse, keyboard, data drive, and camera signals |
| NDI |
Supports up to 5 NDI®|HX inputs;
Supports 1 NDI®|HX output |

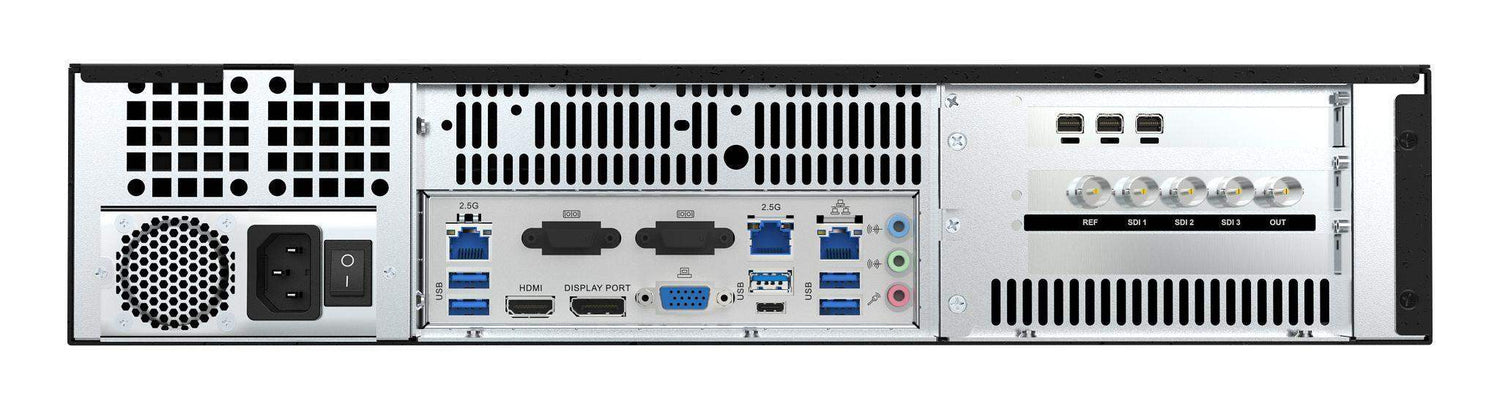

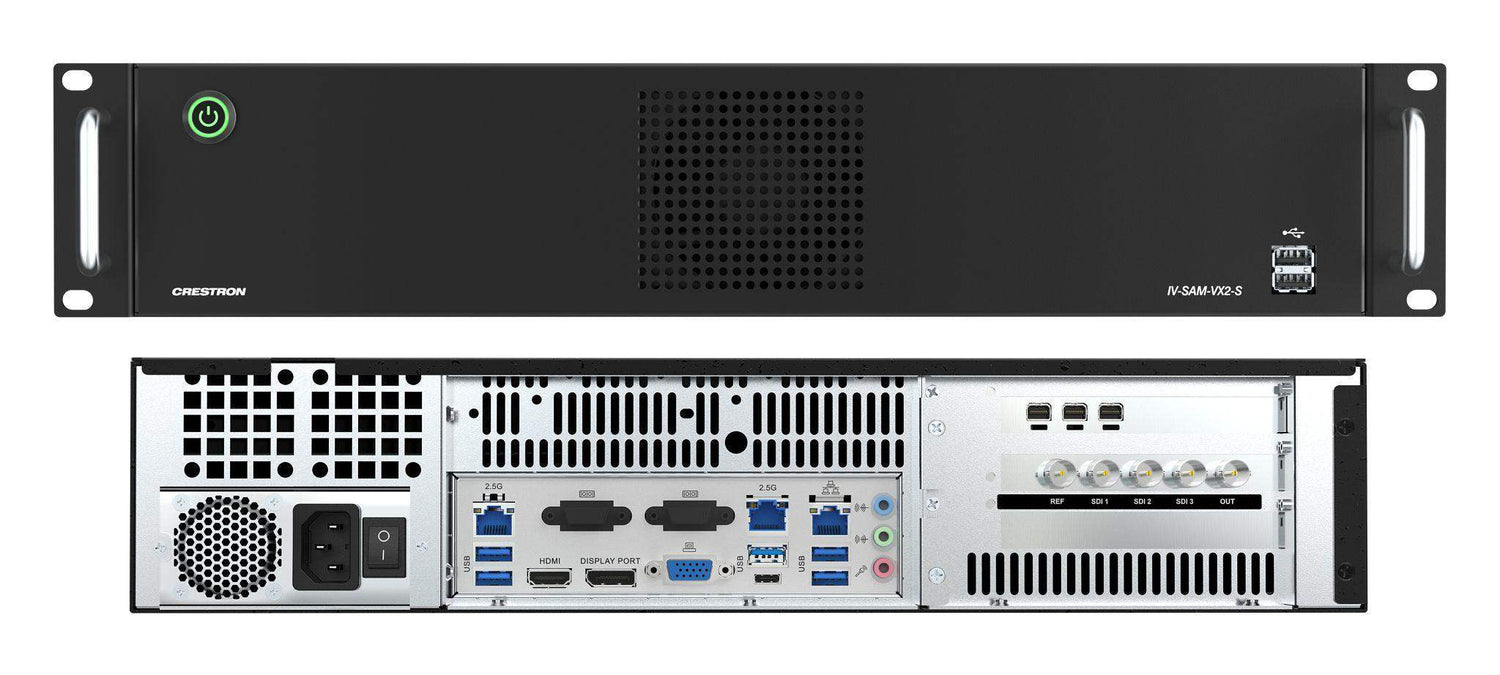

| Connectors |
| USB Type-A (Front) |
(2) USB Type‑A 3.2 (Gen 2) connector, female;
Connects to a keyboard, mouse, or data drive for system configuration |
| USB Type-A (Rear) |
(5) USB Type‑A 3.2 (Gen 2) connector, female;
Connects to a keyboard, mouse, or data drive for system configuration;
Supports one USB Type-A camera connection |
| USB Type-C (Rear) |
(1) USB Type‑C 3.2 (Gen 2, 5V/3A) connector, female;
Connects to a keyboard, mouse, or data drive for system configuration;
Supports one USB Type-C camera connection
Note: Only one USB camera connection (USB Type‑A or USB Type‑C) at a time is supported.
|
| SDI REF |
(1) Reference 3G‑SDI connector (not used) |
| SDI 1-3 |
(3) bidirectional 12‑bit 3G‑SDI connectors, female;
For camera video inputs |
| SDI OUT |
(1) bidirectional 12‑bit 3G‑SDI connector, female;
For HD‑SDI camera video output connection (SDI to USB‑A 3.0 converter included) |
| HDMI |
(1) HDMI 2.0b connector, female;
HDMI digital video/audio output |
| DisplayPort |
(1) DisplayPort™ 1.4a connectors, female;
Connects to a monitor for system configuration menus |
| Mini DisplayPort |
(3) Mini DisplayPort™ connectors, female (not used) |
| LAN |
(3) RJ‑45 connectors, female;
100/1000 Mbps 100BASE‑TX/1000BASE‑T Ethernet Ports |
| Audio Input |
(1) 1/8 in. 3.5 mm connector, female TRS;
Unbalanced line‑level audio input |
| Mic Audio Input |
(1) 1/8 in. 3.5 mm connector, female TRS;
Unbalanced line‑level audio input |
| Audio Output |
(1) 1/8 in. 3.5 mm connector, female TRS;
Unbalanced line‑level audio output |
| VGA |
(1) VGA connector, female (not used) |
| COM |
(2) DB9 connectors, female (not used) |
| Controls and Indicators |
| Power |
(1) Push button with green LED backlight;
For power on and off |
| LAN (rear) |
(2) LEDs on LAN port;
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity |
| Video |
| Input Signal Types |
3G‑SDI, NDI®|HX, USB Type‑A 3.2 (Gen 2), USB Type‑C 3.2 (Gen 2, 5V/3A) |
| Output Signal Types |
HD‑SDI (SDI to USB‑A 3.0 converter included), NDI®|HX, virtual webcam;
1080p60/59.94/50/30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59/54/50, NTSC, and PAL resolutions;
|
| Desktop Output Signal Types |
HDMI and DisplayPort for system configuration and maintenance via monitor |
| Audio |
| Audio Input |
Dante® Networking audio input (Dante license not included), USB |
| Audio Output |
Dante® Networking audio output (Dante license not included), USB |
| Compatible Mic Systems |
For a list of compatible mic systems, refer to System Components.
|
| Compatible DSPs |
For a list of compatible DSPs, refer to Wired and Wireless Microphones.
|
| Power |
| Power |
400 W, 100–240VAC |
| Environmental |
| Temperature |
32° to 104° F (0° to 40° C) |
| Humidity |
5% to 90% RH (noncondensing) |
| Heat Dissipation |
477 BTU/hr typical;
1706 BTU/hr maximum |

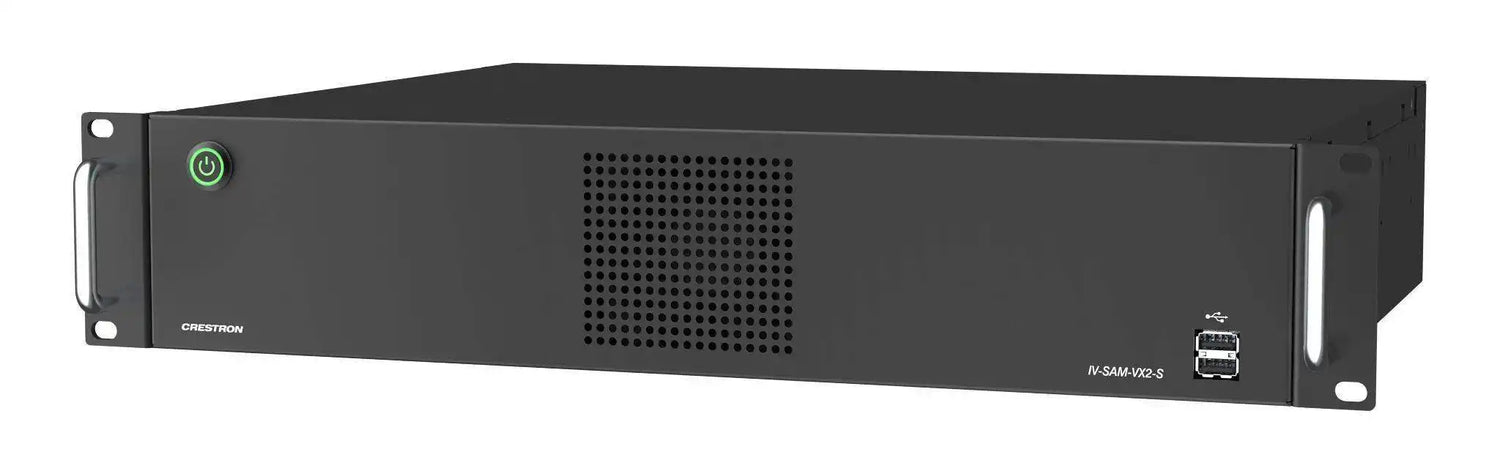

| Construction |
| Chassis |
Steel, black finish |
| Front Panel |
Steel, black finish |
| Mounting |
Freestanding or 2U 19 in. rack‑mountable (adhesive feet and rack ears included) |
| Dimensions |
| Height |
3.47 in. (88 mm) |
| Width |
16.81 in. (427 mm) |
| Depth |
15.33 in. (389 mm) |
