In today’s hybrid work environments, organizations need reliable, scalable audiovisual (AV) solutions that deliver exceptional collaboration experiences without complex programming or lengthy deployments. The Q-SYS RoomSuite Modular System from Q-SYS addresses this need by enabling fast, standardized setup for medium to large conference and collaboration spaces. Designed for seamless integration with leading Unified Communications (UC) platforms and Bring Your Own Meeting (BYOM) functionality, it combines powerful hardware with a intuitive web-based workflow and optional cloud management via Q-SYS Reflect.

Whether you’re outfitting corporate boardrooms, executive suites, training facilities, or multi-purpose spaces, RoomSuite Modular offers a no-code approach to AV system design, commissioning, and ongoing management—perfect for IT teams, facility managers, and AV integrators seeking consistency across their portfolio of rooms.

The Q-SYS RoomSuite Modular System consolidates traditional AV hardware into a streamlined, integrated solution. At its core is the RMP-100 processor, which handles audio processing, network connectivity for Q-SYS peripherals, video distribution, and UC platform bridging. An optional QIO-VEN4 expander (up to 3 per room) mounts typically under the table to support BYOM laptop connections and additional peripheral expansion.

Key benefits include:

• No Q-SYS Designer programming required — Everything is configured through a web browser via the RoomSuite Manager interface.
• Automatic device discovery and user interface generation based on detected peripherals.
• Built-in Room System Optimization (RSO) for professional audio tuning.
• Scalable cloud management with Q-SYS Reflect for fleet-wide consistency, presets, and remote monitoring.

This modular design supports a wide range of room sizes and configurations while maintaining simplicity and reliability.

RoomSuite Modular simplifies deployment by focusing on configuration rather than custom coding:

1. Hardware Foundation: The RMP-100 serves as the central processor with integrated networking, AV bridging, and video switching. The QIO-VEN4 expander adds flexible I/O for table-mounted devices.
2. Web-Based Configuration: Connect via browser to the RMP-100. Devices are automatically discovered. Configure audio, video, controls, and more through dedicated sections in the RoomSuite Manager.
3. Audio Optimization: Use Room System Optimization (RSO) with supported microphones (primarily NM-T1) to automatically measure room acoustics and apply recommended settings for levels, EQ, AEC, etc. Manual fine-tuning is available in the Settings mixer interface.
4. Video and Controls: Set up cameras, displays, and sources easily. Adjust room behaviors via the Room Controls page.
5. Preset and Scale: Save configurations as presets and replicate them across rooms using Q-SYS Reflect for enterprise-scale deployments.

The system auto-generates a user-friendly control interface based on connected devices, minimizing end-user training.

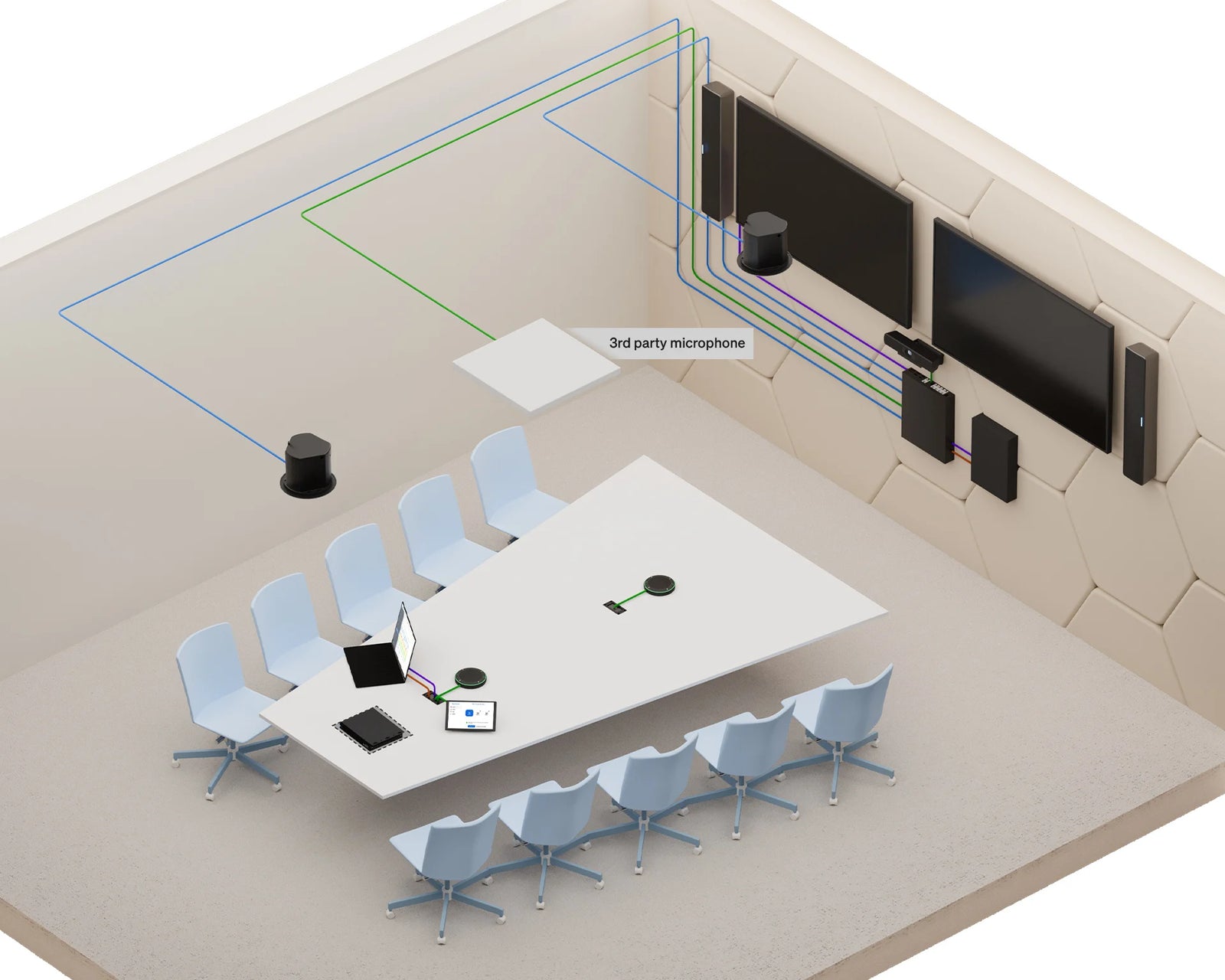

The RoomSuite Modular System is highly customizable with a portfolio of Q-SYS networked peripherals:

• Processor (1 per room): RMP-100 — Handles core processing, video I/O (HDMI 2.0), control (RS-232, GPIO, CEC), and extensive PoE power budget.
• Expander (up to 3 per room): QIO-VEN4 — Adds HDMI I/O, USB-C with DP-Alt mode, and additional PoE ports.
• Microphones (up to 4 total per room): Q-SYS NM-T1 tabletop beamforming mic (up to 4). Compatible Dante ceiling mics include Audio-Technica ATND1061, Sennheiser TCC models, Shure MXA series, and Yamaha RM-CG (typically 1 per room).
• Loudspeakers (up to 6 total per room): NL-C4 ceiling, NL-P4 pendant, NL-SB42 soundbar.
• Cameras (up to 2 per room): NC-90-G2 (compact), NC-12x80 (12x zoom), NC-20x60 (20x zoom for larger spaces).
• Touch Screen Controllers (up to 2 per room): TSC-70-G3 (7") and TSC-101-G3 (10.1")

RoomSuite Small Room Bundle:

RoomSuite Medium Room Bundle:

RoomSuite Large Room Bundle:

This flexibility allows designers to tailor systems to specific room layouts, seating, and use cases while keeping deployment standardized.

Audio Excellence

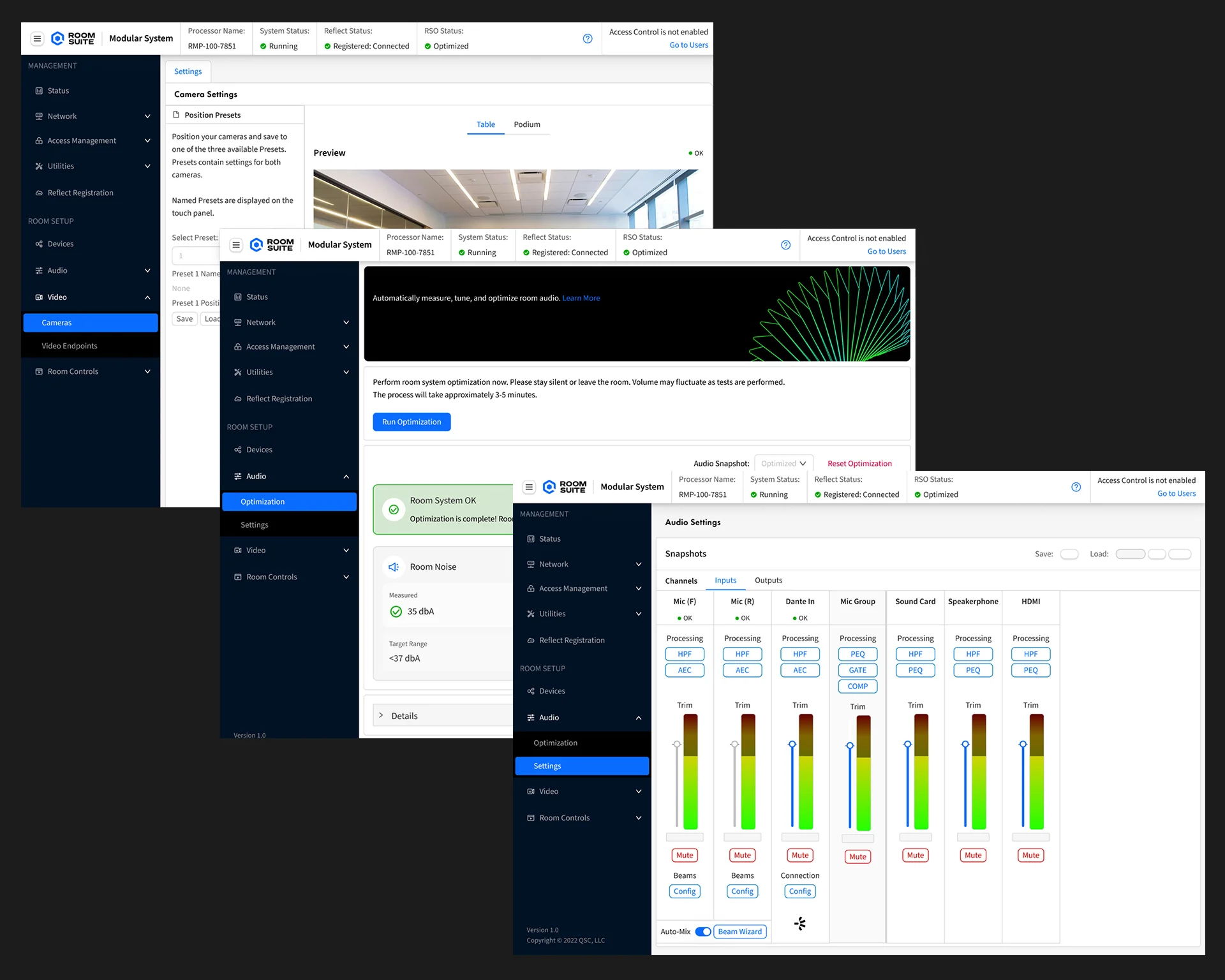

The Audio section in RoomSuite Manager includes Room System Optimization (RSO) — a guided process that plays test signals to measure background noise, reverb, and system performance (including AEC). Results provide pass/fail feedback and a downloadable report. Follow up with manual adjustments using channel strips featuring HPF, PEQ, Gate, Compressor, and more. The NM-T1’s Auto-Mixer and Beam Wizard further enhance speech intelligibility.

Tip: Run RSO as a baseline during setup and as a periodic health check.

Video and Visuals

Configure cameras, displays, and sources for optimal participant and presenter visibility. Support for leading UC platforms and BYOM ensures high-quality video in hybrid meetings.

Room Controls and Status

Fine-tune room behaviors and monitor real-time system health, firmware, device inventory, and more from the Status page. Utilities provide logs and firmware management.

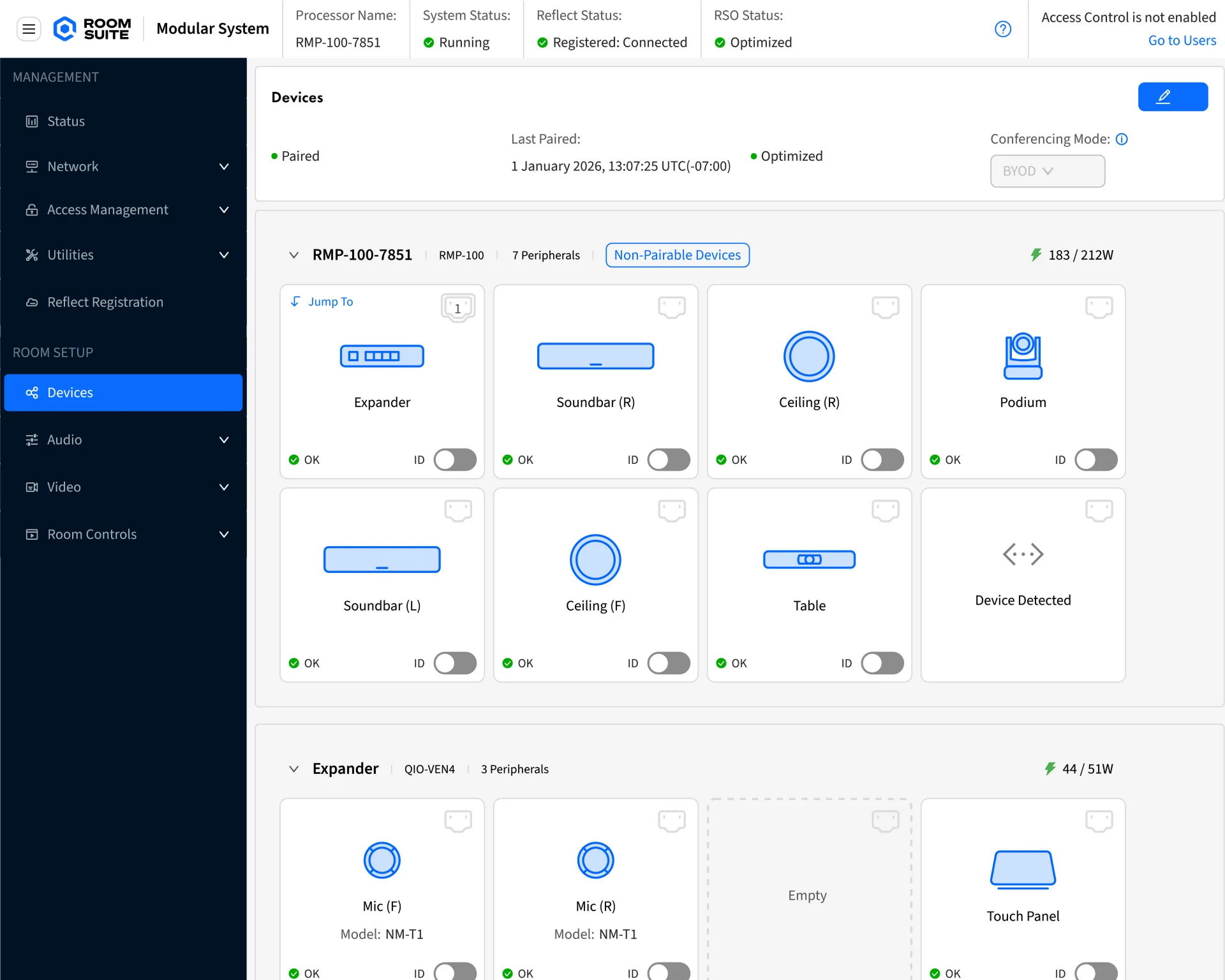

The Q-SYS RoomSuite Manager Web Interface (hosted on the RMP-100) empowers IT and facility teams with at-a-glance status, basic configuration, device assignment, and diagnostics—no deep AV expertise required.

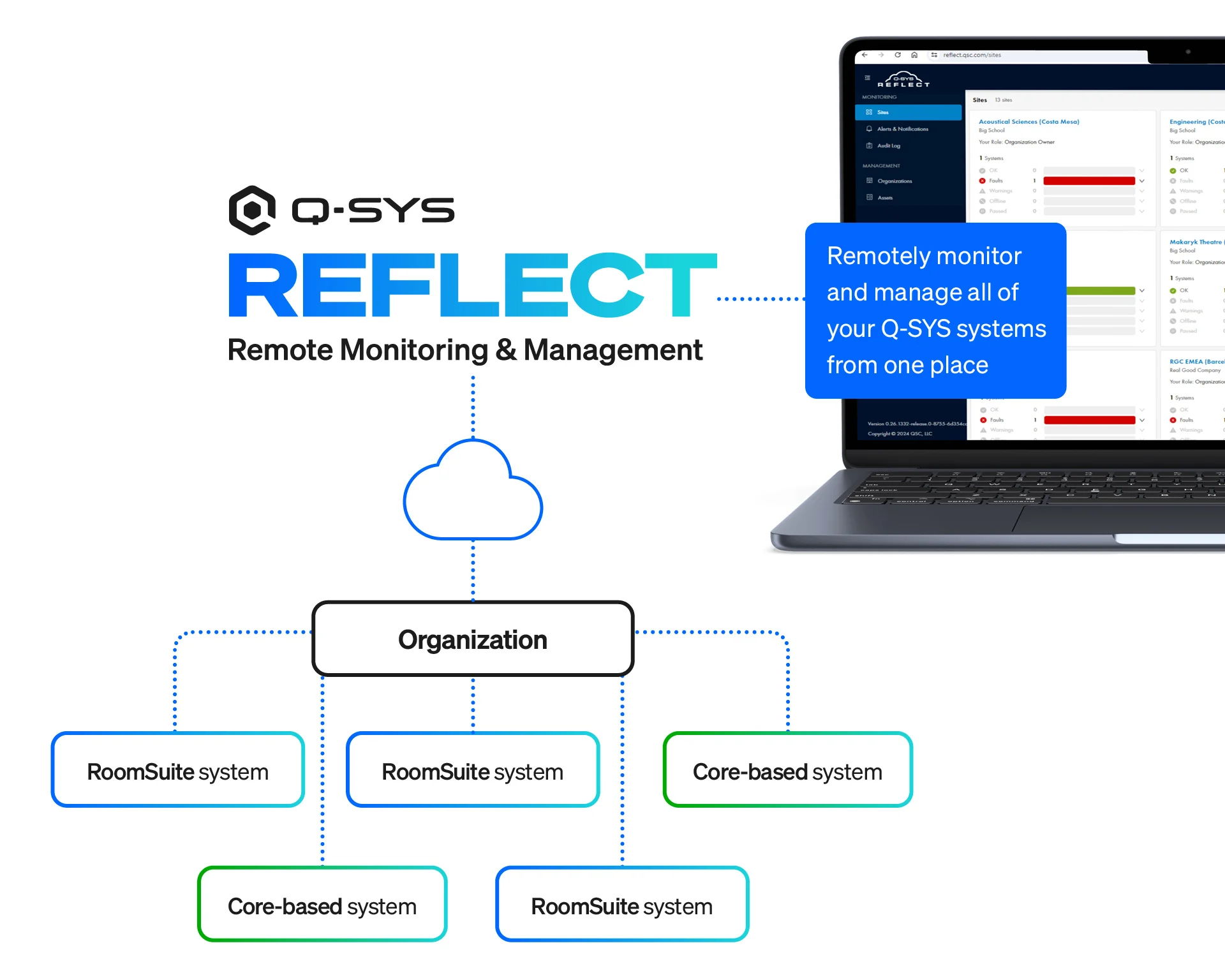

For larger deployments, connect to CreationCare Reflect Monitoring (optional but recommended) for:

• Cloud-based monitoring and management.
• Preset replication across rooms.
• Centralized firmware updates.
• Fleet-wide visibility.

Security Features include access management (local control enable/disable, admin account config), network settings (IP, DNS, certificates, HTTPS, 802.1X), and more—giving IT full control over enterprise integration.

The Q-SYS RoomSuite Modular System stands out by balancing power and simplicity. It reduces deployment time and costs compared to traditional programmed systems while delivering professional-grade performance, easy maintenance, and future-proof scalability through Q-SYS ecosystem peripherals and Reflect cloud tools.

For AV integrators and end-users alike, it means faster time-to-value, lower total cost of ownership, and happier meeting participants with clear audio, sharp video, and intuitive controls.

Creation Networks specializes in Q-SYS integrations, including RoomSuite Modular AV deployments. Our team can help design, install, program (where needed), and support these systems to ensure optimal performance in your unique environments. Contact us to discuss how RoomSuite Solutions can transform your collaboration spaces.

This article is based on official Q-SYS documentation and product resources for accuracy and completeness.
