Secure, High-Performance AV System for Critical Operations
INTRODUCTION

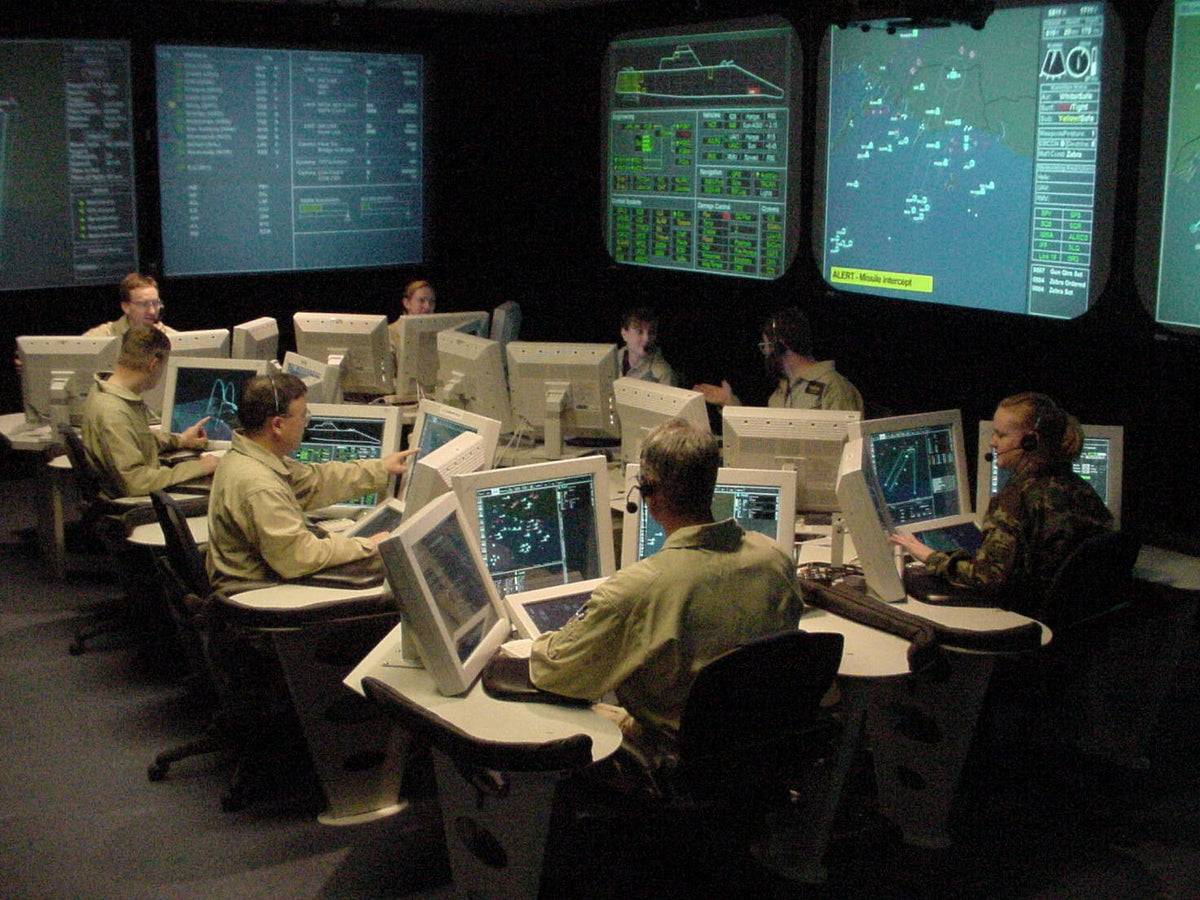

The Naval Sea Systems Command (NAVSEA) is the largest of the U.S. Navy's six system commands, responsible for engineering, building, buying, and maintaining ships, submarines, and combat systems. Creation Networks was selected to design, engineer, program, and support the deployment of a comprehensive AV system for a key NAVSEA auditorium and command facility. As a certified Small Business with deep expertise in government AV integration, Creation Networks provided end-to-end services — from initial system design through programming and remote installation support — ensuring the solution met stringent military reliability, security, and performance requirements.
PROJECT NAME
Scottsdale Sales Office
Location
Saudi Arabia
SIZE
38,000 SF
CHALLENGE
The primary challenge was to remotly deliver a stable and robust AV system capable of supporting high-stakes command operations with zero tolerance for downtime. Key requirements included:
- Reliable, low-latency video matrix switching and video wall processing for mission-critical visual information.
- Crystal-clear audio capture and reinforcement in a conference/auditorium setting.
- Secure, high-quality video encoding/decoding for remote distribution with metadata (KLV) support.
- Intuitive, centralized control that could be managed remotely.
- Full remote installation and commissioning support due to site access constraints and scheduling demands.
The system needed to integrate seamlessly with existing infrastructure while providing scalability and long-term maintainability under demanding government standards.
THE SOLUTION
Creation Networks performed the complete design, engineering, programming, and remote installation support for the project. Working closely with the NAVSEA team, we developed a fully integrated audiovisual architecture centered on Q-SYS for audio and unified control, paired with Extron for advanced video matrix and touch-panel control.
The solution emphasized redundancy, security, and ease of operation. All components were procured, configured, and tested prior to shipment. Creation Networks engineers provided detailed programming of the Q-SYS Core and Extron control systems, along with remote commissioning assistance to ensure successful on-site deployment.
THE TECHNOLOGY
The system was built using best-in-class components selected for performance, reliability, and compatibility:
Video System (Extron & Haivision)
- Extron CrossPoint 6400 Series Video Matrix (2 units) – High-bandwidth 4K video routing and switching.
- Extron Ultra-High Bandwidth 4K Videowall Processor with HyperLane Bus.
- Extron TLP Pro 1525TG Touch Link Panels (2 units) – Tabletop control and video preview stations.
- Haivision Makito X Dual Channel SDI Encoders (2 units) and Decoders (2 units) – Professional H.264/HEVC streaming with KLV metadata support for secure video distribution.
Audio & Unified Control System (Q-SYS)
- Q-SYS Core 510i Integrated Core Processor.
- Q-SYS CDN64 – Dante network audio interface.
- Q-SYS CIMA4 & COL4 analog I/O cards for flexible microphone and line-level connectivity.
- Shure MXA710B-4FT Linear Array Microphones (2 units) – Premium beamforming audio capture.
- Q-SYS TSC-80W-G2-BK 8" Touch Panels for intuitive local control.
- Q-SYS UCI and Scripting Engine software licenses for advanced custom programming and automation.
Networking & Support
- Cisco SG350-28MP PoE+ Managed Switch (substitute for EOL QSC model).
Creation Networks provided full system programming, including custom Q-SYS scripts, Extron control logic, and seamless integration between the audio, video, and control layers.
RESULTS
The deployed system exceeded expectations, delivering:
- Uninterrupted performance with enterprise-grade reliability suitable for command-level operations.
- Superior audio intelligibility through Shure beamforming microphones and Q-SYS processing.
- Flexible video distribution with high-quality encoding/decoding and preview capabilities.
- Simplified operation via intuitive Q-SYS touch panels and Extron control interfaces, enabling both local and remote management.
- Successful remote installation support, allowing the NAVSEA team to complete deployment efficiently despite logistical challenges.
The solution has provided stable, secure AV capabilities that support critical meetings, training, and operational coordination. NAVSEA now benefits from a modern, maintainable system backed by Creation Networks’ ongoing support expertise.
