Yealink CTP25 – Touch Console for Meeting Bar A40

Product Overview

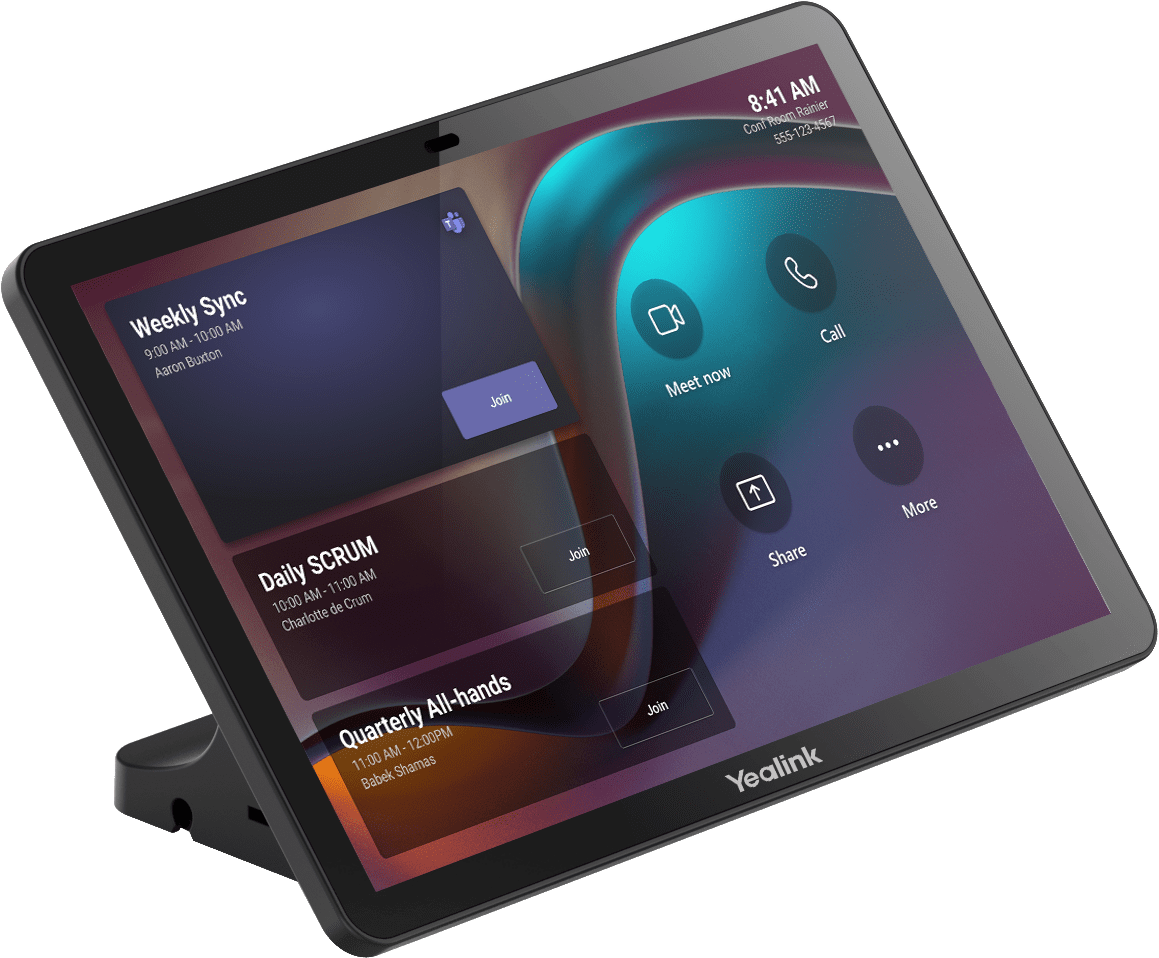

The Yealink CTP25 is a 10.1-inch touch console designed to control Yealink room systems, including the Meeting Bar A40. Running Android 13 with a high screen-to-body ratio IPS display, it gives in-room users a single, dedicated surface to join and manage meetings. USB-C wired content sharing, BYOD, and power, plus ultrasonic pairing technology, make it a flexible centerpiece for the conference table. For AV integrators, the CTP25 standardizes the in-room control experience across Yealink deployments.

Product Description

The CTP25 puts meeting control on a dedicated 10.1-inch IPS touchscreen at 1280 x 800 resolution, with a 1000:1 contrast ratio, 350 cd/m² brightness, and 178° horizontal and vertical viewing angles. Running Android 13 with MDEP support, it is built to keep pace with ongoing platform updates and centralized device management. The ultra-high screen-to-body ratio keeps the footprint compact on the table while maximizing usable touch area.

Connectivity is handled by Wi-Fi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.0, with a wired I/O set of one USB-A, two USB-C, and one RJ45 port. The USB-C interface supports wired content sharing, BYOD, and power over a single cable, which reduces table clutter and simplifies cabling for integrators. A built-in ultrasound unit enables ultrasonic pairing so users can connect quickly when they sit down.

Average power consumption is just 7.3 W, and the console weighs 683 g in a 24.3 x 16.2 x 2.8 cm body, making it easy to place or mount. The CTP25 is a control accessory for Yealink room systems; pair it with a Meeting Bar A40 and browse compatible hardware in our Yealink collection. For ceiling audio in larger rooms, add the Yealink CM20 ceiling microphone to complete the room.

Key Features

• 10.1-Inch Touchscreen — IPS display with an ultra-high screen-to-body ratio for clear, responsive control.
• Android 13 with MDEP — Modern platform with continued updates and Mobile Device Equipment Platform support.
• USB-C Single-Cable — One USB-C connection handles content sharing, BYOD, and power.
• Ultrasonic Pairing — Built-in ultrasound unit enables fast, automatic device connection.
• Wi-Fi 6 and Bluetooth 5.0 — Current wireless standards for reliable connectivity and proximity features.
• Flexible Deployment — Multiple deployment methods suit tabletop or mounted placement.
• Low Power Draw — Averages 7.3 W for efficient continuous operation.

Typical Applications

• Meeting Bar A40 Rooms — Dedicated in-room controller for joining and managing meetings on the A40.
• Huddle and Medium Conference Rooms — Compact footprint and single-cable USB-C keep tables tidy.
• BYOD Meeting Spaces — USB-C content sharing and BYOD support flexible bring-your-own-device workflows.
• Managed Enterprise Deployments — Device management and MDEP support fit centrally administered room fleets.

Technical Specifications

Frequently Asked Questions

Q: What does the CTP25 work with?
A: It is a touch console designed to control Yealink room systems, including the Meeting Bar A40.

Q: Can it share content and charge over one cable?
A: Yes. The USB-C interface supports wired content sharing, BYOD, and power over a single connection.

Q: What operating system does it run?
A: The CTP25 runs Android 13 with MDEP support and continues to receive platform updates.

Q: What wireless standards are supported?
A: It supports Wi-Fi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.0.

Q: How does ultrasonic pairing work?
A: A built-in ultrasound unit lets nearby devices connect to the room system automatically when a user is present.

Q: What ports does it have?
A: The CTP25 includes one USB-A, two USB-C, and one RJ45 port.
