WaveCAST EIGHT is the new, multi-channel Wi-Fi assistive listening platform designed for larger assistive listening applications or for streaming audio in a bar, gym, or other devices where multiple sources of audio exist.
Designed for pro-audio applications where high-quality sound is required for streaming multi-channel audio in real-time to smartphones and/or tablets.
The WaveCAST family of Wi-Fi products is designed for pro-audio applications where high-quality sound is required for real-time streaming of audio to smartphones or handheld receivers. WaveCAST is the industry’s only audio over Wi-Fi platform with DSP-based system architecture, allowing system optimization to achieve the highest quality experience for the particular audio stream. Featuring ultra-low latency, hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility.

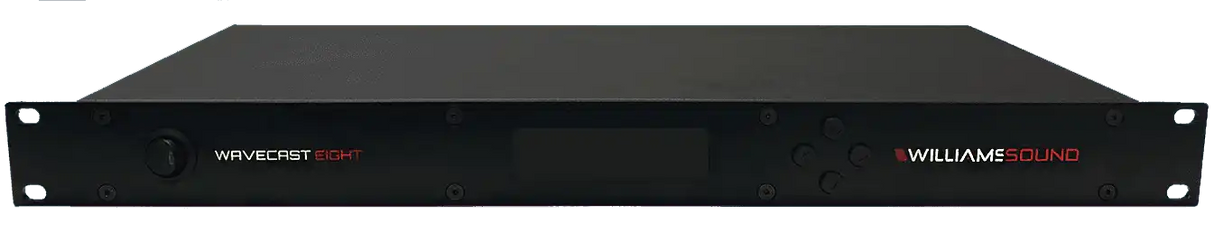

The WaveCAST EIGHT (WF T8) offers a multichannel platform designed for larger assistive listening applications or streaming audio. Up to 8 channels are available on a single WaveCAST EIGHT, and up to 8 WaveCAST EIGHTs can be used on one network.
The new WaveCAST app provides an easy-to-use, intuitive user interface and is available on iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network.
IOS – WaveCAST App
Android – WaveCAST App

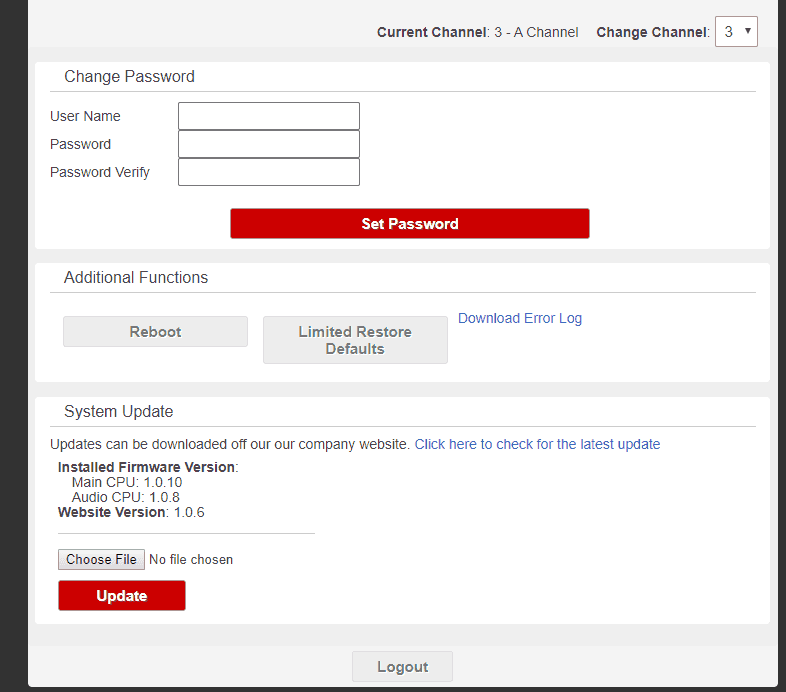

*Note: Firmware is model specific. Firmware updates are currently unable to be completed on Mac computers.
Features
- Audio seamlessly streams over Wi-Fi to iOS and Android personal devices or Williams AV handheld receivers to a free WaveCAST app
- DSP-based system for maximum intelligibility
- Supports multicast network configurations
- Available with Dante connection
Specifications
WF T8
| Dimensions |
17” W x 7.625” D x 1.72”H (43.18 cm x 19.37 cm x 4.4 cm) |
| Weight |
5.0 lbs (2.27 kg) |
| Color |
Black |
| Rack Mount |
Standard 19” Rack, one EIA rack space high, one rack space wide |
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Switch |
Rocker; backlit red LED indicates power on |
| Temperature Range |
Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C) |
| Audio Processor Functions |
DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control |
| Frequency Response |
31 – 16000 Hz, ±3 dB (“Music” Audio Preset) |
| Signal-to-Noise Ratio |
Greater than or equal to 69 dB (streaming to iPhone) |
| Total Harmonic Distortion |
Less than 0.25% @ 1 kHz |
| Common Mode Rejection |
Greater than 52 dB @ 1 kHz |
| Audio Inputs |

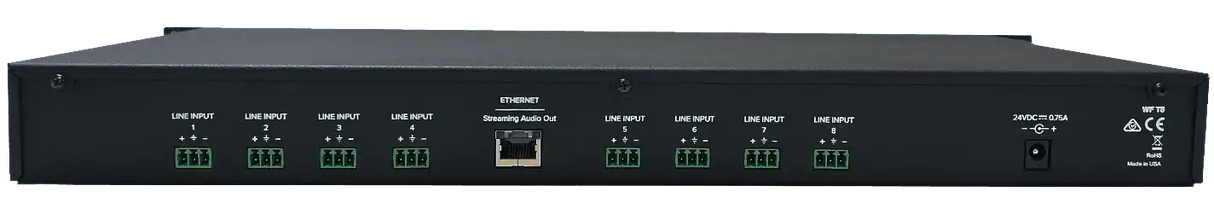

8 Phoenix-style Line Level Analog Audio, Balanced or Unbalanced Line Level |
| Audio Input Gain Adjust |
In menu, adjustable to +6 to -60 dB, in 1dB steps |
| Ethernet |
RJ-45 on the back of the unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant. |
| Approvals |
FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme |
| Warranty |
2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details. |
Warranty
2 Years
