Williams Sound WF SYS2C WaveCAST System With 6 WAV Pro Wi-Fi Receivers

Save 10%
Williams Sound SKU: WF SYS2C
No reviews

Sale price$3,425.00 Regular price$3,805.00


Discover real-time audio over Wi-Fi with this WaveCAST Wi-Fi assistive listening system. This system includes 6 easy-to-use WAV Pro Wi-Fi Receivers that deliver the assistive listening industry’s largest display at 6.8” full HD+ display, along with Bluetooth® compatibility and up to 40 hours of continuous audio streaming under normal use conditions. The WAV Pro Wi-Fi Receiver connects with any Williams AV WaveCAST-enabled product and allows users to connect via Bluetooth® to their own personal headphones, hearing aids, or neck loop. The WAV Pro Wi-Fi Receiver is the only wireless Wi-Fi device on the market that is new and purposed solely for assistive listening. The WaveCAST System with 6 WAV Pro Wi-Fi Receivers meets ADA hearing requirements.

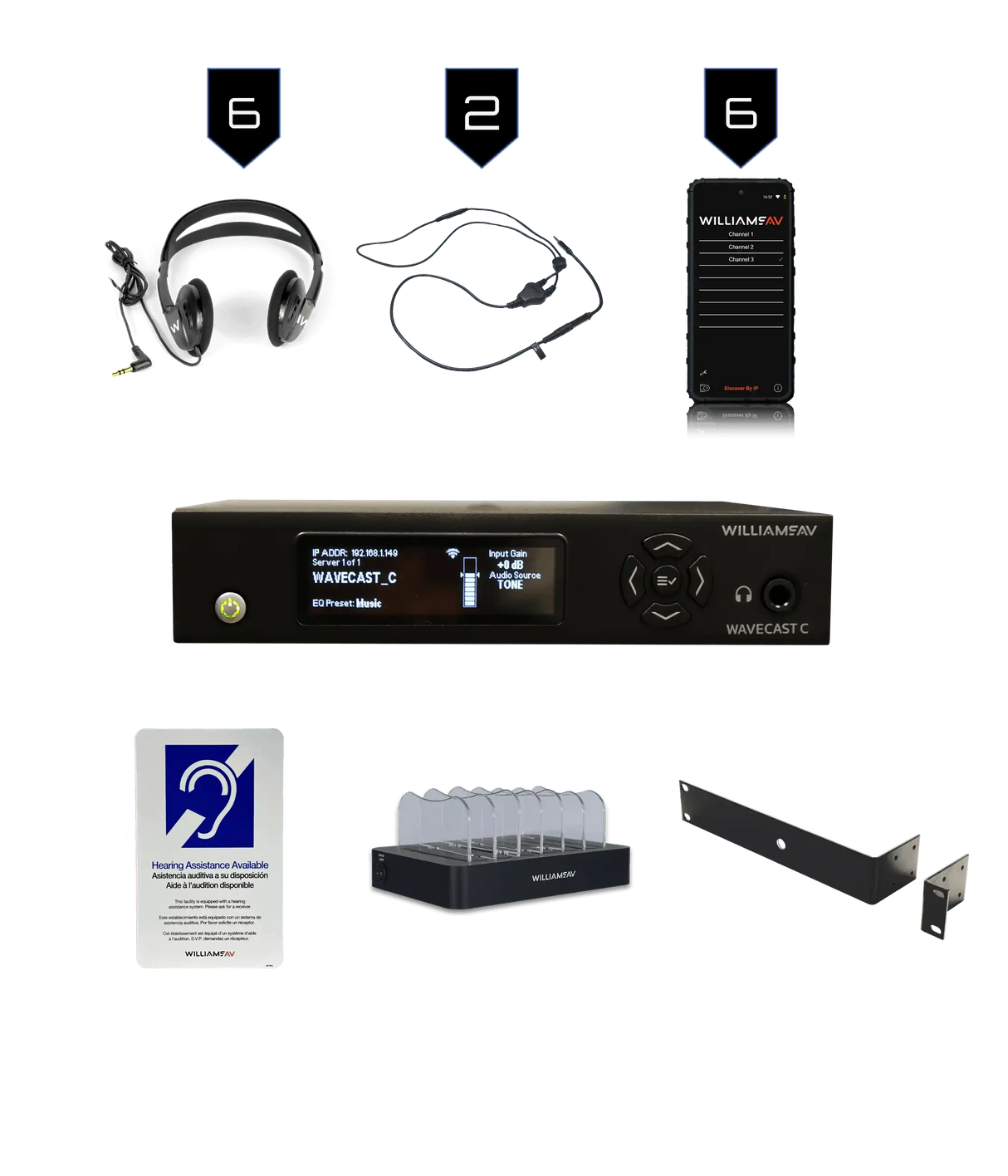

System Includes

(1) WaveCAST C transmitter (WF T5C)
(6) WAV Pro Wi-Fi Receivers (WF R2-N)
(2) Neckloops (NKL 008)
(1) Rack Panel Kit (RPK 005)
(6) Folding Stereo Headphones (HED 024)
(1) ADA Wall Plaque (IDP 008)
(1) 6-Bay Charger (AC CHG406)

HED 024

Style Stereo Headphones
Plug 3.5mm stereo
Cord 39"
Driver Size 30 mm
Nominal Impedance 16Ω
Freq. Response 20 - 20kHz
Weight 60g
Max Power Input 100 mW
Sensitivity 108 dB @ 1kHz
Replacement Pads HED 023 (one pair)

IDP 008

10-3/8" (L) x 6-¼" (W) x 1/8" (H)

WF R2-03

Dimensions 168 x 76.5 x 8.9 mm (6.61 x 3.01 x 0.35 in)
Weight 7.12 oz (202g) without case
Display 6.8” Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
Receiver Jack 3.5mm (1/8”) stereo headphone jack
Battery Life Lithium Polymer (Li-Po) 6000 mAh, non-removable
Battery Life Up to 40 hours of continuous audio streaming
USB Connection USB Type C for power and charging
Approvals CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending
Warranty Williams AV warrants the WAV Pro Wi-Fi Receiver against defects in materials and workmanship under normal use and conditions for two years from the purchase. The WAV Pro Receiver’s rechargeable battery is warrantied for one year from the date of purchase.

NKL 001-S

Color: Black
Weight: 1.5 oz
Length: 18.5” cord
Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
Impedance: 8-16 Ohms
Input Power: 500 mW max
Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85μW input produces 0.1 A/m (IEC Standard)
Approvals: RoHS, WEEE
Warranty: One Year


Dimensions 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
Weight Transmitter: 3.2 lbs (1.45 kg)
Color Black
Rack Mount Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
Power ON Indicator Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.
Temperature Range Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)

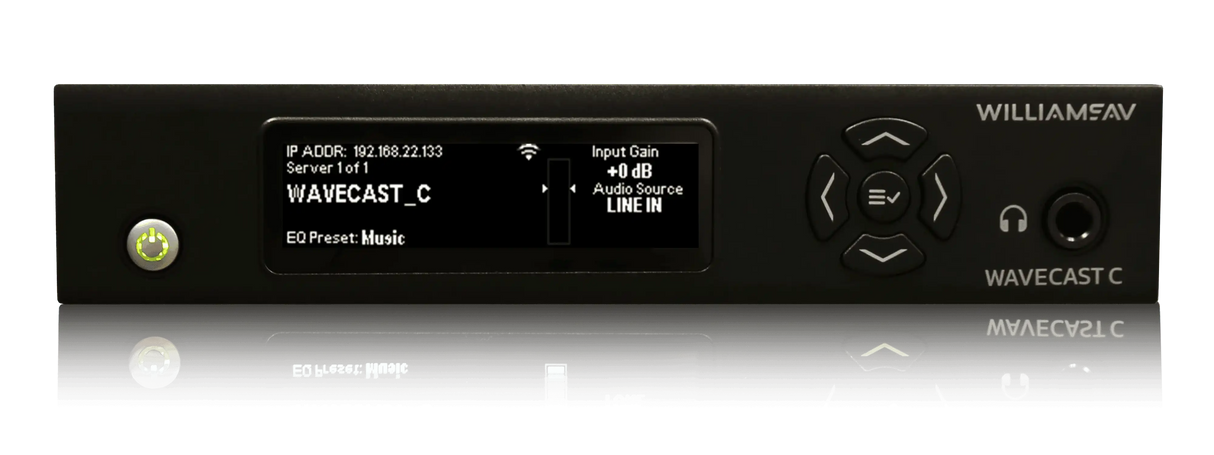

User Interface 1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol).
Dante (1x) RJ-45 jack. Only available on WF T5CD

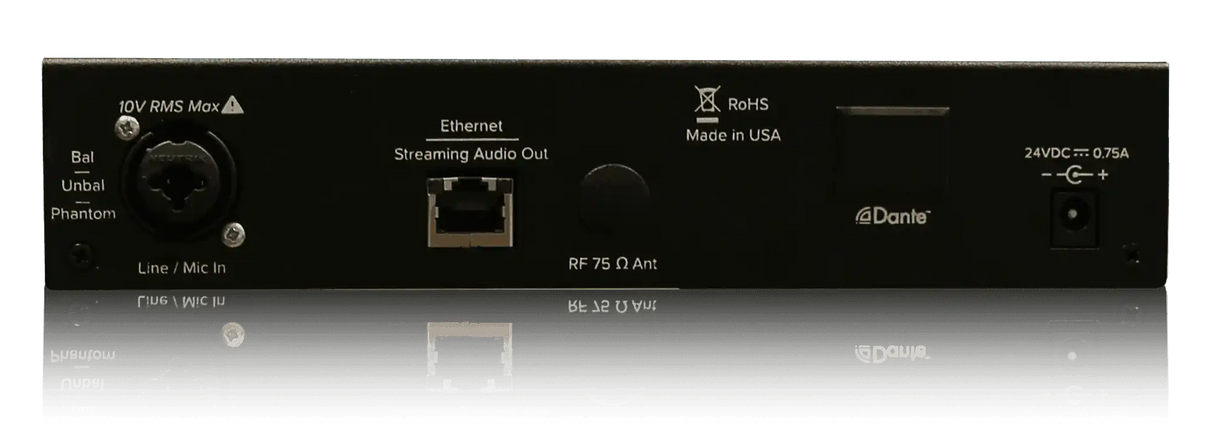

Ethernet RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.
Audio Section
Audio Inputs (1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).
Audio Processor Functions DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
Frequency Response 31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset)
Signal-to-Noise Ratio 64 dB (typical) Transmitted RF @ 1kHz
Total Harmonic Distortion Less than 0.25% @ 1 kHz (RF output)
Common Mode Rejection Greater than 57 dB @ 1 kHz, Mic or Line mode
Audio Input Gain Adjust Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
Phantom Power 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
Audio Level Display Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.
Headphone Output 1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω.
Dante Output (1x) RJ-45 jack, only available on WF T5CD
Input Level (Bal or Unbal) (at Audio Input Gain = 0dB)
Nominal (@7th Segment Lit) Overload Warning (Displayed on Screen) Absolute Max. Rating*
-45 dBV (5.6 mV RMS) -20 dBV (100 mV RMS) +20 dBV (10.0 V RMS)
-8.4 dBV (380 mV RMS) +16 dBV (6.5 V RMS) +20 dBV (10.0 V RMS)
Approvals FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM
Warranty 2-year parts and labor
Note: Please be aware firmware is model-specific ** Stresses above these ratings may cause permanent damage. Exposure for extended periods may degrade reliability. This device complies with Industry Canada licence-exempt RSS standard(s) and FCC part 15.105[b] for the United States.  Operation is subject to the following two conditions: [1] this device may not cause interference, and [2] this device must accept any interference, including interference that may cause undesired operation of the device.


Dimensions: 7.2”L x 5.1”W x 1.1”H (18.2 cm x 12.9 cm x 2.7 cm)
Weight: 1.3 lbs (0.58 kg)
Color: Black and clear plastic
Power Input: AC100-240V 50/60Hz 0.5A max
Power Output: DC 5.0V/10A (50W)
Ai Output DC 5V/2.4A
Indicators: Individual Charging Indicators: Blue LEDs light up dividing clear panels
Cable Length 1.5m (4.9ft)
Compatible Units: WAV Pro Wi-Fi Receiver (WF R2-03) and (WF R2-N)
Warranty: 1 year (90-day warranty on cables and power supply)
Approvals: CE, FCC, ETL and RoHs
Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged.


2 Years

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
