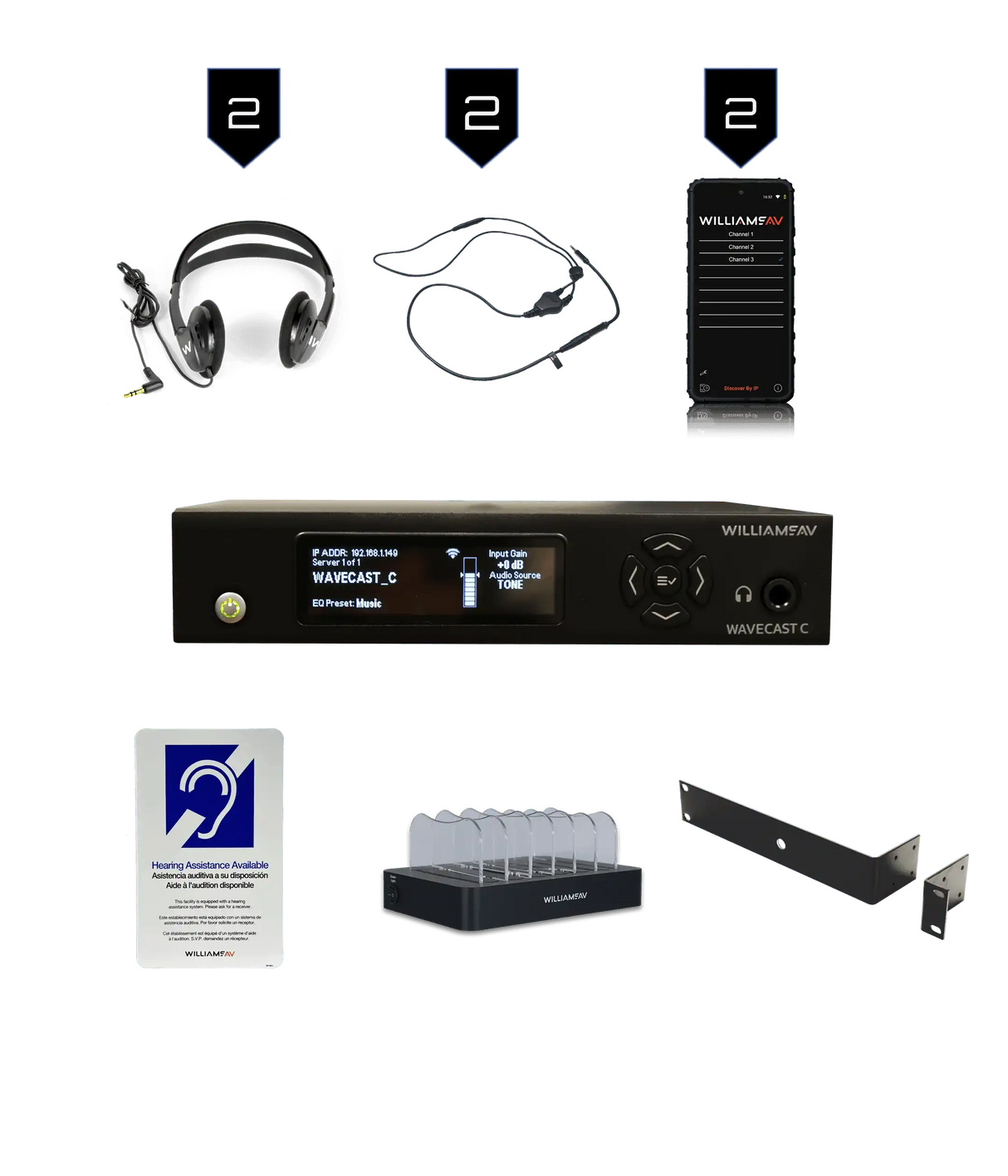

Dimensions |
8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm) |
Weight |
Transmitter: 3.2 lbs (1.45 kg) |
Color |
Black |
Rack Mount |
Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits |
Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
Power ON Indicator |
Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF. |
Temperature Range |
Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C) |

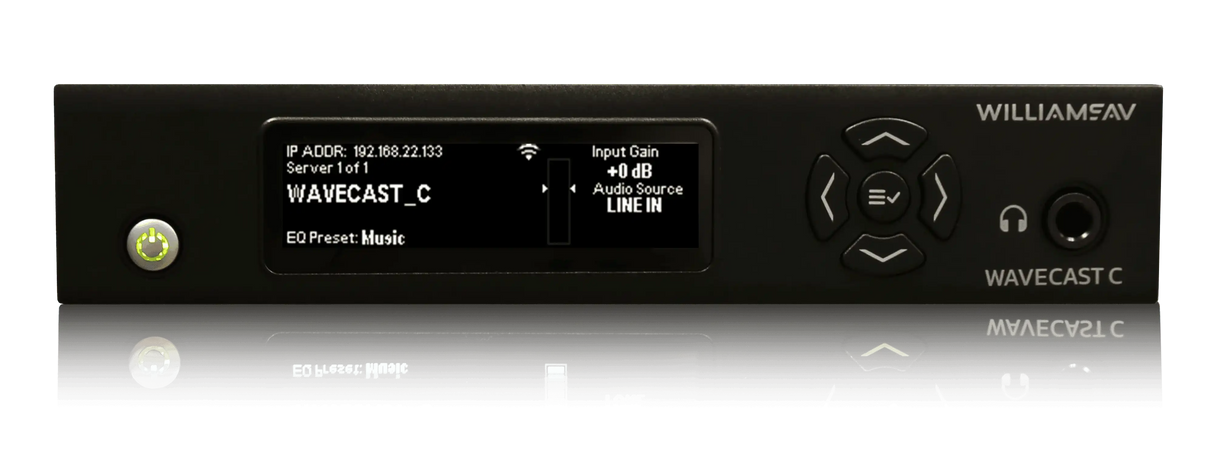

User Interface |
1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol). |
Dante |
(1x) RJ-45 jack. Only available on WF T5CD |

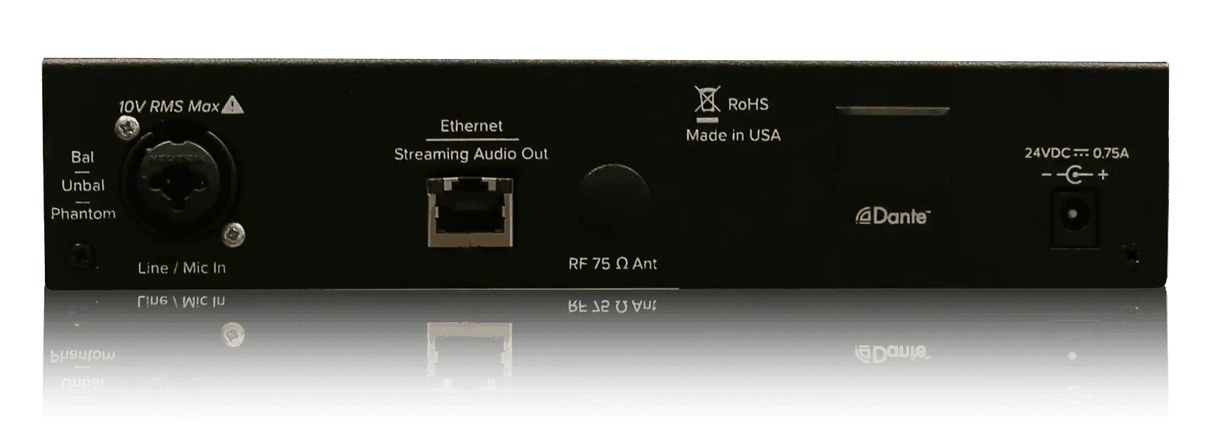

Ethernet |
RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices. |
Audio Section |
Audio Inputs |
(1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only). |
Audio Processor Functions |
DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets |
Frequency Response |
31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset) |
Signal-to-Noise Ratio |
64 dB (typical) Transmitted RF @ 1kHz |
Total Harmonic Distortion |
Less than 0.25% @ 1 kHz (RF output) |
Common Mode Rejection |
Greater than 57 dB @ 1 kHz, Mic or Line mode |
Audio Input Gain Adjust |
Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page |
Phantom Power |
14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack |
Audio Level Display |
Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar. |
Headphone Output |
1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω. |
Dante Output |
(1x) RJ-45 jack, only available on WF T5CD |
Input Level (Bal or Unbal) (at Audio Input Gain = 0dB) |
Nominal (@7th Segment Lit) |
Overload Warning (Displayed on Screen) |
Absolute Max. Rating* |
|
Microphone |
-45 dBV (5.6 mV RMS) |
-20 dBV (100 mV RMS) |
+20 dBV (10.0 V RMS) |
|
Line |
-8.4 dBV (380 mV RMS) |
+16 dBV (6.5 V RMS) |
+20 dBV (10.0 V RMS) |
|
Approvals |
FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM |
Warranty |
2-year parts and labor |
