The Multi-Channel FM Tour Guide system TGS PRO 738 is a lightweight, multi-channel system that helps tour participants with hearing difficulties listen directly to the tour guide and control their own volume. This system features the FM R38 receiver, which can easily switch between 17 channels using the build in screen.
No installation required — save time and money. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use controls. No installation required–save time and money. This multi-channel FM tour guide is designed to meet Americans with Disabilities Act (ADA) accessibility requirements.
The TGS PRO 738 comes with a microphone, PPA T46 transmitter and 10 PPA R38 receivers in a carrying case. It does not come with any earphones, headphones or neckloops.
NOTE: This System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation.
Disclaimer: FCC rules limit use of this equipment to auditory assistance.
(1) PPA T46 Transmitter
(10) PPA R38N Receivers

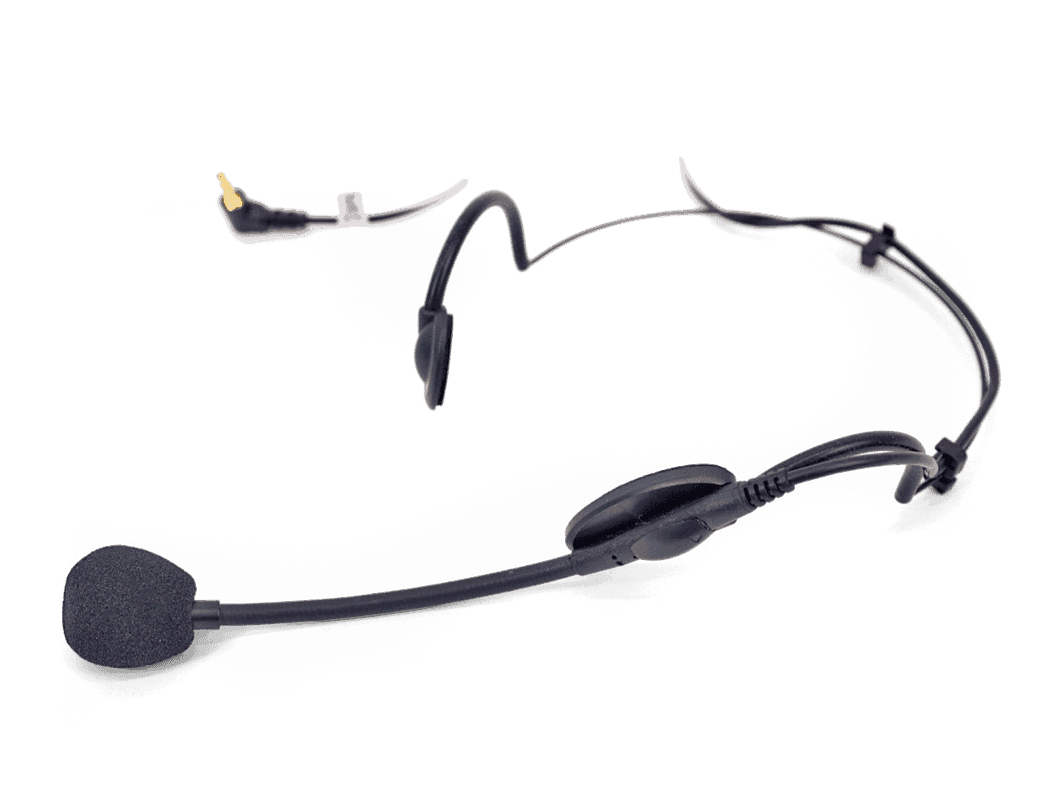

(1) MIC 100 Rear-Wear Headset Microphone
(11) BAT 001-2 (AA Alkaline Batteries)
(1) CCS 056 S Carry Case
Headphones and earphones sold separately.
- Featuring the sleek PPA T46 FM body-pack 17-channel transmitter
- Allows full freedom of movement for tour group
- Easy set-up, simple operation
- 17-channel receivers with OLED display
- Auxiliary input—broadcast any audio source
- Belt clips included for hands-free operation
- Lifetime PLUS Limited Warranty (90 days on accessories)

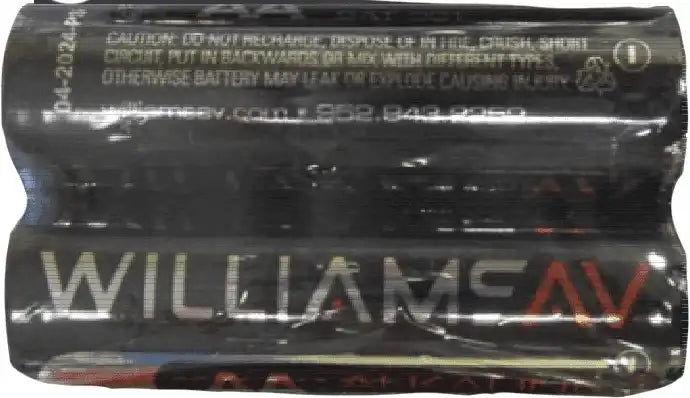

BAT 001-2Alkaline, 1.5 Volt
CCS 056 S
|Interior Dimensions||13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H)|
|Exterior Dimensions||15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H)|
|Lid Inner Depth||1.5” (4 cm)|
|Bottom Inner Depth||5.2” (13 cm)|
|Approx. weight (empty)||6.6 lbs (3 kg)|
|Minimum Temperature||-40ºF (-40ºC)|
|Maximum Temperature||160ºF (71.1ºC)|
|Foam - FMP 057|
|Dimensions||18.25" x 12.5" x 3"|
|Frequency Response||50 Hz – 16 kHz|
|Sensitivity||-70 dB ± 3 dB|
|Plug||3.5 mm mono, right-angle|
|Replacement Windscreen||WND 009|
PPA R38N architectural and engineering specificationsThe receiver shall be encased in black, PC/ABS impact-resistant plastic with a hinged battery door. The receiver shall be a body-pack style and include a detachable belt-clip for hands-free operation. The receiver shall have a 3.5mm stereo jack to accommodate stereo or mono low impedance earphones, headphones and neckloops. The receiver shall have a power button that is backlit indicating power is on. The receiver shall receive 17 preset wideband channels between 72-76MHz. Channel selection shall be made in the menu. The receiver shall have channel-lock capability. The receiver shall have a slide switch inside the battery compartment to select disposable Alkaline or NiMH rechargeable battery operation. It shall have charger contacts on the bottom of the receiver for use with Williams Sound drop-in chargers CHG 3512 and CHG 3502. The recevier shall operate up to 50 hours with two disposable AA Alkaline batteries (BAT 001-2) and up to 32 hours with two AA NiMH rechargeable batteries (BAT 026-2). The receiver shall provide a maximum output of 35mW at 16Ω with an earbud type earphone. The systems audio frequency response shall be 200Hz to 15kHz ± 3dB and the signal to noise ratio shall be 65dB min. The receiver sensitivity shall be 2µV or better at 12dB Sinad with squelch defeated. The receiver shall accept up to ±75kHz FM deviation and have a 75 µS de-emphasis time constant. The receiver shall have FCC, Industry Canada approvals and be compliant with RoHS and WEEE regulations. The receiver shall be covered by a Lifetime PLUS Limited Warranty, 90 Days on most accessories. This receiver model shall be the Williams Sound model PPA R38N.
|4.1" x 2.85" x 1.38" (104 x 72 x 35mm)|
|4.6oz (130g) with batteries. 2.6oz (73g) without batteries|
|Black/Silver. Black ABS Plastic case with Aluminum faceplate.|
|(2) AA Alkaline or (2) AA NiMH Rechargeable|
|(2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.|
|(2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.|
Operating Temp. Range:
|32° – 122°F (0° to 50°C)|
|17 Wideband, accessed via menu|
|72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*|
|Power button, backlit green. Good battery strength - glows solid. Low battery - flashes.|
|2 µV at 12 dB Sinad with squelch defeated|
|200 Hz – 15 kHz, ±3dB|
|FM, +/- 75 kHz peak deviation|
|Minimum 65 dB @ 1.0V|
|Integral with earphone/headphone cord|
|35 mW max at 16 Ω|
|3.5 mm stereo jack, mono output for stereo or mono earphones/headphones|
|Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ω|
Power Save Mode:
|Enters sleep mode after approximately 3 minutes of no RF signal|
|FCC, Industry Canada, RoHS, WEEE|
|Lifetime PLUS Limited Warranty, 90 Days on most accessories.|
PPA T46 architectural and engineering specifications
- The transmitter shall be a wide-band body-pack transmitter and shall operate on 17 selectable frequencies between 72MHz and 76MHz. It shall operate for up to 30 hrs with two AA Alkaline batteries and be housed in a black plastic enclosure with an aluminum faceplate. It shall have battery recharge ability utilizing Williams Sound drop-in chargers.
- The transmitter shall have a 3.5 mm microphone jack and a 2.5 mm auxiliary audio input jack. The microphone cord will serve as the transmitting antenna. The Transmitter shall have three buttons on the front to access channel select, master and aux gain, compression on/off, channel lock and screen adjustments. There shall be an OLED screen on the front of the Transmitter displaying current operating status and menu information.
- The transmitter shall have the ability to operate in dual channel mode whereby the user can switch between two different transmitting channel presets, each with its own set-up parameters (channel, master volume, aux volume).
- There shall be a power switch which also serves as a microphone mute control on the top bezel of the transmitter.
- The transmitter shall have wide band FM modulation at 75 KHz peak with a frequency response of 180 Hz to 13 KHz.
- The transmitter shall be covered under a limited lifetime parts and labor warranty.
- The transmitter shall comply with FCC Part 15.
- This transmitter shall be the Williams Sound model PPA T46.
|Dimensions:||4.1” L x 2.8” W x 1.1” D (104 mm x 71 mm x 28 mm)|
|Weight:||2.6 oz (74 g), no batteries|
|Enclosure Material:||Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate|
|Battery Type options:||Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life|
|Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14–16 hours, uses CHG 3502 or CHG 3512 Charger|
|Operating Frequencies:||Selectable, 17 channels, 72.1 – 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)|
|Stability:||± .005%, frequency synthesized, crystal reference, PLL|
|Modulation:||Wide-band FM, 75 kHz peak, 75 µS pre-emphasis|
|RF Output:||80 mV/m at 3 m (max. allowed by FCC rules)|
|Range:||150 ft/45 m|
|Frequency Response:||180 Hz to 13 kHz, ± 3 dB at 1% max. THD|
|Signal-to-Noise Ratio:||65 dB (typical) transmitted|
|Transmit Antenna:||Integral with microphone cord|
|Microphone:||Electret type, 3.5 mm mono plug|
|External Display:||OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings|
|External Controls:||Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. “Up”, “Down” and “Menu” buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door|
|External Indicators:||Power LED - Green, flashes when battery is low|
|Mic Input:||3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range|
|Aux Input:||2.5 mm stereo jack, adjustable gain with 60 dB range|
|Audio Compression:||1:1 (off) or 2:1 (on) selectable in menu|
|Compatible Receivers:||PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600,|
|Approvals/Directives:||FCC, Industry Canada, RoHS, WEEE|
|Warranty:||Lifetime PLUS Limited Warranty, 90 Days on most accessories.|
TGS PRO 737 with PPA R37 receivers
