Williams AV TFP 062 – Power Supply for WaveCAST and FM+

Product Overview

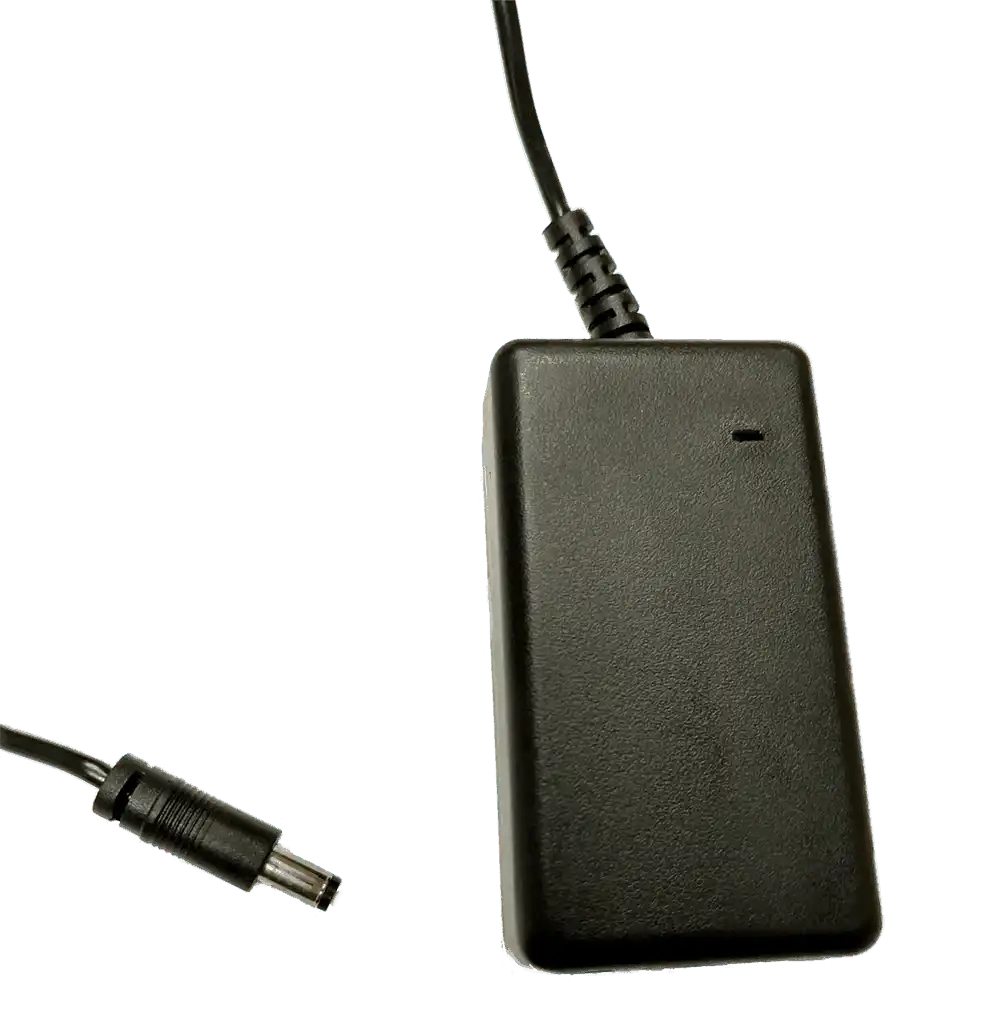

The Williams AV TFP 062 is the factory replacement power supply for WaveCAST, WaveCAST EIGHT, and FM+ assistive listening transmitters. It delivers regulated 24 VDC at 750 mA from a universal 100–240 VAC input, making it suitable for rack installations worldwide. AV integrators and facilities managers keep the TFP 062 on hand as a spare to minimize downtime in commercial assistive listening systems.

Product Description

Power supplies are the most common field-replaceable component in any installed AV system, and sourcing the correct vendor-specified unit matters. The TFP 062 is the exact supply Williams AV ships with its WaveCAST Wi-Fi audio transmitters, the eight-channel WaveCAST EIGHT, and the FM+ dual FM/Wi-Fi transmitter line, so output voltage, current rating, and connector polarity are guaranteed to match. The 18 W desktop-style supply uses a detachable IEC line cord, which simplifies cable management inside equipment racks and allows region-specific cords to be substituted for international deployments. Its 2.5 mm ID center-positive barrel connector mates directly with the DC input on compatible transmitters. Because the input accepts 100–240 VAC at 50/60 Hz, a single SKU covers both domestic and international projects. Use it to replace a failed unit, to power a transmitter relocated to a second rack, or to stock service inventory for venues running multiple assistive listening channels. It pairs with transmitters such as the WaveCAST EIGHT (WF T8), and you can browse the full line of transmitters, receivers, and accessories in our Williams AV collection.

Key Features

• OEM Replacement — Matches the factory power supply for WaveCAST, WaveCAST EIGHT, and FM+ transmitters, so electrical compatibility is assured.
• Universal Input — Accepts 100–240 VAC at 50/60 Hz, allowing the same unit to be deployed in any region with the appropriate IEC line cord.
• Regulated 24 VDC Output — Supplies 24 VDC at 750 mA (18 W) to meet the full power demand of compatible transmitters.

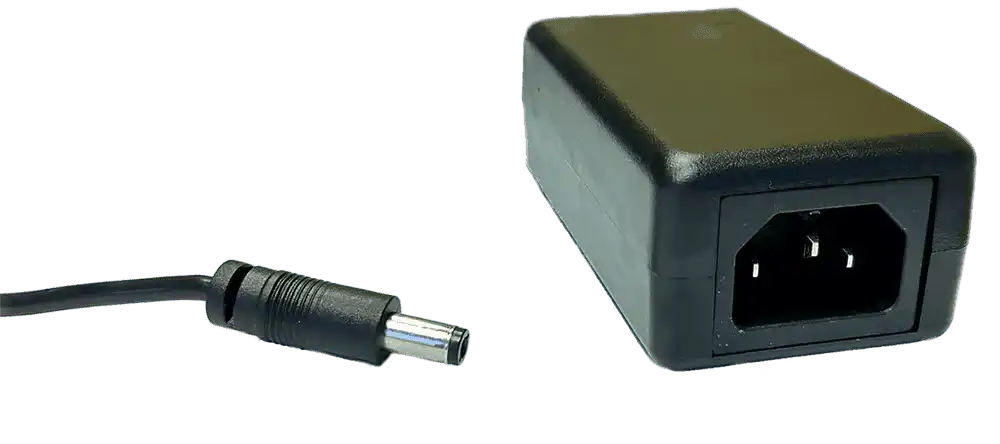

• Detachable IEC Line Cord — Simplifies rack cable management and lets installers substitute country-specific power cords.
• Center-Positive Barrel Connector — 2.5 mm ID center-positive plug mates directly with the DC input on compatible Williams AV hardware.

Technical Specifications
