Williams AV PPA R37 HD – FM Assistive Listening Receiver with Headphone
Williams AV PPA R37 HD – FM Assistive Listening Receiver with Headphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Williams AV PPA R37 HD – FM Assistive Listening Receiver with Headp...
Product Overview

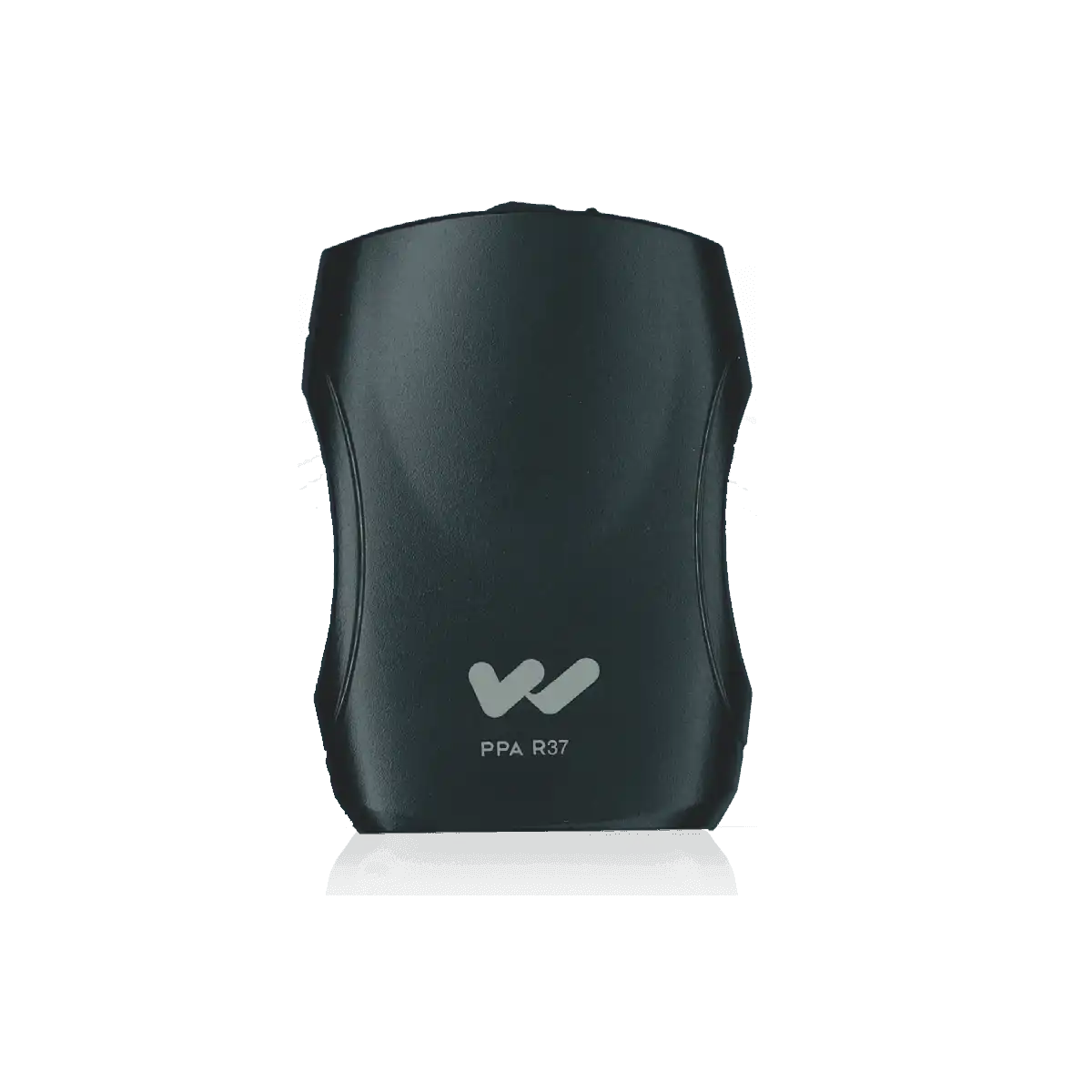

The Williams AV PPA R37 HD packages the proven R37 FM assistive listening receiver with a HED 021 folding mono headphone and AA batteries, ready for immediate deployment. Operating across 17 preset wideband channels in the 72-76 MHz band reserved for hearing assistance by the ADA, the receiver pairs with any Williams Sound wideband FM transmitter, making it a straightforward choice for venues, training rooms, and classrooms that prefer over-ear headphones to earbuds.
Product Description
The R37's digitally synthesized tuning delivers stable, clear audio, and a seek button inside the battery compartment steps through all 17 preset frequencies. Channel-lock capability keeps the receiver on the house frequency so guests cannot accidentally retune it, while a combination volume/power dial and green LED status indicator keep operation intuitive for any listener.

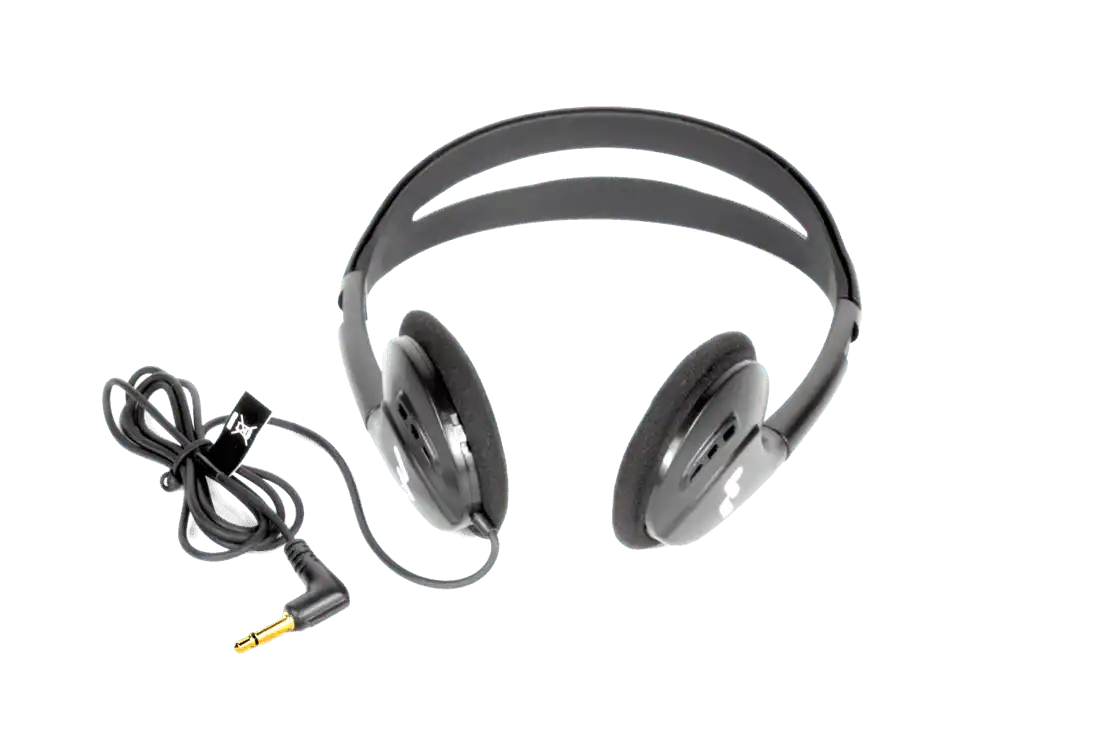

The included HED 021 folding headphone provides a 30 mm driver in a comfortable on-ear format that is easy to sanitize and reissue between events — a practical advantage for venue receiver fleets. The 3.5 mm stereo/mono jack also accepts earbuds and neckloops, so telecoil-equipped hearing aid users can couple directly to the broadcast in support of ADA assistive listening compliance. The receiver runs up to 50 hours on two AA alkaline batteries, enters a battery-saving sleep mode after about six minutes without an RF signal, and is rechargeable-ready via an internal battery switch and contacts for Williams Sound drop-in chargers.
Need a transmitter or additional receivers? Pair the R37 HD with the PPA T27 compact FM transmitter or browse the full Williams AV collection at Creation Networks.
Key Features
- Folding Headphone Included — The HED 021 mono headphone with 30 mm driver offers comfortable over-ear listening that is easy to clean and reissue.
- 17-Channel Seek-Button Tuning — Access all 17 preset wideband frequencies in the 72-76 MHz hearing assistance band.
- Universal Transmitter Compatibility — Works with all Williams Sound 72-76 MHz wideband FM transmitters for simple system expansion.
- Channel-Lock Capability — Lock the receiver to the venue channel to prevent accidental retuning by listeners.
- Hearing Aid Compatible Output — The 3.5 mm stereo/mono jack supports neckloops for telecoil-equipped hearing aids.
- Up to 50 Hours Battery Life — Two AA alkaline batteries deliver approximately 50 hours of operation, with a low-battery indicator.
- Battery-Saving Sleep Mode — The receiver sleeps after about six minutes with no RF signal, extending battery life between events.
- Rechargeable Ready — Bottom charging contacts and a battery-type switch support NiMH operation with CHG 3502 or CHG 3512 drop-in chargers.
Technical Specifications
| System Includes | (1) PPA R37N receiver, (1) BAT 001-2 AA alkaline batteries, (1) HED 021 headphone, (1) CLP 023 belt clip |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35 mm) |
| Weight | 4.6 oz (130 g) with batteries; 2.6 oz (73 g) without |
| Channels | 17, seek-button selection in battery compartment |
| Operating Frequencies | 72.1-75.9 MHz (17 preset wideband channels) |
| Battery Life | Approx. 50 hrs on (2) AA alkaline; approx. 32 hrs on (2) AA NiMH (BAT 026) |
| Sensitivity | 2 µV at 12 dB SINAD, squelch defeated |
| Frequency Response | 200 Hz - 15 kHz |
| Signal-to-Noise Ratio | 65 dB min @ 100 µV |
| Audio Output | 35 mW max peak into 16 ohms, 3.5 mm stereo/mono jack |
| Antenna | Integral with earphone/headphone cord |
| Headphone (HED 021) | Mono folding headphone, 3.5 mm plug, 30 mm driver, 32 ohms, 20 Hz - 20 kHz, 110 dB @ 1 kHz |
| Auto Shut-Off | Sleep mode after approx. 6 minutes with no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty; 90 days on most accessories |
