Williams AV POE KT1 – IR T2 PoE Wiring Kit for Power Supply
Product Overview
The Williams AV POE KT1 is a passive power-over-Ethernet wiring kit for the IR T2 medium-area infrared transmitter. It lets an installer deliver power plus one signal option — one channel of balanced line-level audio, one or two channels of unbalanced line-level audio, or RS-232 control and monitoring — over a single cable run to the transmitter. The KT1 is the kit to specify when the IR T2 will be powered by its included power supply rather than a PoE switch.
Product Description
Mounting an IR T2 transmitter high on a wall or ceiling gives the best infrared coverage of a conference room or courtroom, but it also puts the device far from the audio source and the rack. The POE KT1 consolidates the connections so one structured-cable run carries both power and signal to the transmitter location. The kit includes the WCA 131 and WCA 133 connector assemblies: the head-end side accepts the IR T2's standard power supply (such as the TFP 057) plus the chosen audio or RS-232 connection, and the transmitter side breaks those services back out at the mounting point. Installers choose between one balanced line-level channel, one or two unbalanced line-level channels, or an RS-232 control and monitoring link, depending on the system design. If the installation will instead use a PoE switch or the POE 001 injector for power, specify the companion POE KT2 kit. The POE KT1 pairs with the IR T2 SoundPlus infrared transmitter; see also the POE KT2 wiring kit for PoE-switch-powered designs.
Key Features
- Single-Cable Installation — Carries power and signal to a remotely mounted IR T2 over one cable run, reducing pathway and labor costs.
- Three Signal Options — Supports one balanced line-level audio channel, one or two unbalanced line-level channels, or RS-232 control and monitoring.
- For Local Power Supply Designs — Built for installations using the power supply included with the IR T2, rather than a PoE switch.
- Connectors Included — Ships with the WCA 131 and WCA 133 connector assemblies needed at both ends of the run.
- RS-232 Monitoring Path — Enables control-system integration and status monitoring of the transmitter from the rack.
Technical Specifications
| Model | POE KT1 |
| Function | Passive PoE wiring kit for IR T2 (power-supply-fed installations) |
| Signal Options | 1 balanced line-level channel; 1–2 unbalanced line-level channels; or RS-232 control/monitoring |

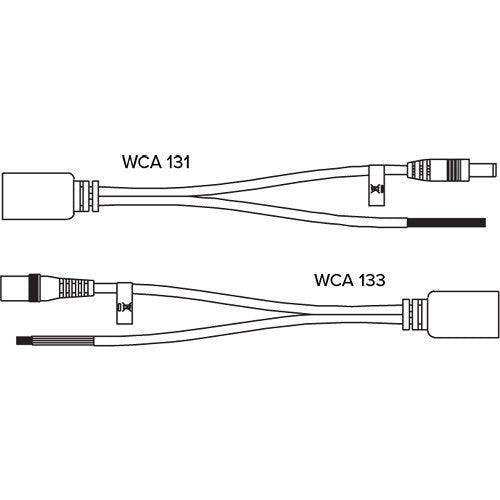

| Includes | WCA 131 and WCA 133 connectors |
| Compatibility | IR T2 infrared transmitter (sold separately) |
