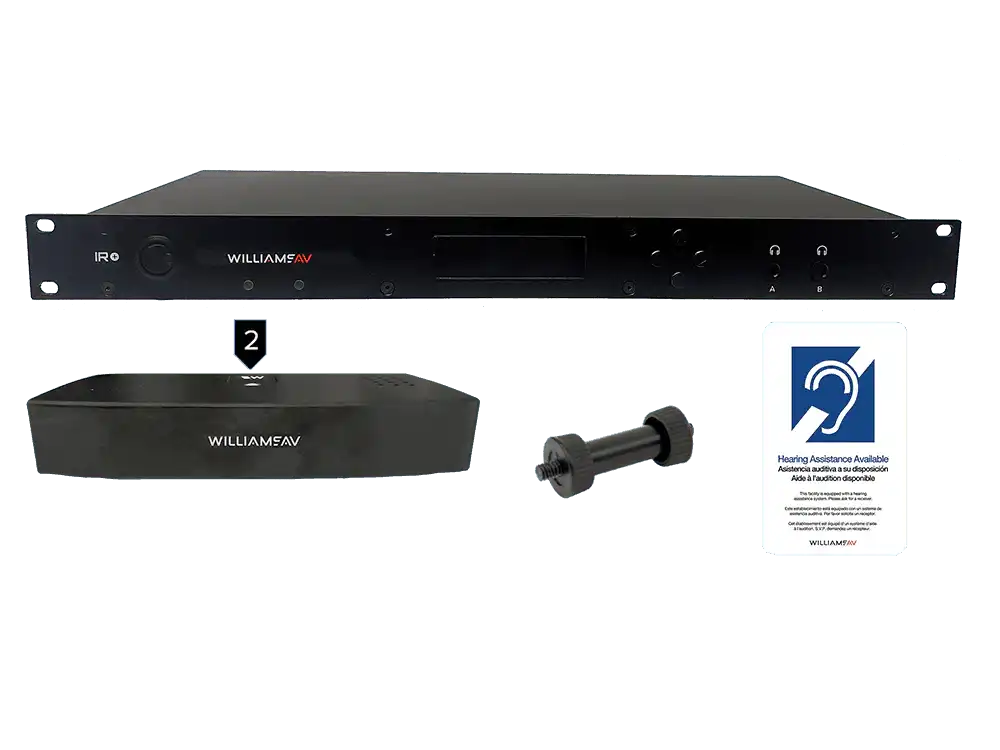

System Includes
IR M1 infrared modulator
(2) IR E4 emitter
IDP 008 accessibility sign
MLB 003 linking bar
Specifications
IR ME2
IR M1
| Dimensions: | 19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm) |
| Weight: | 5.2lb. (2.4 kg) |
| Color: | Black |
| Rack Mount: | Single Rack Unit |
| Power Supply: | International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive |
| Power Switch: | Rocker switch with LED |
| Signal to Noise Ratio: | 67 dB (typical) |
| Modulation: | FM Wideband, +50kHz deviation, 50uS pre-emphasis |
| Carrier Frequency: | Selectable, 2.3/2.8 or 3.3/3.8MHz |
| Frequency Response: | 40 to 16,000Hz, +1 dB, -3dB, electrical response |
| Total Harmonic Distortion: | Less than 2%, electrical response |
| Audio Processor Functions: | DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control |

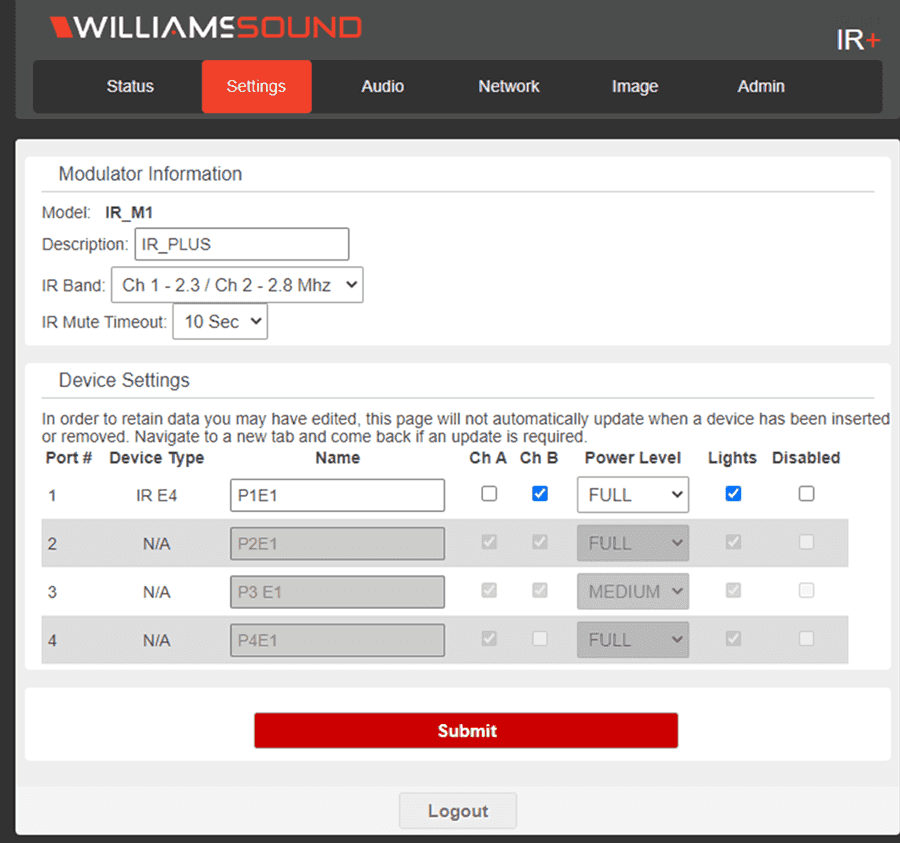

| Auto Carrier Shut-Off: | Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage. |
| Infrared Test LED: | Dual IR LED for receiver testing, monitoring, and audio signal testing. |
| Audio Input: | (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power |
| Dante: | Optional |
| Internal Test Tone: | 400 Hz internal test tone selectable as audio input source for setup and diagnostics |
| Remote Configuration: | Available through embedded website |
| Headphone Output: | (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs |

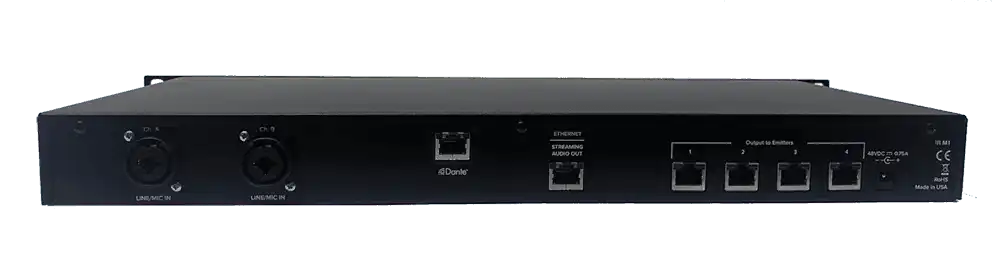

| Emitter Output Jack: | Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Modulator, 90 days on accessories |
IR E4
| Dimensions: | 7.5” (W) x 1.4” (H) x 3.6” (D) (19.1 cm x 3.6 cm x 9.1 cm) |
| Weight: | 0.8 lb (362 g) |
| Color: | Black |
| Power: | 48 VDC supplied by IR M1 via CAT 5e cable. |
| Coverage Area: | Up to 18,000 square feet in single channel mode |
| Connectivity: | +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Emitter; 90 days on accessories |
