Digi-Wave 400 Series Tour Guide System for two or more tour guides to combine skills and guide as a team.

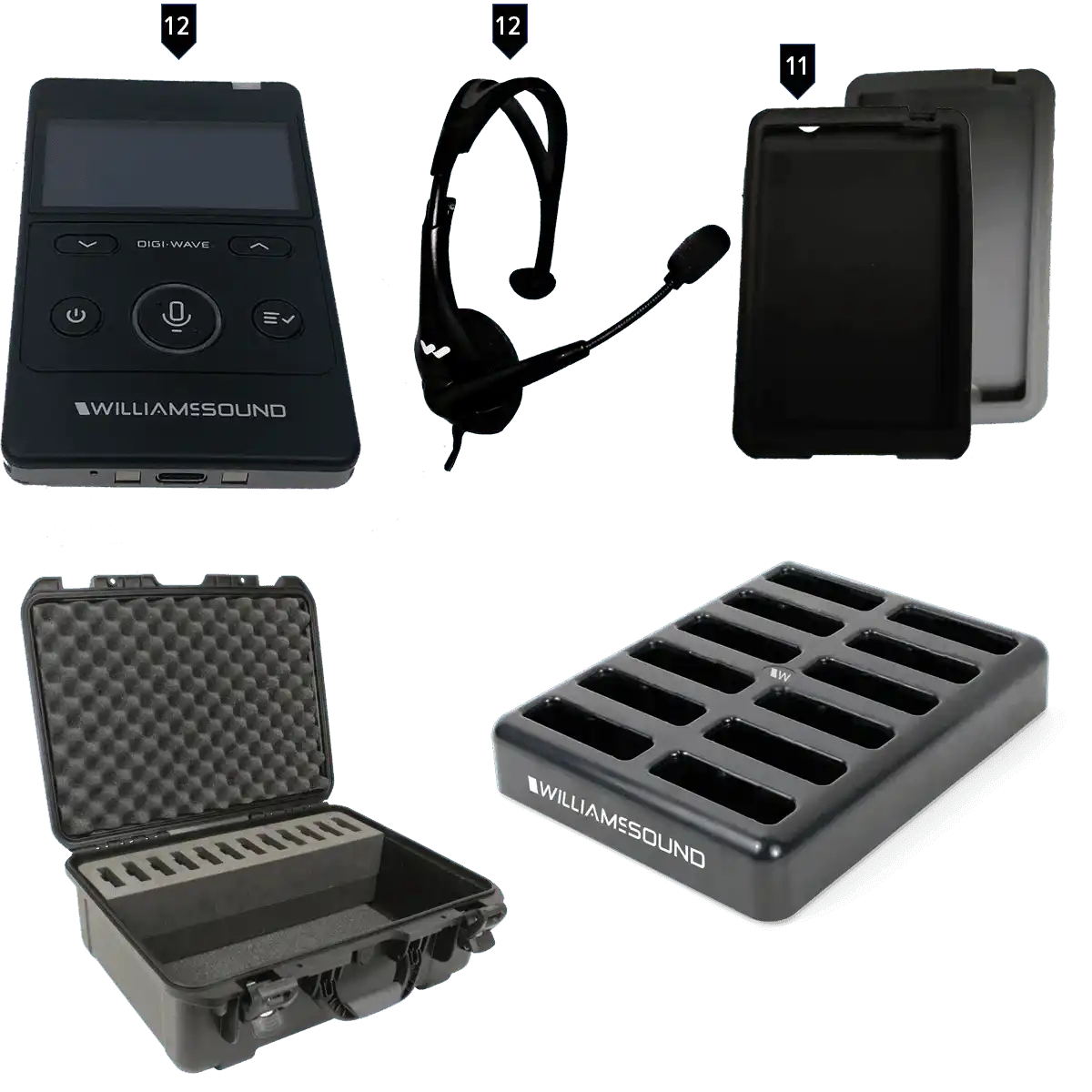

Includes: (12) DLT 400 transceivers, (12) MIC 144 headset microphones, (1) CHG 412 12-bay charger, (1) CCS 042 DW system carry case, (1) CCS 061 GR grey silicone skin, (11) CCS 061 BK black silicone skins.
These days contactless communication is essential to get through our day-to-day lives. People are figuring out ways to work from home and socially distance, but what if this isn't possible in your line of work? Williams AV has you covered with the Digi-Wave 400, a full duplex portable, wireless 2-way, system for short range communication. The Digi-Wave is ideal for social distancing in a variety of applications including teaching, training, and interpreting. It can also be used in
courtrooms, classrooms, hospitals, restaurants and warehouses. In addition, the Digi-Wave400 is a cost-effective alternative to other expensive 2-way radios.
The Digi-Wave 400 system is a digital spread-spectrum (DSS), simultaneous two-way
wireless communication system. The system makes hearing easier in everyday situations by reducing background noise and compensating for poor room acoustics or distance from the sound source. Its frequency-hopping algorithm avoids interference and is a very secure method of communication. Every Digi-Wave System includes at least one two-way transceiver (DLT 400) and one or more receivers (DLR 400 RCH or DLR 400 ALK), depending upon the application.
The system is commonly used for intercom, with up to six people able to speak simultaneously and even more listening. It's also ideal as a human interpretation system that supports one floor language and up to 14 translated languages. Digi-Wave systems are also frequently used with guided tours - with
one or more tour guides (2-way), with audience participation (2-way) or without
audience participation (1-way listen only).

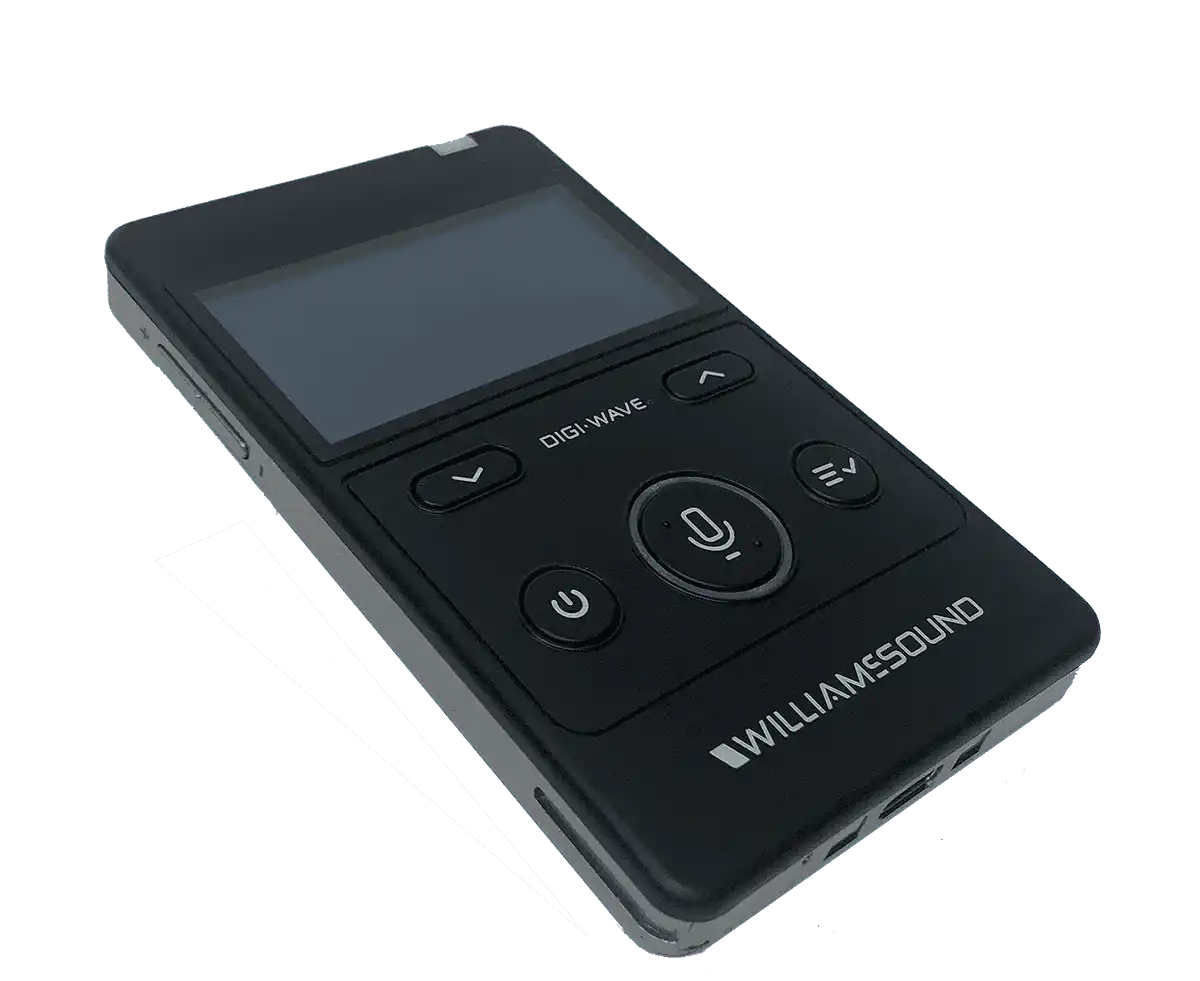

(12) DLT 400 transceivers
(12) MIC 144 headset microphones

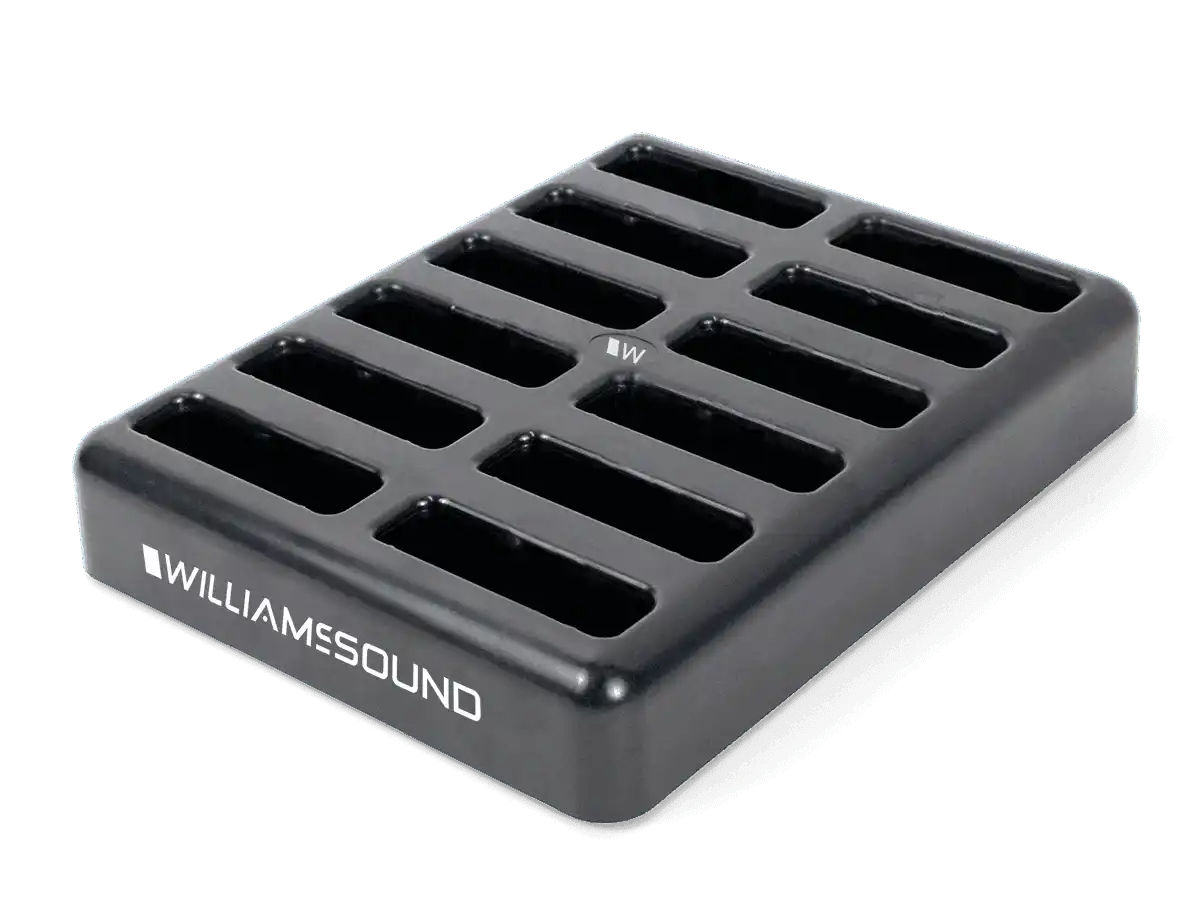

(1) CHG 412 12-bay charger

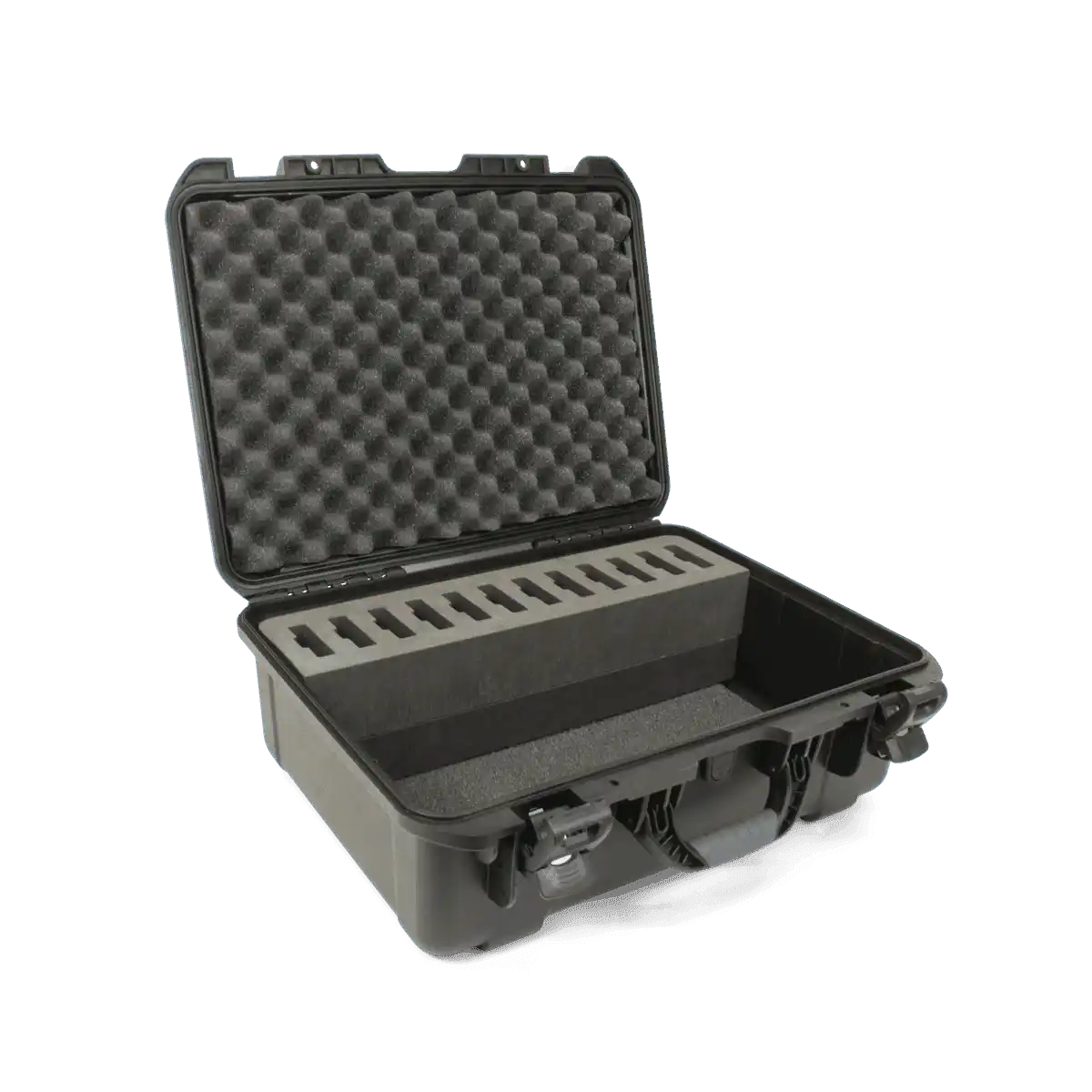

(1) CCS 042 DW system carry case
(1) CCS 061 GR grey silicone skin
(11) CCS 061 BK black silicone skins
How It Works
- Portable digital transceiver with built-in mic
- Completely portable - no base station or rack-mounted components required
- Crystal-clear digital sound quality
- Use as a two-way wireless intercom or in one-way mode
- Accommodates six simultaneous talkers and an unlimited number of listeners
- Built for security. Optional 128+87 bit encryption, secure key code, lock for settings
|Dimensions:||9"L x 7"W x 1.5"H (23 cm L x 17.8 cm W x 3.8 cm H)|
|Weight:||1.8 lbs (845 g)|
|Enclosure:||Black, ABS plastic with metal base|
|Power Supply Input:||TFP 066, 90-240 VAC input, 1.5 A max *|
|Power Supply:||Universal DC adapter, 5 VDC - 6A output, center positive|
|Output Rating:||5 VDC, 0.5 A per bay (12 charging bays)|
|Charging Time:||~5 hours|
|Unit Capacity:||12 Units|
|Compatible Units:||Transceiver: DLT 400 Receiver: DLR 400 RCH|
|Indicators:||Charge status indicators on DLT or DLR|
|Approvals:||CE, FCC, WEEE, RoHS, CB|
|Warranty:||2-year (cables and power supply warranty for 90 days)|
|Dimensions||4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)|
|Weight||3.3 oz (94 g) including battery|
|Case Material||Black ABS plastic|
|Battery type||Lithium Polymer with smart charge built into transceiver; 1800 mAH|
|Battery life||Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx|
|Power Save||Auto Sleep Mode after 5 minutes of no RF signal from compatible devices|
|Charge time||5 hrs. approx.|
|System Voltages||OLED 14VDC; RF 5VDC; Logic 3.3 VDC|
|Operating frequencies||2.4 GHz (ISM band); 2402 – 2476 MHz FHSS|
|Audio Frequency response (-3dB Level)||Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz|
|SNR||73 dB (A-weighted, default Rx volume with mic input )|
|THD||0.1 % (Default Volume, 1kHz)|
|Microphone input||Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.|
|Line Input||USB-C, Adjustable level|
|Headphone Output||3.5 mm TRRS headphone jack; 25 mW, R 32 ohms|
|Audio Output||Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level|
|Range||Up to 900 ft (274 m) (depending upon environmental conditions)|
|RF Output||19 dBm Typical|
|Security||87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings|
|Side tone||-6 dB below volume, tone variation (Off, Low and High settings available)|
|LEDs||Red LED around Talk button when enabled; Bi-color, changing green and red LED at top|
|Charging Connectors||USB-C; Two contacts for use with CHG 412|
|Compatible Receiver||DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations|
|Operating Temperature Range||14º to 113ºF (-10º to 45ºC)|
|Approvals||FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki|
|Warranty||2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.|
|Driver Size||23 mm|
|Freq. Response||20 - 20kHz|
|Max Power Input||30 mW|
|Sensitivity||118 dB @ 1kHz|
