Williams AV CHG 3502 – 2-Bay Drop-In Charger for Body-Packs
Product Overview

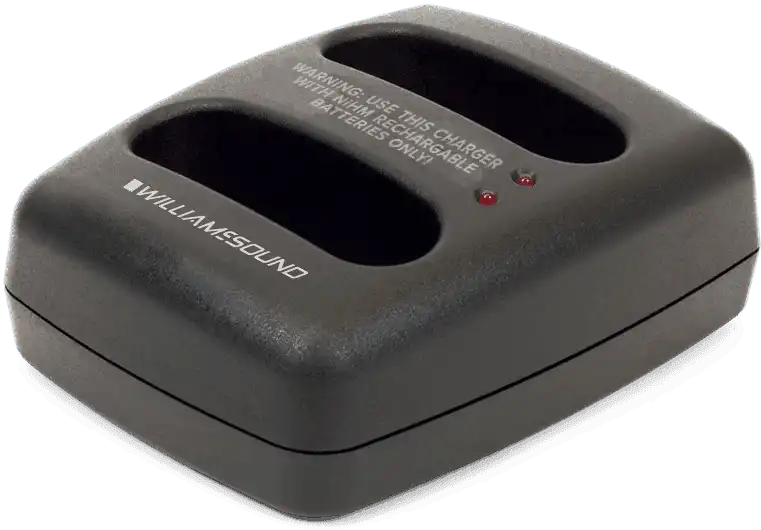

The Williams AV CHG 3502 is a 2-bay drop-in charger that keeps a pair of Williams AV body-pack receivers or transmitters charged and ready, with the power supply included. Units dock into the bays with their NiMH AA batteries installed, so there is no battery handling during daily charging routines. For a small assistive listening setup — one transmitter and one receiver, or two receivers — it is the most compact charging station in the Williams AV line.
Product Description
The charger accepts Williams AV 3 V body-packs including the PLR BP1 hearing loop receiver, PPA R37, R37-8, and R38 FM receivers, the PPA T46 FM transmitter, and the WIR RX22-4 infrared receiver. That coverage lets one small charger support whichever assistive listening technology a room uses — FM, infrared, or induction loop. Charging output is 100 mA per bay through a 6 VDC input, fed by the included TFP 041 power supply (100-240 VAC input).
The nominal charge cycle is 16 hours, which fits an overnight routine: dock the body-packs after the last session and they are ready the next morning. Two red LEDs — one per bay — light while charging so staff can verify both units are seated. At under five inches long and 1.1 lbs, the black ABS charger takes minimal space at a reception desk, sound booth, or classroom cabinet.
Need batteries with the charger? The BAT KT6 charger kit bundles this charger with two AA NiMH batteries. For larger fleets, see the CHG 3512 12-bay charger.
Key Features
- Dual Drop-In Bays — Charges two body-pack transmitters or receivers with NiMH batteries left installed in the devices.
- Multi-Technology Support — Compatible with FM, infrared, and hearing loop body-packs including PLR BP1, PPA R37/R37-8/R38, PPA T46, and WIR RX22-4.
- Overnight Charge Cycle — 16-hour nominal charging fits an end-of-day docking routine for next-morning readiness.
- Per-Bay Charging LEDs — Two red indicators confirm each docked unit is charging.
- Power Supply Included — Ships with the TFP 041 supply (100-240 VAC input, 6 VDC output) for US use.
- Minimal Footprint — 4-7/8" x 3-7/8" x 2" black ABS housing weighs just 1.1 lbs.
Technical Specifications
| Unit Capacity | 2 units |
| Compatible Units | PLR BP1, PPA R37, PPA R37-8, PPA R38, PPA T46, WIR RX22-4 |
| Charging Time | 16 hours nominal |
| Charger Power | Input: 6 VDC, 300 mA, center positive; output: 100 mA per bay |
| Power Supply | Williams AV TFP 041 (US); input 100-240 VAC, 50-60 Hz, 0.5-0.3 A; output 6 VDC, 1.5 A |
| Dimensions | 4-7/8" L x 3-7/8" W x 2" H (12.4 x 9.8 x 5.1 cm) |
| Shipping Weight | 1.1 lbs (0.5 kg) |
| Enclosure | Black ABS plastic |
| Indicators | 2 red LEDs, one per bay; lit while charging |
| Approvals | CE, FCC, RoHS |
| Warranty | 1 year |
