Visix Touch Room Sign - Hardware Only

Product Overview

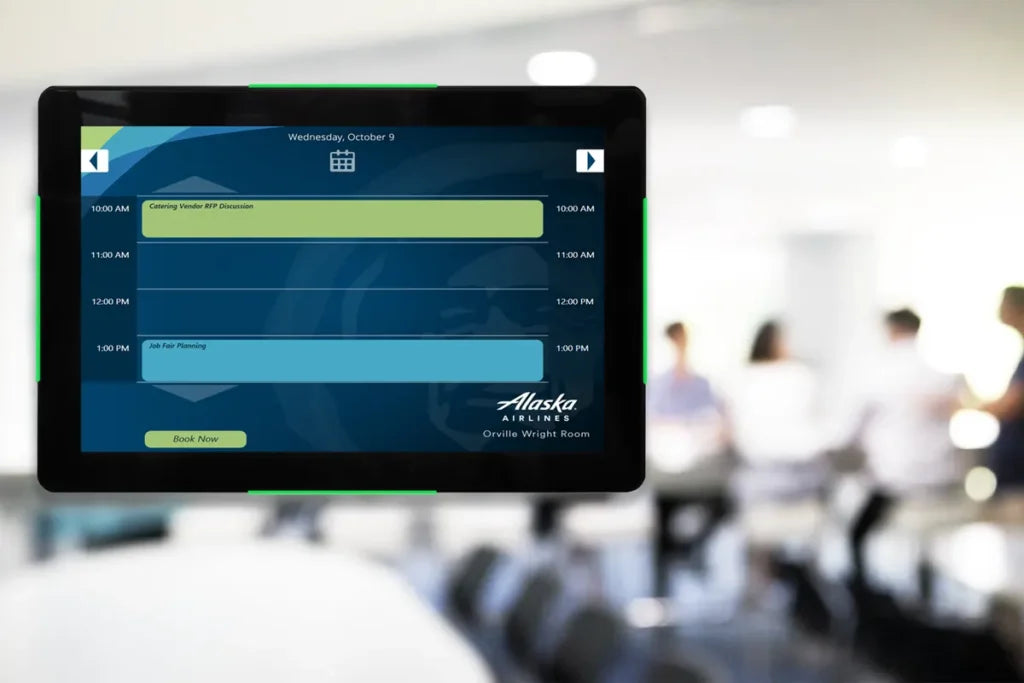

The Visix Touch Room Sign — Hardware Only (SKU: VX-R-T10-H) is the same 10.1-inch interactive conference room panel sold without a bundled software license, intended for organizations that already hold an active AxisTV Signage Suite license. Deploying this Visix Touch meeting room sign into an existing AxisTV infrastructure avoids redundant software purchases while adding a fully interactive scheduling display to any meeting space. The panel delivers real-time calendar data from Microsoft Exchange, Office 365, Google Calendar, EMS, CollegeNET, Mazevo, Astra Schedule, and Amadeus Delphi to the display outside each door. PoE+-powered over a single Ethernet cable, installation is straightforward in both new-construction and retrofit environments.

Product Description

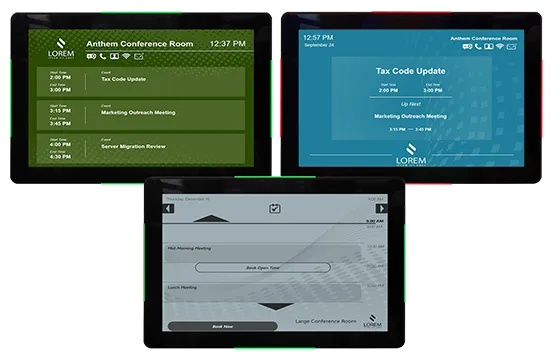

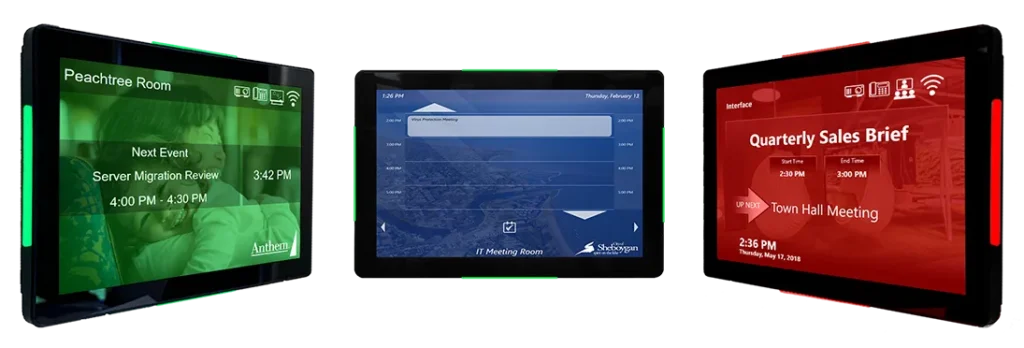

This hardware-only SKU ships the same Visix Touch room scheduling display as the full bundle, making it the right choice for AV integrators and IT teams expanding an existing Visix deployment. The 10.1-inch LCD touchscreen runs Windows 11 IoT Enterprise and connects to the AxisTV Manage server already in service at your facility, inheriting all existing schedule layouts, calendar integrations, and content playlists without additional configuration work. Red and green availability lights on all four sides of the panel provide at-a-glance room status for anyone in the corridor. Walk-up bookings are supported for Exchange, Office 365, EMS, EMS Platform Services, Mazevo, and CollegeNET 25Live, with reservations written back to the source calendar in real time. The sign connects via Gigabit Ethernet, with PoE+ delivering both power and data over a single structured cable run — no separate power outlet or power adapter is needed at the sign location. Interactive touch zones can be configured within AxisTV to surface wayfinding, meeting agendas, or other on-demand content directly from the room sign screen. Voice Recognizer Widget support and mass alert integration are available through AxisTV Signage Suite as with any other Touch deployment. This hardware-only purchase is ideal for phased rollouts, room additions, or replacement units in a facility where the software infrastructure is already in place.

Key Features

• Hardware Only — No Redundant License — Designed for facilities already running AxisTV Signage Suite; adds a sign without purchasing duplicate software.
• 10.1-Inch LCD Touchscreen — 1280 x 800 resolution (16:10 aspect ratio) landscape display for clear room schedule readability.
• Red/Green Availability Lights — LED side lights on all four sides communicate room availability without requiring screen contact.
• Broad Calendar Integration — Compatible with Exchange, Office 365, Google Calendar, EMS, CollegeNET, Mazevo, Astra Schedule, Amadeus Delphi, JSON, XML, and HTML5 sources via existing AxisTV server.
• Walk-Up Room Booking — Touchscreen reservations sync immediately to Exchange, Office 365, EMS, Mazevo, and CollegeNET from the room sign.
• PoE+ Powered — Single Ethernet cable provides power and data; compatible with PoE+ switches or the optional Visix PoE+ power injector.
• Windows 11 IoT Enterprise OS — Enterprise operating system for full AxisTV interactivity and digital signage playback.
• Surface and Recess Mount Ready — Ships with hardware for both surface and recess wall mounting; optional glass mount kit available separately.
• Gigabit Ethernet Connectivity — High-speed wired network connection for reliable content delivery and calendar sync.

Typical Applications

• Expanding an existing Visix Touch deployment with additional room signs
• Replacement units for existing Touch room sign installations
• Phased multi-room conference center rollouts
• Corporate campus meeting room additions
• Government and higher education facility expansions
• Huddle room and training room additions to existing AxisTV environments

Technical Specifications

Frequently Asked Questions
