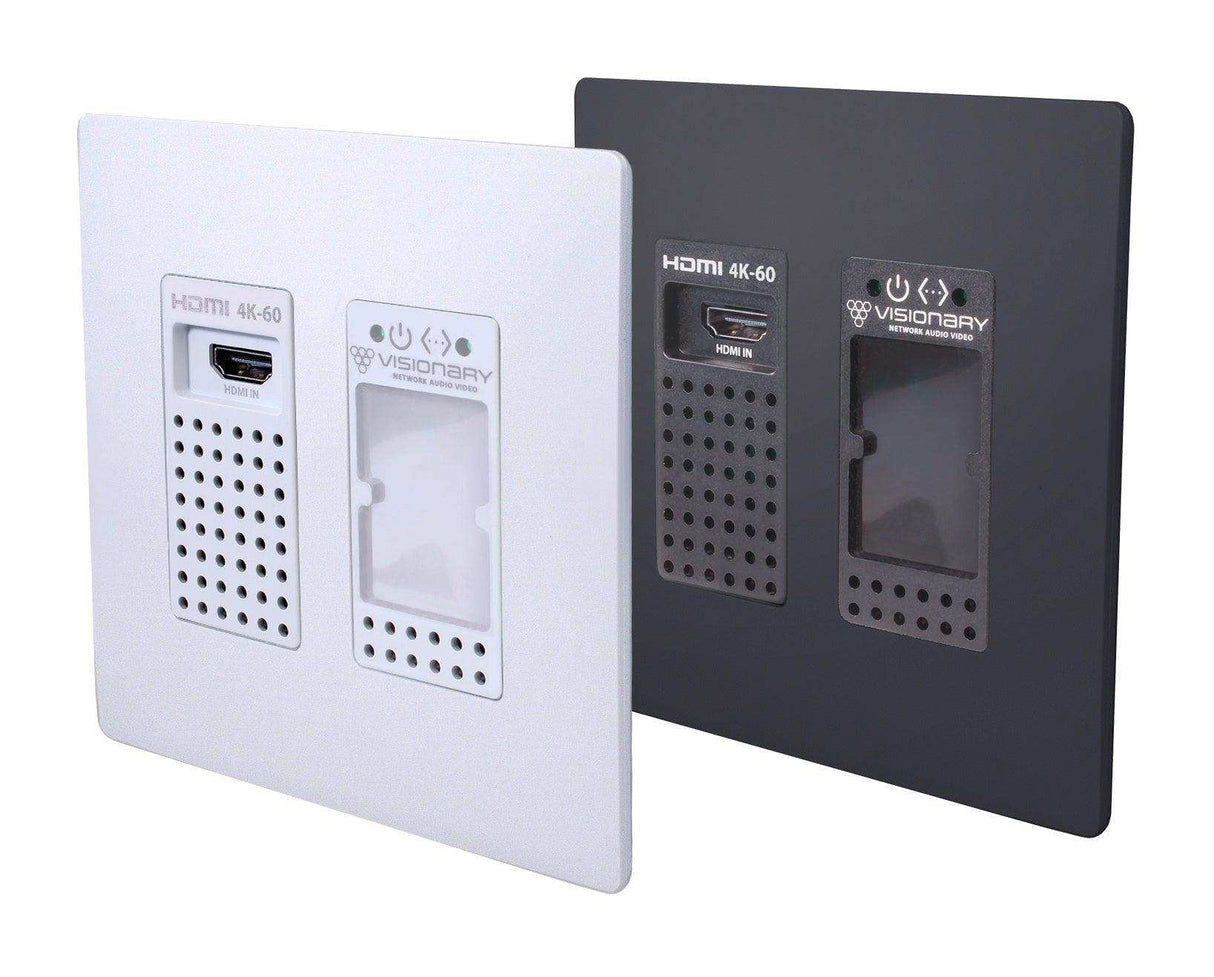

Visionary Solutions E5-WP-H – 4K60 4:4:4 Wallplate Encoder, HDMI Only

Product Overview

The Visionary Solutions E5-WP-H is an HDMI-only 4K60 4:4:4 AV over IP wallplate encoder designed for streamlined commercial AV installations. Powered over Ethernet through a single Gigabit LAN port, this wall plate encoder for conference room AV systems encodes any HDMI source onto a standard IP network with sub-frame, visually lossless latency. It is a clean, in-wall building block for scalable 4K video distribution over IP in corporate, education, and government environments.

Product Description

The E5-WP-H simplifies the 5 Series wallplate platform down to its most-requested configuration: one HDMI input, one network cable, installed in a standard wall box. It encodes sources up to 4K60 with full 4:4:4 chroma sampling and HDR support, using Visionary's JPEG2000-based adaptive codec with built-in AI to deliver visually lossless quality for both computer graphics and full-motion video at bitrates from 50 to 200 Mbps (or Auto up to 800 Mbps). Latency is approximately 2 ms at 1080p60 and 4K60 4:4:4 — effectively real time for live presentation and camera content. Native AES67 audio output integrates the encoder with professional networked audio systems at 24-bit 48 kHz. PoE (IEEE 802.3af) power through the single Gigabit port reduces cable clutter, and the fanless design runs silently at 0 dBA in occupied rooms. Enterprise deployments benefit from AES-256 stream encryption, 802.1x network authentication, HTTPS secure API, and SSH management, while mass configuration through the embedded web UI, LLDP discovery, and QoS support keep large endpoint fleets manageable. Fast switching is tearing free with no black screen between sources. The E5-WP-H deploys on existing enterprise networks or physically separate private AV networks and pairs with any Visionary 5 Series decoder, such as the DuetD-5, to complete the room. If you need analog audio and control extension at the wallplate, step up to the E5-WP.

Key Features

• 4K60 4:4:4 Video Encoding — Full-chroma UHD with HDR10, HDR10+, HLG, and Dolby Vision support for detail-critical content.
• Sub-Frame Latency (~2 ms) — Visually lossless, real-time transmission for live presentation and camera feeds.
• HDMI-Only Simplicity — One input and one network cable streamline installation and reduce points of failure.
• PoE Powered (IEEE 802.3af) — The single Gigabit LAN port carries AV over IP, control, and power on one category cable.
• Native AES67 Audio — Outputs networked audio at 24-bit 48 kHz for interoperability with AES67-compliant audio systems.
• AI-Optimized Adaptive Codec — JPEG2000-based compression dynamically tuned for graphics or motion video, 50–800 Mbps.
• Full Motion MJPEG Substream — Provides preview and monitoring feeds without impacting the primary 4K60 stream.
• Enterprise Security — AES-256 encryption, 802.1x, HTTPS secure API, and SSH for corporate and government networks.
• Fast, Clean Switching — Tearing free with no black screen and no frame lock during source changes.
• Mass Configuration, LLDP, QoS — Fleet-wide CSV configuration, location-aware discovery, and AV traffic prioritization.
• Silent Fanless Operation — Convection cooled with no moving parts, rated 0 dBA for occupied meeting rooms.
• Broad Control Compatibility — Vision Lite software plus Crestron, Q-SYS, Symetrix, and RTI drivers with integrator API.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

When should I choose the E5-WP-H over the E5-WP?
Choose the E5-WP-H when the room only needs an HDMI input at the wall. The E5-WP adds analog stereo I/O, IR over IP, RS-232 over IP, and USB extension at the wallplate.

How is it powered?
By PoE (IEEE 802.3af) through its single Gigabit LAN port; typical consumption is 12 W and no local power supply is required.

Is it quiet enough to install at the conference table?
Yes. The encoder is convection cooled with no fan or moving parts and is rated 0 dBA.

What decoder do I pair it with?
Any Visionary 5 Series decoder; the DuetD-5 is a common display-side companion with USB-C and Dante/AES67 support.

Does it satisfy enterprise network security requirements?
Yes. AES-256 stream encryption, 802.1x authentication, HTTPS secure API, and SSH management make it deployable on corporate and government networks.

Can a control system manage it?
Yes. Drivers exist for Crestron, Q-SYS, Symetrix, RTI, and others, alongside Vision Lite software and an integrator API.
