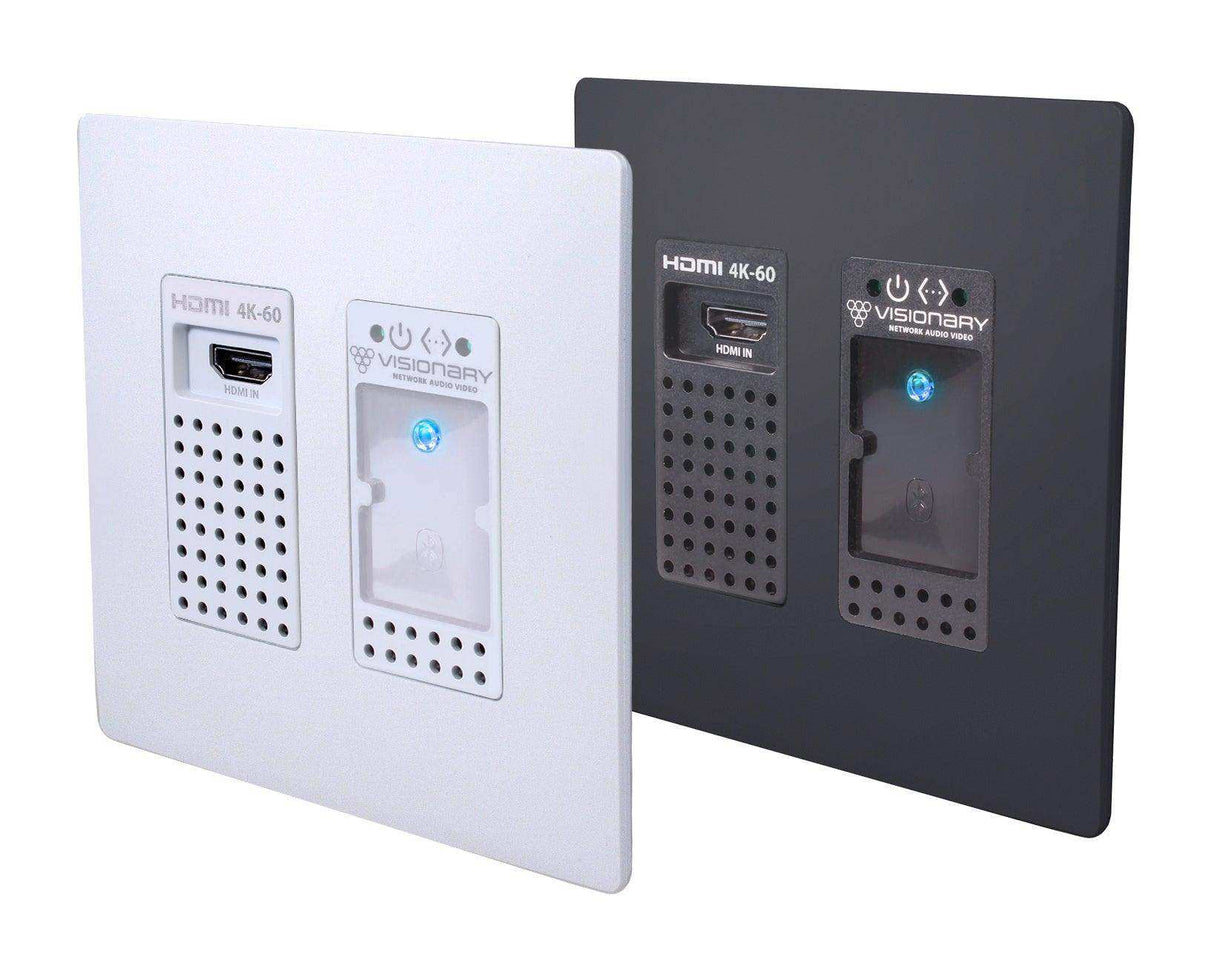

Visionary Solutions PacketAV E-WP-BT 4K UHD over IP Wall Plate Encoder Faceplate, Bluetooth

Availability: Call for Availability
Visionary Solutions SKU: E-WP-BT-BLACK
No reviews

Color: Black

Description

Introducing Visionary Solutions’ next-generation E5-WP-BT 4K60 4:4:4 AV over IP wallplate encoder with Bluetooth®. Based on the proven performance and flexibility of our previous generation PoE 4K UHD over IP encoders and decoders, the E5-WP-BT is designed to meet the growing demand for 4K video distribution in converged AV/IT environments.

The E5-WP-BT wallplate encoder delivers cinema-quality 4K60 4:4:4 video with ultra-low latency (Sub-frame ~2ms), ensuring visually lossless performance for applications that require high-resolution and real-time video playback.

The E5-WP-BT is equipped with Bluetooth® technology, enabling wireless audio streaming from compatible devices, simplifying audio integration and enhancing user experience in meeting rooms, classrooms, and other collaborative spaces.

The PacketAV® AV over IP products, including the E5-WP-BT, can be deployed on any industry-standard IP network, whether on existing enterprise networks or physically separate parallel networks, providing the flexibility to offload video traffic without intermingling with data or voice.

The E5-WP-BT wallplate encoder supports Power over Ethernet (PoE), reducing the need for additional power supplies and simplifying installation.

The E5-WP-BT harnesses the power of converged IP networks to bypass the constraints of traditional switch matrix distribution systems. This approach ensures a scalable and future-proof solution for professional AV designers and IT directors seeking an alternative to conventional distribution systems.

With the ability to operate on existing enterprise IP networks or private networks, the E5-WP-BT wallplate encoder offers seamless integration, delivering reliable and high-quality AV over IP distribution while minimizing network impact.

Embrace the future of AV distribution with Visionary Solutions’ E5-WP-BT 4K60 4:4:4 AV over IP wallplate encoder with Bluetooth®. Designed for easy installation and compatibility with industry-standard IP networks, the E5-WP-BT is the perfect solution for professionals looking to leverage the power of converged AV/IT environments to meet the growing demand for 4K video distribution.


4K60 4:4:4 Video Support

    Experience ultra-high-definition video with 4K resolution at 60 frames per second and full 4:4:4 color sampling for unparalleled image quality, suitable for professional applications where every detail matters.

Full Motion MJPEG Substream

    Maximize bandwidth efficiency and enhance video quality with a full motion MJPEG substream, delivering smooth, high-quality video feeds for preview or monitoring purposes without impacting the primary 4K60 4:4:4 video stream.

Native AES67 Audio Support

    Seamlessly integrates with AES67 audio networks, enabling high-quality, low-latency audio transmission over IP. Ensures full interoperability with other AES67-compliant devices for professional audio applications.

One Gigabit LAN Port for 4K60 4:4:4 Video, Control, and Powered Device (PD)

    A single Ethernet port for AV over IP, KVM over IP, USB over IP and RS-232 over IP, and POE Power Input

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI

    Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated AI to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
    Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

LLDP Support

    Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
    Allows for dynamic control of endpoints based on automatic discovery of physical location

QoS Support

    Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Seamless Fast Switching

    Tearing free, no black screen, no frame lock

Bluetooth® Audio Connectivity

    Bluetooth® 5.0 for extended range, faster data throughput,and more reliable connections
    Supports both A2DP profile for media streaming andHands Free Profile (HFP) for bi-directional smartphone bridging
    Connect easily and share audio from your Mac, Laptop, Tablet, Mobile, and Other Bluetooth® enabled devices

Enterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH

Enterprise applications demand a secure Network

    AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
    HTTPS Secure API – Using secure SSL/TLS communications HTTPS provides integrity that a client is communicating with the real API and receiving back authentic data. It also ensures privacy for applications and users using the API
    802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
    SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

Independent Routing

    Independently route all signals with the ability to separately matrix video & audio

Control

    Vision Lite Control Software
    3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
    *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

HDMI 2.0 and HDCP 2.2, 2.3 Compliant

Encoding/Decoding

Video Codec

JPEG2000 based visually lossless video compression algorithm

Audio Codec

LPCM, Native AES67

Bit Rates

50 to 800 Mbps

Latency

Ultra-Low Latency Sub-Frame (visually lossless video)

~2ms @ 1080p60 & 4K60 4:4:4

~4ms @ 1080p30 & 4K30

Streaming Protocols

IP, UDP, TCP, ICMP, IGMP

Copy Protection

HDCP 2.2, 2.3 AES-256 Encryption

Video

Maximum Resolutions

High Dynamic Range (HDR)
4K60 4:4:4 HDR 8 bit
4K30 4:4:4 HDR 12 bit
1080p60 4:4:4 HDR 12 bit
1080p30 4:4:4 HDR 12 bit
Supports HDR10, HDR10+, HLG, Dolby Vision

Input Signal Types

1x HDMI capable of receiving source input video formats up to 4K60 4:4:4

Audio

Input Signal Types

HDMI Audio and Bluetooth® Stereo Audio

• 1 digital input de-embedded from HDMI

• 1 Bluetooth® Stereo Audio input (A2DP)

Output Signal Types

HDMI Digital Audio (NLPCM pass-through), Native AES67 Network Audio

• 1 digital audio output via HDMI
• 1 Native AES67 digital audio output (up to 2 channels)

Digital Formats

Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels.

Analog Formats

Stereo 2-channel

Analog-To-Digital Conversion

24-bit 48 kHz

Digital-To-Analog Conversion

24-bit 48 kHz

Native AES67

24-bit 48kHz

Analog Output Volume Adjustment

-80 to +20 dB






Communication & Control of External Devices

Bluetooth® Profiles

A2DP - Stereo Audio is streamed from a Bluetooth® device and embedded into the AV (HDMI) stream and/or simultaneously onto the AES67 network

HFP (Hands Free Pro­file) - bi-directional pairing to a cell phone for call bridging

Bluetooth® Pairing Button

Blue LED: Pairing Status

Bluetooth® Range

10m (30ft) minimum. Typical Range is 14 - 23m  (46 - 75ft)

HDMI

HDCP 2.2, 2.3, EDID

Connectors

LAN

8-pin RJ-45 connector, female; 100BASE-TX / 1000BASE-T

Ethernet port / PD port

POE (IEEE 802.3af)

HDMI INPUT

(1) HDMI Type A connector, female; HDMI digital video/audio input

Power

Power Consumption

12 W typical

Environmental

Cooling

Convection / no fan ( no moving parts )

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% RH (non-condensing)

Heat Dissipation

25 BTU/hr

Acoustic Noise

0 dBA

Form Factor

Dimensions

Height: 4.07 in. (103.4 mm)

Width: 3.61 in. (91.8 mm)

Depth: 2.25 in. (57.2 mm)

Weight

1.0 lb (0.45 kg)

Compliance

CE, FCC, C-tick, RoHS, WEEE
