Visionary Solutions DuetE5-WP-BT – 4K60 Wall Plate Encoder, Bluetooth

Product Overview

The Visionary Solutions DuetE5-WP-BT is a 4K60 4:4:4 AV over IP wall plate encoder that converges video, Dante/AES67 network audio, and built-in Bluetooth audio bridging in a 2-gang Decora-style faceplate. Built on the 5-Series PacketAV platform with sub-frame latency, it suits conference room installation, lectern and floor-box source points, and enterprise AV over IP integration. A single PoE-powered category cable carries everything — video, audio, and control.

Product Description

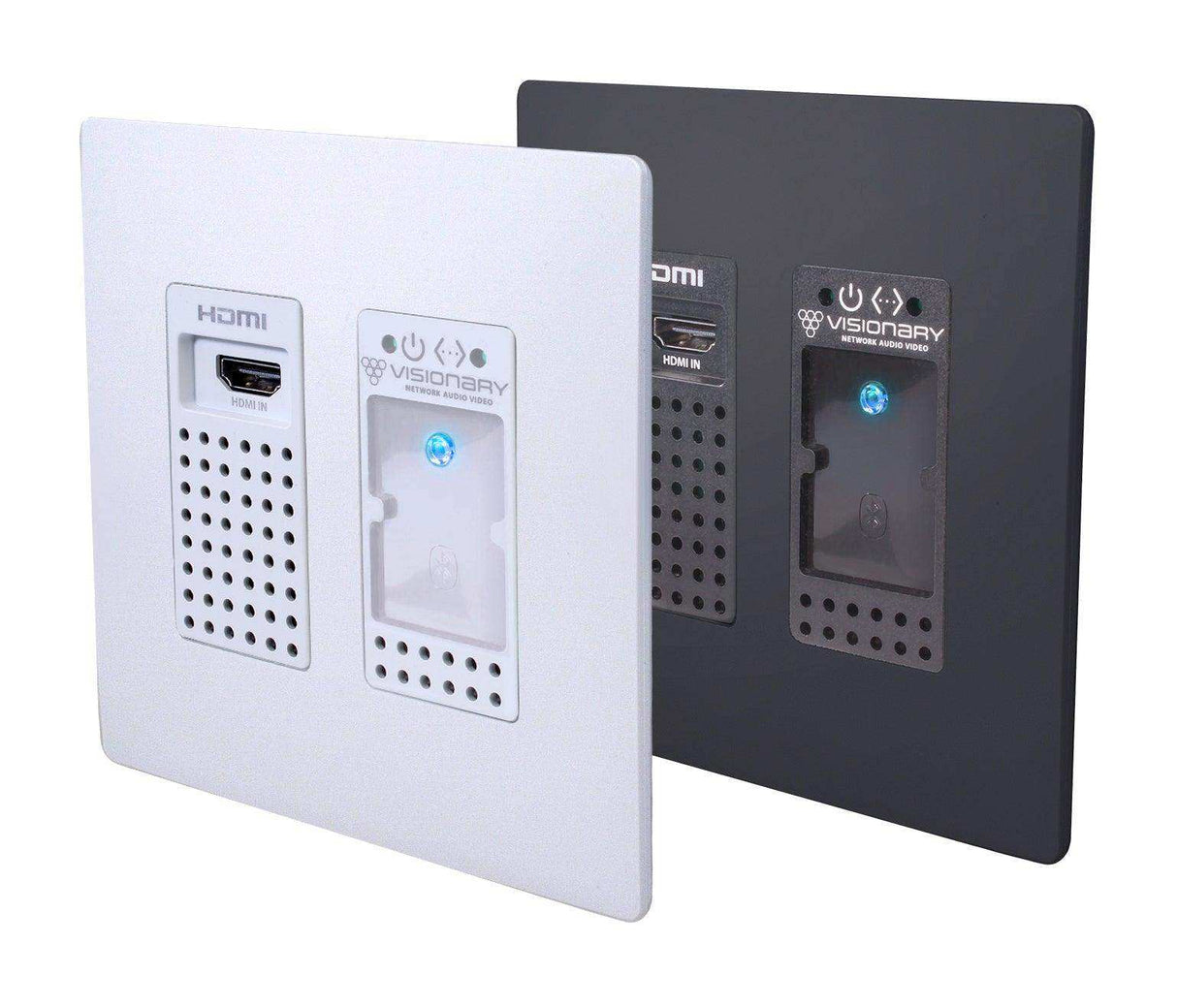

The DuetE5-WP-BT mounts in a standard 2-gang US or UK back box — wall, tabletop, lectern, or floor box — with a 45-degree exit RJ-45 connector that preserves cable bend radius inside shallow electrical enclosures.

The HDMI input accepts sources up to 4K60 4:4:4, encoded with a JPEG2000-based visually lossless codec at approximately 2 ms sub-frame latency — fast enough for live presentation, image magnification, and interactive applications. Bluetooth 5.0 supports A2DP media streaming and the Hands-Free Profile, bridging a presenter's phone or laptop audio bi-directionally into a web conference soft codec or onto the Dante network without separate Bluetooth hardware. A single-button pairing workflow with LED status offers Manual, Auto, and Private modes, and the button can be disabled under third-party control for restricted environments. A full-motion MJPEG substream provides preview and monitoring feeds without touching the primary 4K60 stream. VLAN tagging isolates AV traffic on the corporate network, and enterprise security includes AES-256 stream encryption, 802.1x, HTTPS, and SSH. Video and audio route independently across the network, and mass configuration via CSV through the embedded web UI accelerates large rollouts. The encoder is fanless and silent at 12 W typical. If Bluetooth is not required, the DuetE5-WP wall plate encoder provides the same 4K60 Dante platform; for a USB-C laptop input, see the DuetE5-WP-C-BT.

Key Features

• 4K60 4:4:4 Video Encoding — Full 4:4:4 color sampling at 60 frames per second preserves fine text and graphics for demanding presentation content.
• Sub-Frame Latency — Approximately 2 ms at 1080p60 and 4K60 4:4:4 keeps live camera and presenter video in sync with the room.
• Bluetooth 5.0 Audio Bridge — A2DP streaming and HFP bi-directional smartphone bridging feed wireless audio into the AV stream or Dante network for soft-codec conferencing.
• Dante/AES67 Integration — Up to 4 channels of network audio embedding and de-embedding connect directly to professional audio systems and DSPs.
• Single-Cable PoE Installation — One category cable delivers power, 4K60 video, Dante/AES67 audio, and control to the wall plate.
• MJPEG Preview Substream — Full-motion preview feeds support monitoring and control system thumbnails without impacting the main stream.
• One-Button Pairing with LED Status — Manual, Auto, and Private modes, with a disable option for controlled environments.
• Enterprise Security — AES-256 stream encryption, 802.1x authentication, HTTPS secure API, and SSH protect converged AV/IT networks.
• Mass Configuration — CSV-based discovery and bulk configuration through the embedded web UI speeds multi-room deployment.
• Fanless, Silent Operation — Convection cooling with zero acoustic noise suits acoustically sensitive meeting spaces.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

What decoders pair with the DuetE5-WP-BT?
It is part of the PacketAV 5-Series platform and streams to 5-Series decoders over any industry-standard Gigabit IP network — enterprise LAN or a dedicated AV network.

How is the DuetE5-WP-BT different from the DuetE-WP-BT?
The 5-Series DuetE5-WP-BT encodes up to 4K60 4:4:4 with approximately 2 ms sub-frame latency and AES-256 encryption; the previous-generation DuetE-WP-BT tops out at 4K60 4:2:0 with about one frame of latency.

How is it powered and installed?
Standard PoE (IEEE 802.3af) over a single category cable. It fits a standard 2-gang US or UK back box with no modification and mounts into Decora-style wall plates in walls, floor boxes, table boxes, or lecterns.

Can Bluetooth audio reach my Dante system?
Yes. The Bluetooth bridge embeds wireless audio into the AV stream and/or simultaneously onto the Dante/AES67 network, including bi-directional phone call bridging via the Hands-Free Profile.

Does it require a special network switch?
No fiber or 10 Gigabit switching is required. The encoder runs over standard CAT5e/6 cabling and Gigabit switches with IGMP multicast support.

How is it controlled?
Vision Lite control software, third-party drivers for Crestron, QSC, Symetrix, and RTI, and a full API for qualified system integrators.
